Quad Band GSM GPRS Module SIM900 Wifth FOTA Function
Negotiable
MOQ: 300 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SIMCOM
Model Number:
SIM900
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zte Wireless rf Receiver Module Cdma 1x Usb Wireless Modem Mc8332 Low CostNegotiableMOQ: 1 Piece -
3g EVDO Rev.A 800MHz, 1900MHz Band and Half-Size Mini PCI Standard Interface Module Mc2716NegotiableMOQ: 1 Piece
-
Cdma Module Zte Module Mc8332 CDMA2000 1X 800MHz MODEMNegotiableMOQ: 1 Piece
-
Cdma Usb Evdo Modem UnlockingUS$ 17.5 - 20MOQ: 1 Piece
-
Cdma Usb Modem External AntennaUS$ 17.5 - 20MOQ: 1 Piece
Place of Origin
China
Brand Name
SIMCOM
Model Number
SIM900
Product Description
Specifications
1. High quality
2. Competitive price
3. Fast delivery
4. Excellent service
SIM900

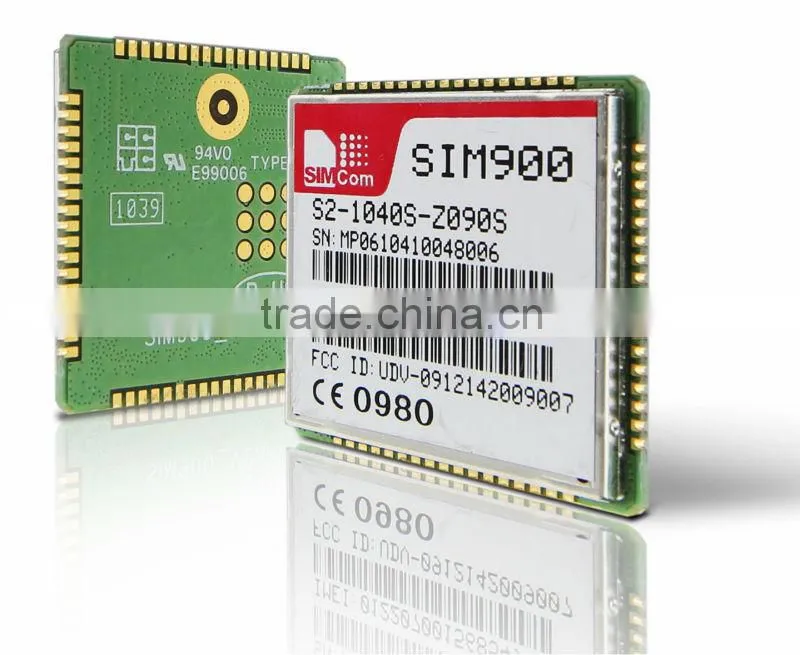

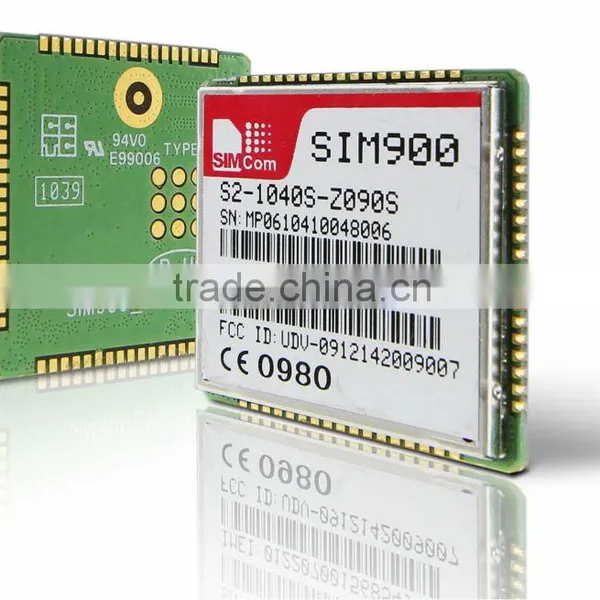

SIMCom presents an ultra compact and reliable wireless module-SIM900. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions.
Featuring an industry-standard interface, the SIM900 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x 3 mm, SIM900 can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.
General features
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
– Class 4 (2 W @850/ 900 MHz)
– Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 24*24*3mm
* Weight: 3.4g
* Control via AT commands (GSM 07.07 ,07.05 and
SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.2 ... 4.8V
* Low power consumption: 1.0mA(sleep mode)
* Operation temperature: -40°C to +85 °C
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
– Class 4 (2 W @850/ 900 MHz)
– Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 24*24*3mm
* Weight: 3.4g
* Control via AT commands (GSM 07.07 ,07.05 and
SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.2 ... 4.8V
* Low power consumption: 1.0mA(sleep mode)
* Operation temperature: -40°C to +85 °C
Specifications for Fax
* Group 3, class 1
* Group 3, class 1
Specifications for Data
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
Specifications for SMS via GSM/GPRS
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
Software features
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP
Special firmware
* FOTA
* MMS
* Java (cooperate with Iasolution)
* Embedded AT
* Embedded AT
Specifications for Voice
* Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
– Half rate (HR)
– Full rate (FR)
* Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
– Half rate (HR)
– Full rate (FR)
Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC
Compatibility
* AT cellular command interface
* AT cellular command interface
Certificates
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* ICASA
* REACH
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* ICASA
* REACH
Carrier Approvals
* AT&T
* NCC
* Anatel
* Rogers
* Orange
* Vodafone
