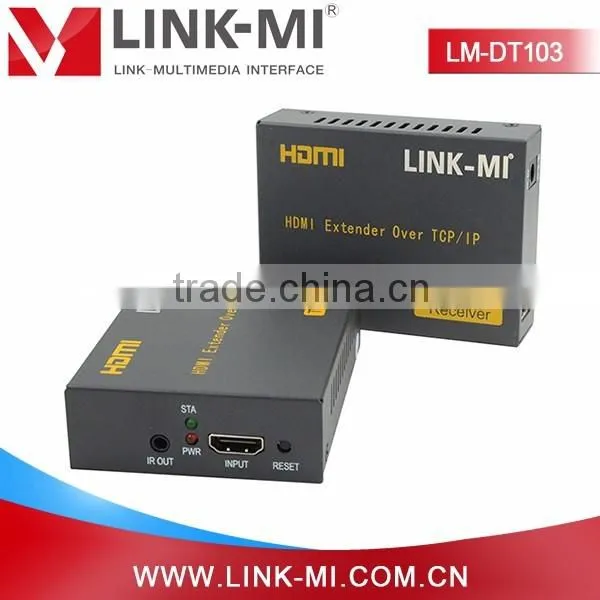

LINK-MI LM-DT103 Transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable
New Arrivals
Skype:linkmi55
Model Number: LM-DT103
Keyword: 120m over a single CAT5e/6 cable
The LM-DT103 extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080p. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1. Transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable;
2. Support video resolution up to 1920*1080P@60Hz;
3. Support one to many application with Ethernet switch;
4. Compliance with HDMI 1.3 and HDCP 1.2 standard;
5. High compatibility, can auto-match source and display device;
6. Built-in automatic adjustment system, make the image smooth, clear and stable;
7. Built-in ESD protection system;
8. Simple to install, plug and play;

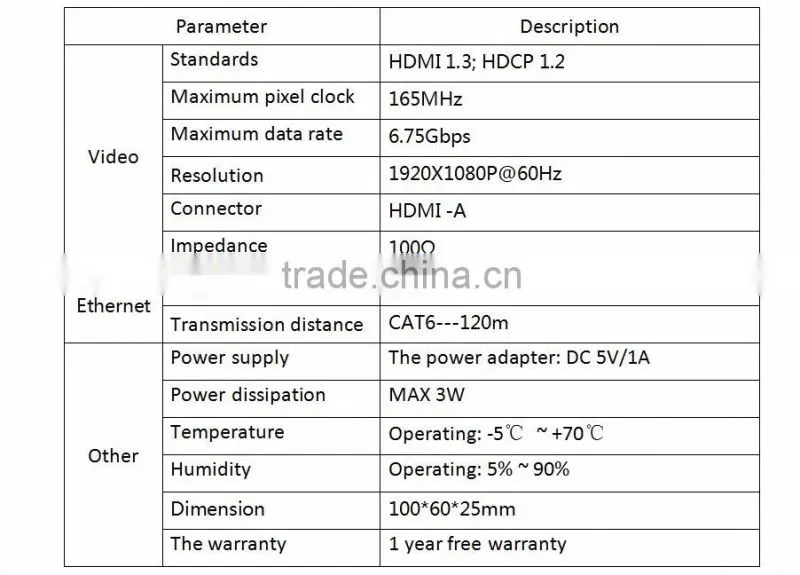

Specifications

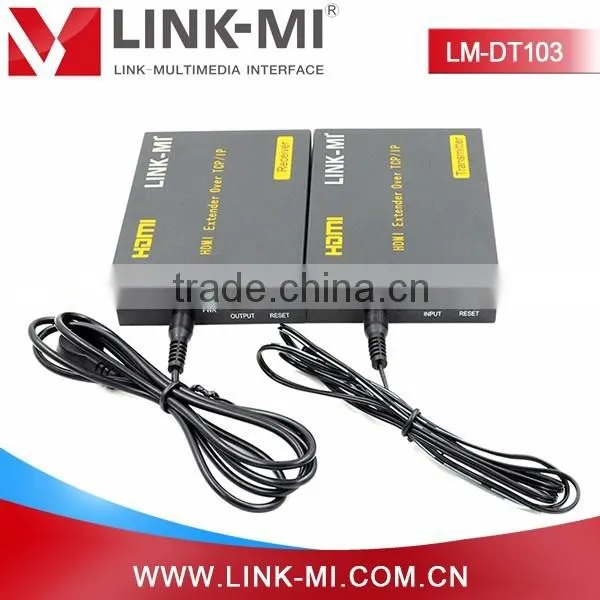

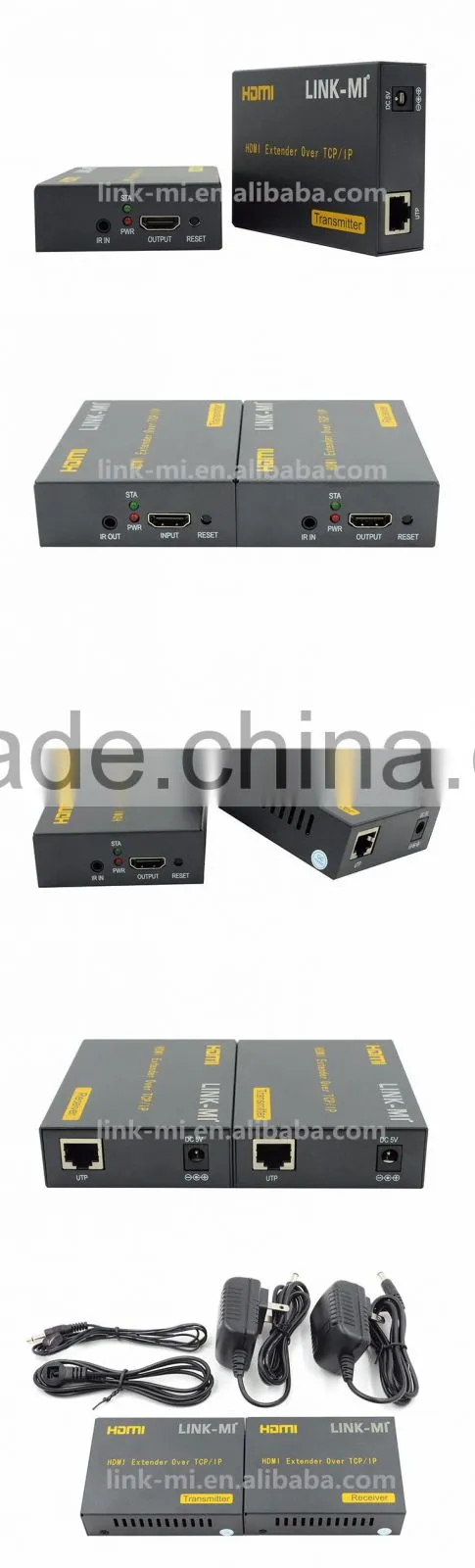

Product Demonstration

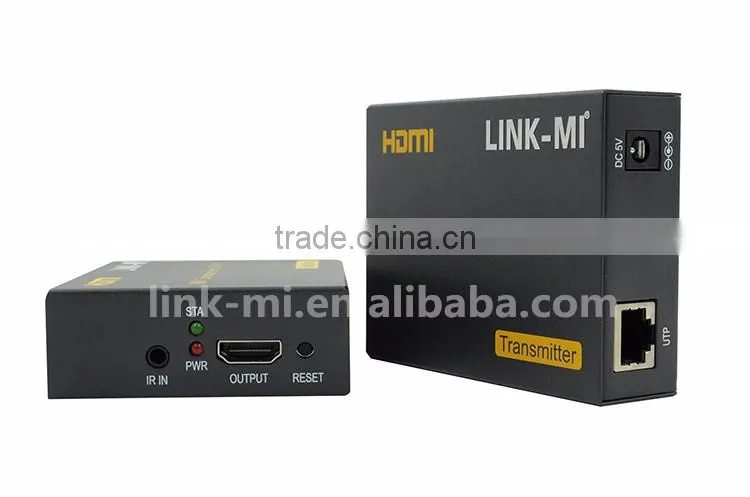

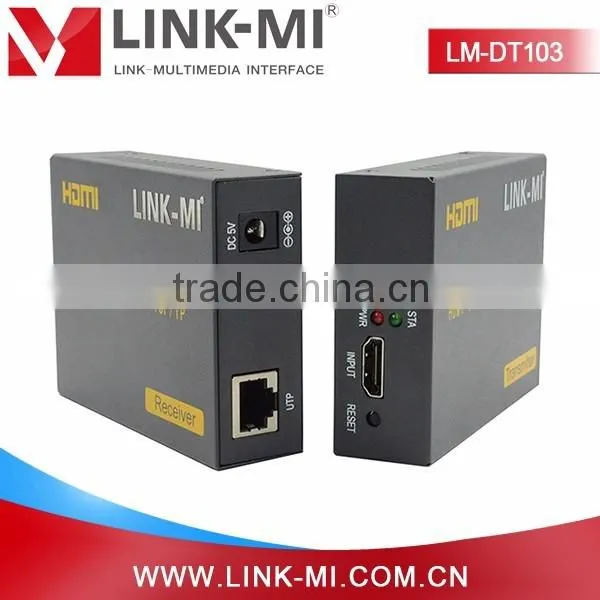

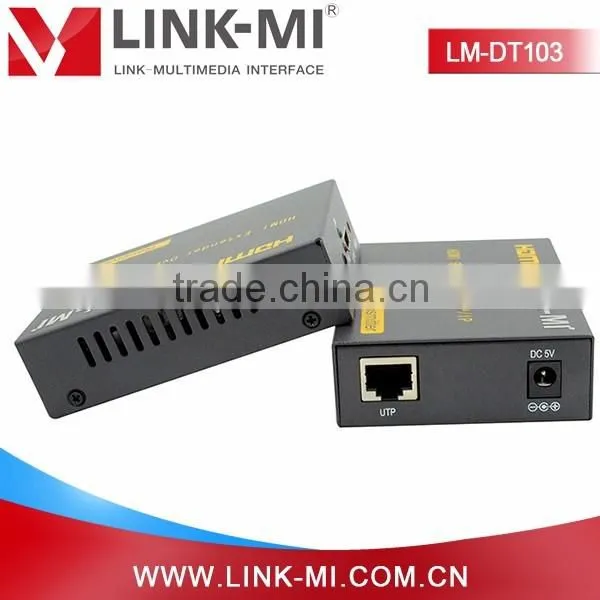

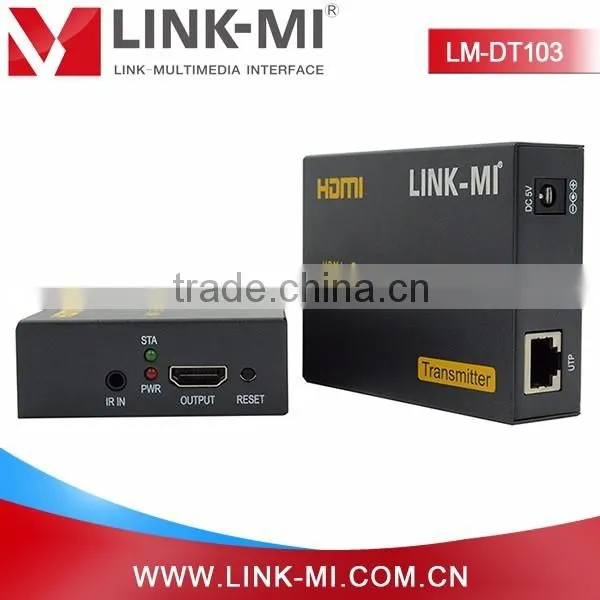

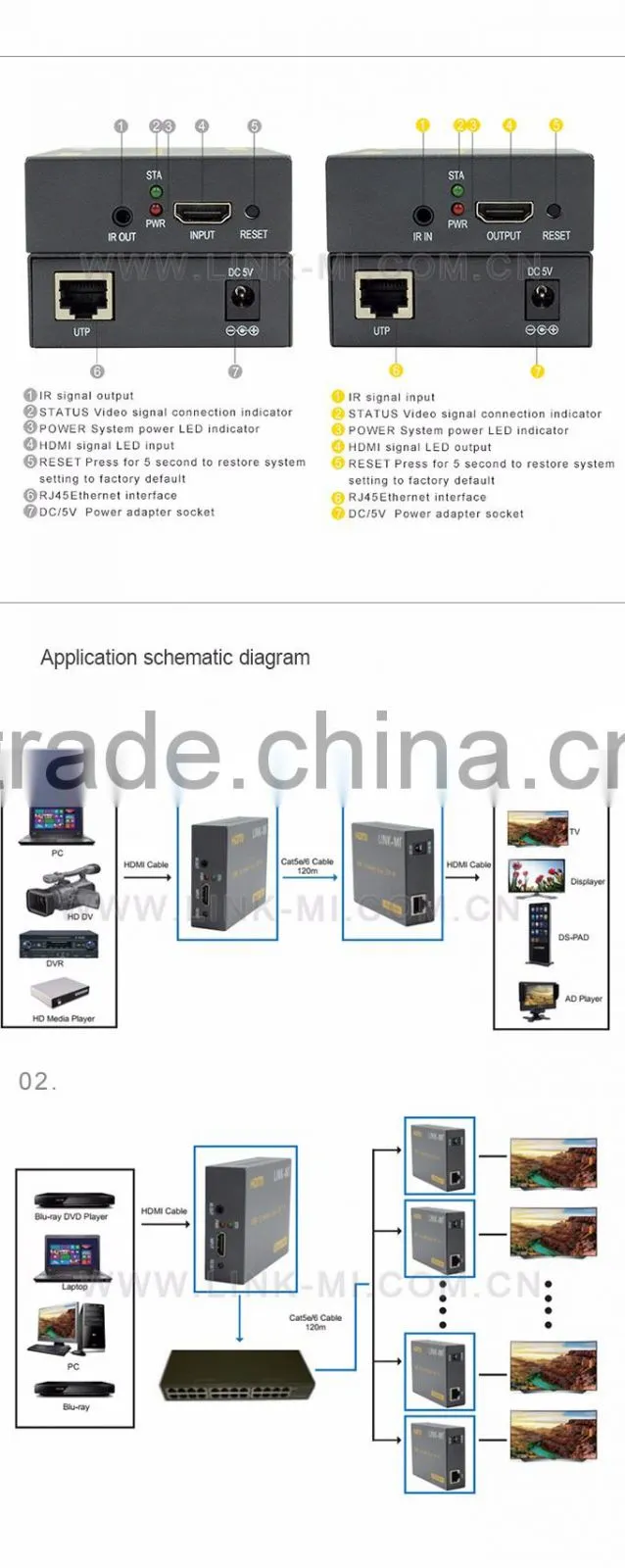

Panel Descriptions

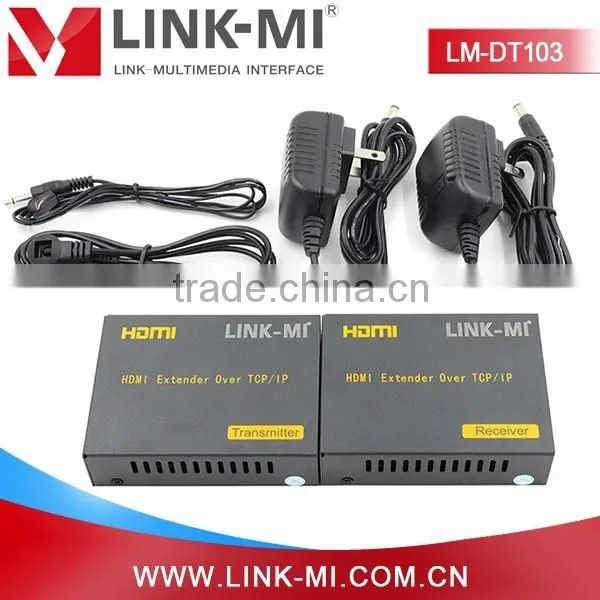

Packing Contents:
1. HDMI transmitter ……. 1 pc
2. HDMI receiver ……….. 1 pc
3. Power adapter ……….. 2 pcs
4. User manual ………… 1 pcs
Installation
1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3.Connect the HDMI output port of receiver to the display device with HDMI cable,
4.Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT6 cable.
