20-19mm Blue Zinc Plated Metal Ball Socket M8 With Safety Clip

US$ 0.264 - 0.305 MOQ: 5000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

JL06

Ningbo Dingth Gas Spring Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JL

Model Number JL06

Specifications

1.Ball socket to fit M8
2.Suitable for Diam 20mm ball stud
3.gas spring metal Ball socket effective length 19mm

20-19mm blue zinc plated metal Ball Socket M8 with safety clip

We have attained ISO9001 certification and also have been audited by the SGS Group.
Material: Low carbon steel orMild stell, Q235.
Inner parts are full of lubricate oil, induction hardened balls are wear resistant.
Retaining ring inside & safety clip ouside
Surface protection: Blue zinc plating
Optional: Electroplated, Phosphatized and oiled, galvanized in white or yellow or blue or black, passivated by chrome or nickle.
Color: military green.
A wide range of gas spring metal ball socket in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.

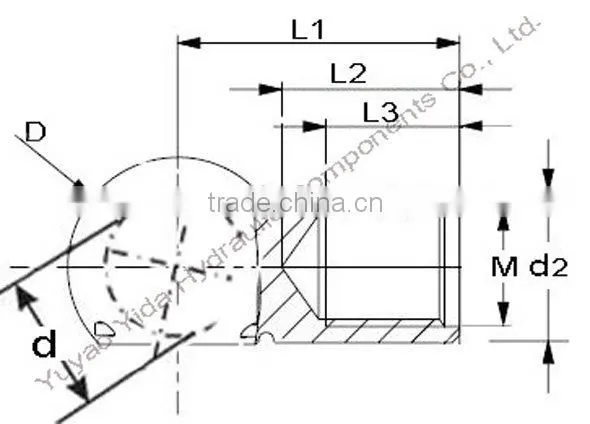

More photos & Drawing ABOUT Gas spring metal Ball socket:

Metal Ball Socket with clip for gas spring (dimension in mm)
Type	D	d	M	d2	L1	L2	L3
JL01	15	10	M6	9	15	10	9
JL02	16	10	M6	10	18	12	11
JL03	16	10	M6	10	19	13.5	13
JL04	20	13.5	M10	13	23	15.5	14.5
JL05	19	13	M8	13	30	21	20
JL06	20	13	M8	13	19	12	11
JL07	19	13	M8	13	30	18	17
JL08	14	16	M10	16	25	16	14
JL09	15	10	M6	10	25	18	18
JL10	24	16.5	M12	17	29	20	18
JL11	17	10	M8	10	21	14	13
