Factory whoelsale Switching modes:panel buttons, local IR, RS232 and smart phone Support 3D with wifi HDMI Matrix 8x8

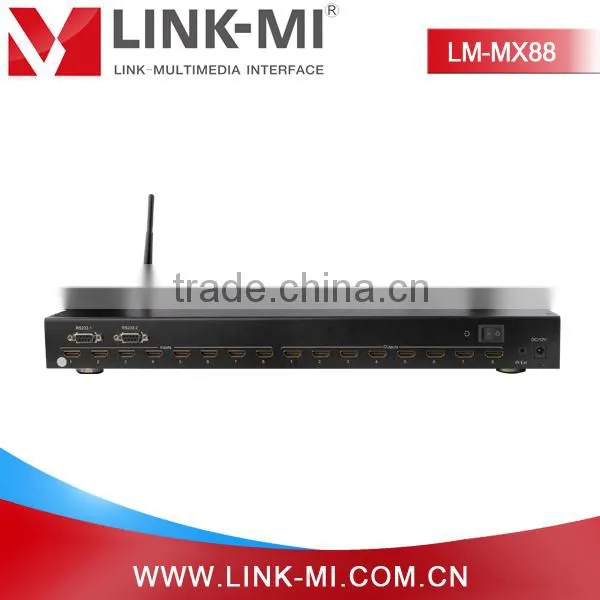

Model No.: LM-MX88
Name: Factory whoelsale Switching modes:panel buttons, local IR, RS232 and smart phone Support 3D with wifi HDMI Matrix 8x8
Introduction:
LM-MX88 8*8 HDMI Matrix Switcher With WIFI, Supports HD 1080P @60Hz and 3D Video, is a high quality and suitable to using in engineering project, design as 1U'Srack for easy installation. This 8*8 HDMI Matrix Switcher with local IR, RS232, Smart Phone, Panel Buttons switching modes, have 8 HDMI Input ports and 8 HDMI Output ports, and each port supports HDMI or DVI inputs.
Features:
• Any eight Sources to Any eight Displays,Each port supports HDMI or DVI inputs.
• The HDMI input is compensated, clock/phase adjusted and jitter free so all the user sees is a high quality HDMI signal.
• Independent switch able EDID function for choosing which resolution to display.
• Support high definition resolutions 1080p, 1080i, 720p and other standard video formats.
• Supports LPCM 7.1 channel output from each of the independent HDMI ports.
• Switching modes: panel buttons, local IR, RS232 and Smart phone.
• HDCP compliant.
• 1U'srack design for easy installation.
• Support 3D.
• With WIFI .
Specifications:
Operating Temperature Range |
-5 to +35Degree Celsius ( +23 to +95Degree Fahrenheit ) |
Operating Humidity Range |
5 to 90%RH ( No Condensation ) |
Video Bandwidth |
225 MHz / 6.75 Gbps |
Video Format Supported |
Up to 1080p @ 60Hz @ 36b/pixels, support 3D |
Connectors |
HDMI Receptacle Power connector terminal Power DC receptacle IR Extender |
Transmission Distance |
1080p 15m over HDMI cable |
Power supply |
110-240V/ 12V DC Power supply |
Power Consumption |
24 watts |
Enclosure |
Cold-Rolled ( Cold Rolled ) Steel |
Dimensions |
W436.9*H211*T44.5mm |
Weight |
2800g |

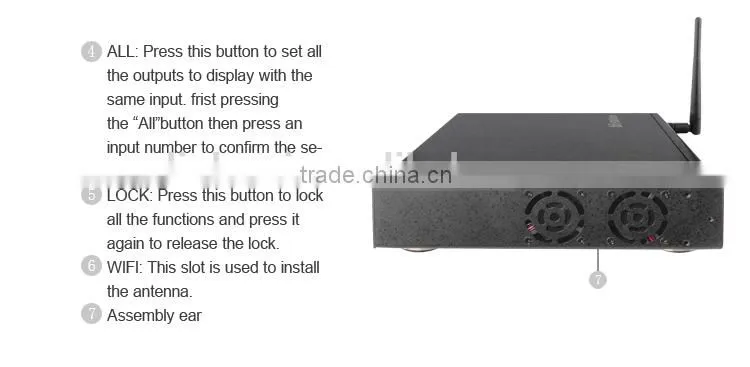

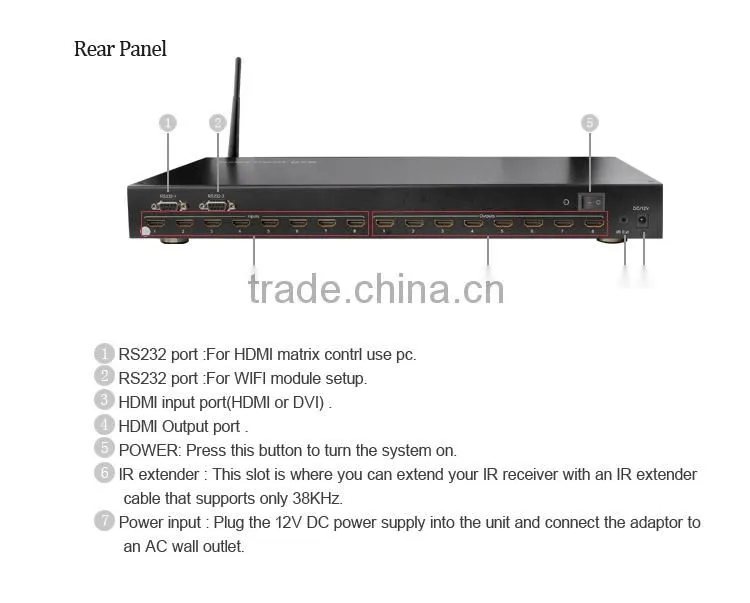

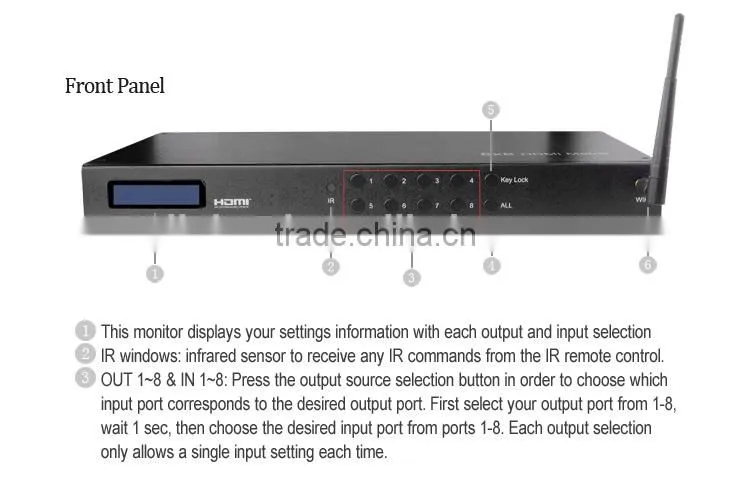

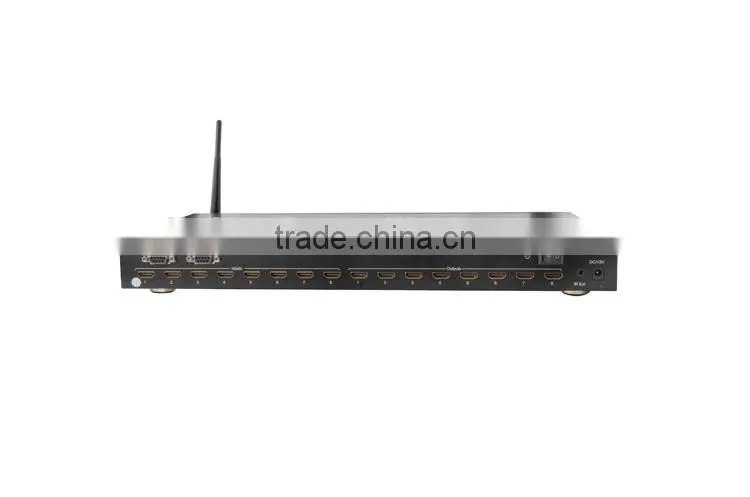

Panel Description:

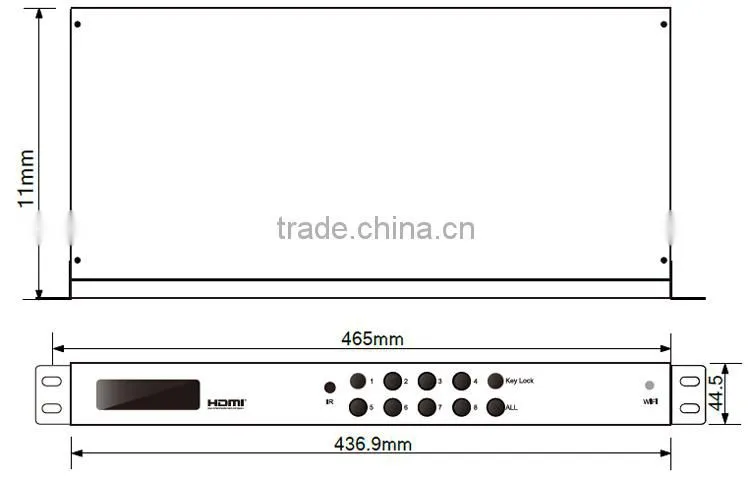

Dimensional Drawing:
Connection and Operation:
1) Connect the HDMI input sources into 8x8 HDMI Matrix and note the input chosen.
2) Connect HDMI OUT of 8x8 HDMI Matrix to display equipment.
3) Connect IR-RX cable into IR-RX Ext port on the receiver and affix the IR receiver in direct line of site with the hand held remote control.It is recommended to affix the receiver on the display frame /bezel or the display stand.
Note: Do not affix the emitter until the placement is tested.
4) Power up all units, the matrix,Receiver, sources and displays.
5) Use remote or select the button on the front panel to choose the desired input source.

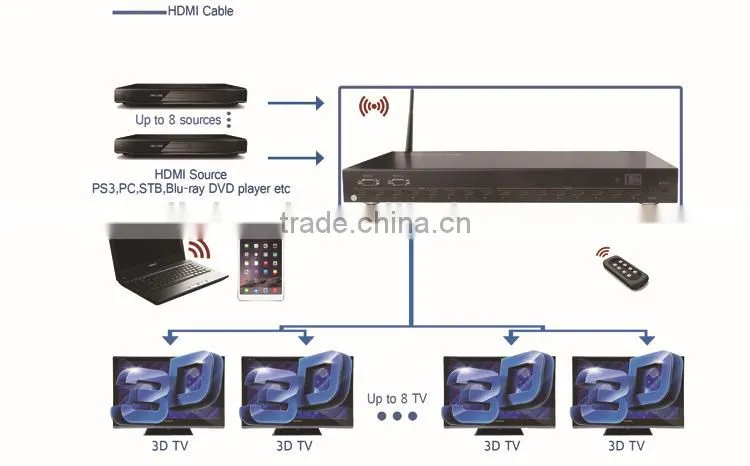

Connection Diagram:
Packing Information: Factory whoelsale Switching modes:panel buttons, local IR, RS232 and smart phone Support 3D with wifi HDMI Matrix 8x8
1) Main Unit: 8*8 HDMI Matrix Switcher
2) Power supply DC 12V 3A
3) Remote Controller
4) IR-RX cable x 1PCS
5) M3x5 Screw x 6PCS
6) Operating Instructions
7) Mounting ear
8) RS232 cable
Switching modes:panel buttons, local IR, RS232 and smart phone Support 3D with wifi HDMI Matrix 8x8
