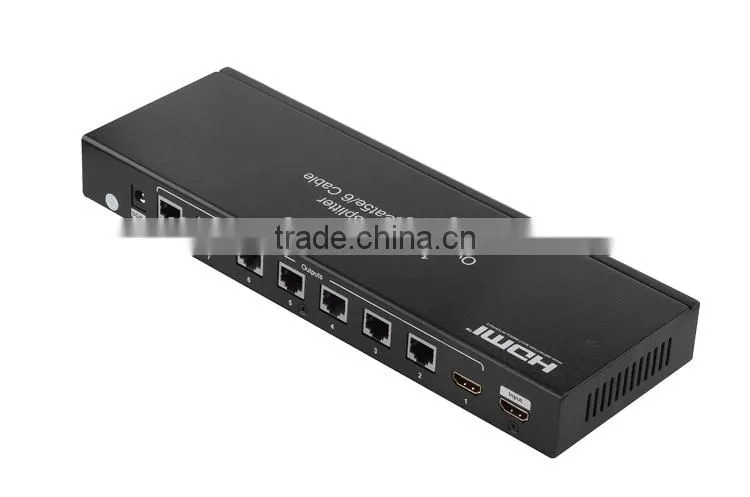

LINK-MI LM-SP20 High Definition 1080p 1 In 8 Out HDMI Video Audio Splitter
Name: 2015 Hot Model OEM HDMI Splitter 1*8 50m over single Cat/6 cable
Model No.:LM-SP20
Introduction
LM-SP20 HDMI Splitter have 1 HDMI Input Port, 1 HDMI output Port and 7 RJ45 Output Ports, distributes 1 HDMI input to 1 HDMI output and 7 RJ45 output. This HDMI Splitter can transmits the distance up to 50m over single cat5e/6 cable, it supports 1080p, 3D HDMI Video format and 1080*1024 VGA Video format.
Features
(1). Distributes 1 input HDMI signal to 1 HDMI output and 7 UTP method HDMI outputs.
(2). Transmission distance up to 50m under 1080P@60Hz over Single Cat5e or Cat6 cable
(3). Supports High Definition Audio : Dolby TrueHD, Digital Plus, DTS-HD Master Audio.
(4). Supports 30/36bit deep color display.
(5). Support 3D technology
(6). DC 5V power
Specifications
Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
Operating Humidity Range |
5 to 90%RH (No Condensation) |
Video Amplifier Bandwidth |
140MHz |
Input Video Signal |
0.5-1.0 Volts P-P |
Input DDC Signal |
5 volts p-p(TTL) |
Data transfer speed rate |
6.75Gbps(Maximum) |
Video Format Supported |
VGA:640x480,800x600,1024x768,1080x1024 DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P 3D video support |
Vertical Frequency range |
60Hz |
Support Video Color Format |
xv-YCC/deep color 36bit |
Support Audio Format |
DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD |
Transmission Distance |
1080P 8-bit 50m( If needed, HDMI extender is Optional ) Over single cat5e or cat6 cable/24AWG/Solid |
Power consumption |
19.5watts(Maximum) |
Dimension (L×W×H) |
L405xW155xH65mm |
Net Weight |
830g |

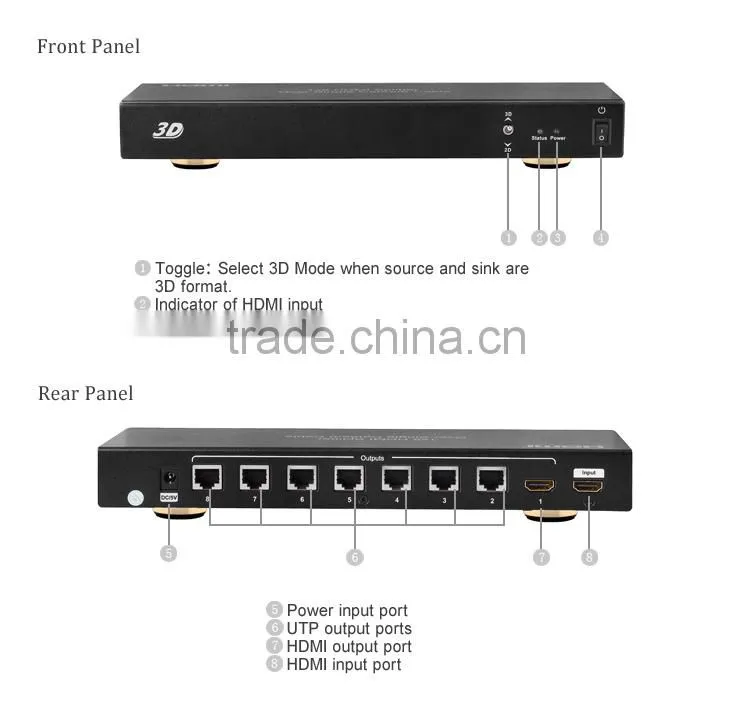

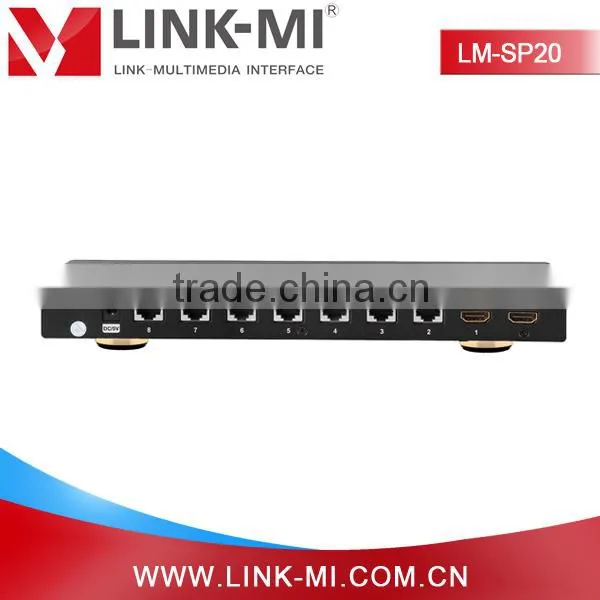

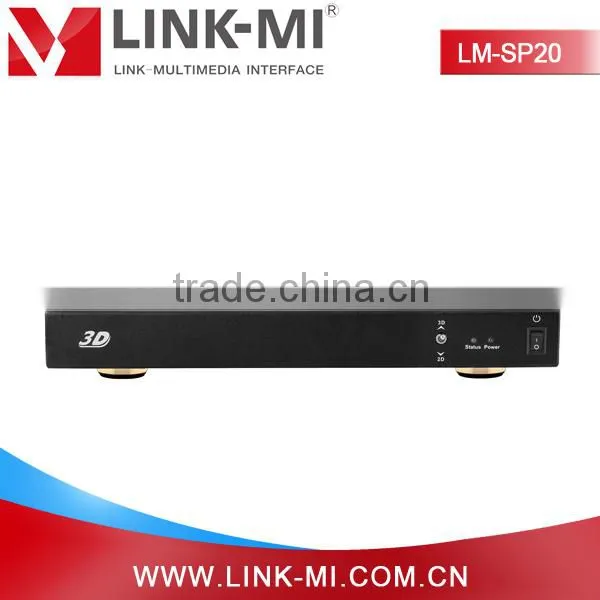

Panel Description
Connection and Operation
1) Connect the HDMI input source into HDMI splitter (Input cables are optional).
2) Connect single CAT-5E/6 cables to both the outputs (2 to 8)of HDMI splitter and inputs of Cat5e/6 receiver (The cable termination must follow the standard of EIA/TIA 568B,).
3) Connect the HDMI output (such as HD-LCD/HD-DLP) into the receiver(HDMI output)
4) Insert the DC side of 5v power supply into HDMI splitter and receiver then connect the AC side of the power supply into the wall outlet.
5)Turn on the power of HDMI splitter.
Important: Select 3D Mode when source and sink are 3D format.

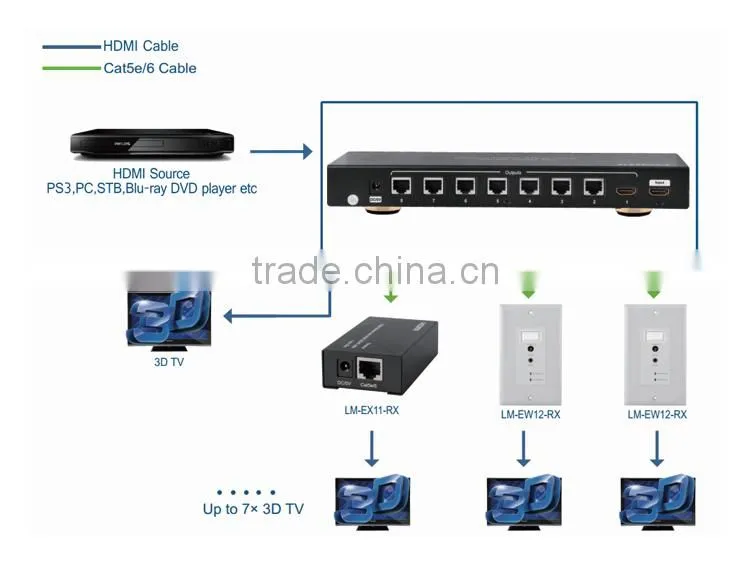

Connection Diagram

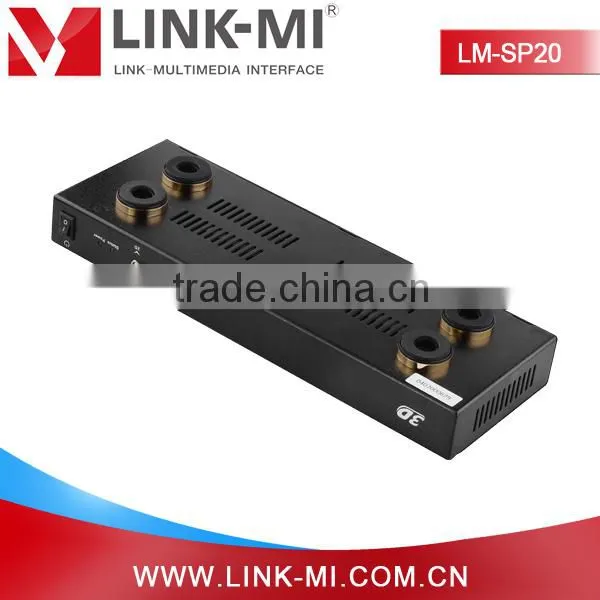

Product Picture
Packing Information
1) Main Unit. HDMI Splitter 1*8 50m over single Cat/6 cable
2) DC5V 4A Power Supply
3) Operating Instructions
