1080p to 1080i HD SDI Converter
♦ Support 3G/HD/SD SDI Signal Input/Looping Output
♦ Support 3G/HD/SD-SDI Audio De-embedded to Analog Stereo Audio Output
♦ Support External Analog Audio Inputs Embedded in HDMI
LINK-MI LM-PSH01 1080p to 1080i HD SDI Converter, SDI to HDMI Converter Box With DIP Switch Setting
Introduction
LINK-MI LM-PSH01 SDI to HDMI Converter is a dedicated SDI signal to HDMI converter, integrates FRCS ( Frames Rate Conversion System), SDI Receivers and HDMI Encoder, can convert the 3G/HD/SD SDI signals to HDMI high-definition video signals.
At the same time,LM-PSH01 SDI to HDMI Converter support de-embedded audio from 3G/HD/SD-SDI signal, output to HDMI and analog stereo ports.LM-PSH01 integrated up/down-conversion function, adaptive SDI signal input and selectable 1080p/1080i/720p output etc. LM-PSH01 SDI to HDMI Converter also can support external audio input, external analog audio inputs can be embedded in HDMI.

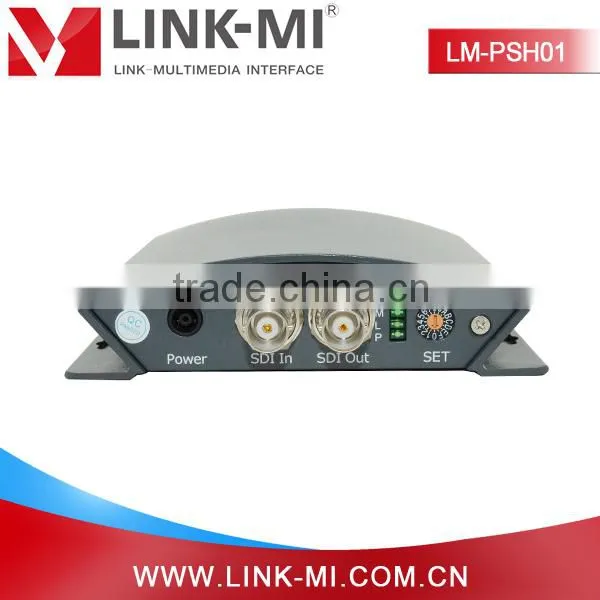

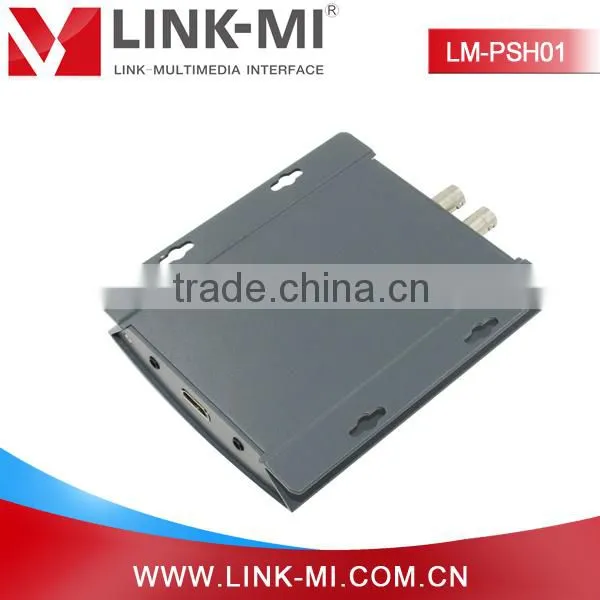

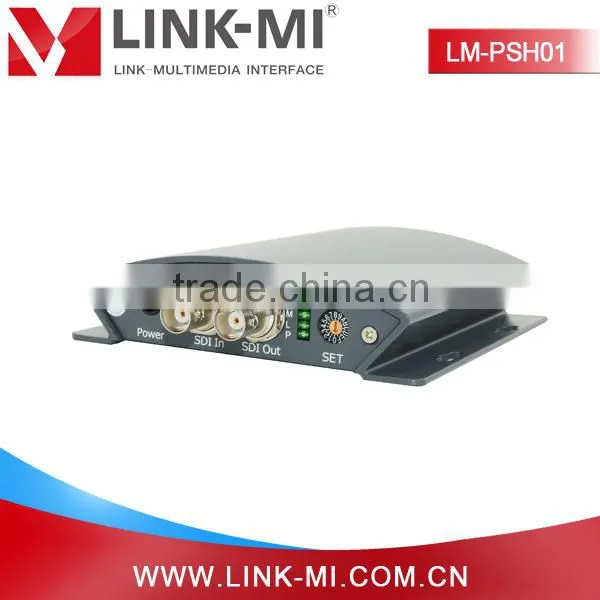

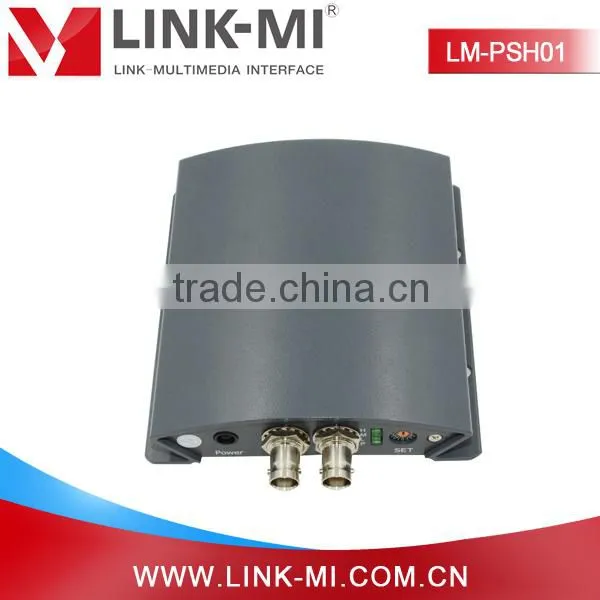

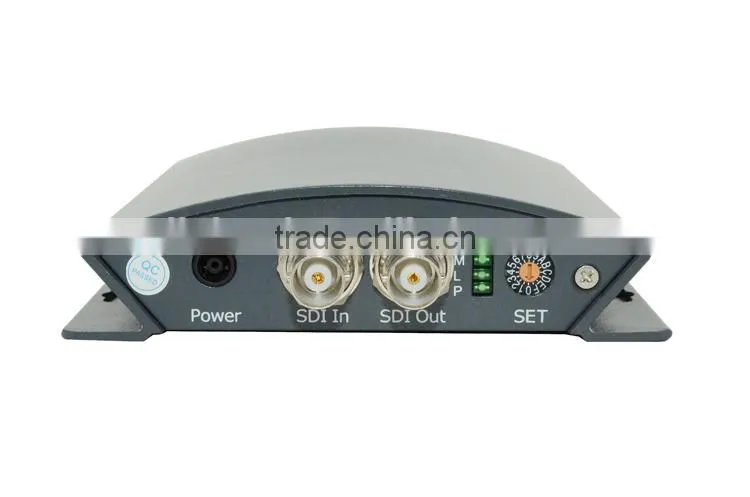

Product Picture
Model No.: LM-PSH01
Product Type: 1080p to 1080i HD SDI Converter
1080p to 1080i HD SDI Converter
Features
♦ Based on LINK-MI third-generation technology
♦ Supports 3G/HD/SD SDI Signal Input/Looping Output
♦ Supports 1080p/1080i/720p/480i/576i Video format
♦ Supports 1080PSF/ 720P 30/25/24Hz
♦ 1080P/1080I, 720P Frequency conversion output
♦ Supports 1080I/1080P to 720P Down-Conversion function
♦ Support PAL/NTSC/720P to 1080I/1080P Up-Conversion function
♦ Adaptively SDI Input signal
♦ SDI embedded audio can be de-embedded
♦ Support 3G/HD/SD-SDI audio de-embedded to analog stereo audio output
♦ Support external analog audio inputs embedded in HDMI
♦ Can be costomized
Specification
Name |
SDI to HDMI Converter |
|
Model No. |
LM-PSH01 |
|
SDI Input / Output |
Signal |
3G/HD/SD SDI |
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps-2.97Gbps |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Output |
Output Signal |
Analog Stereo Audio |
Impedance |
16Ω |
|
Connector |
Earphones |
|
HDMI Output |
Output Signal |
HDMI Signal |
Connector |
HDMI |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
100Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
|

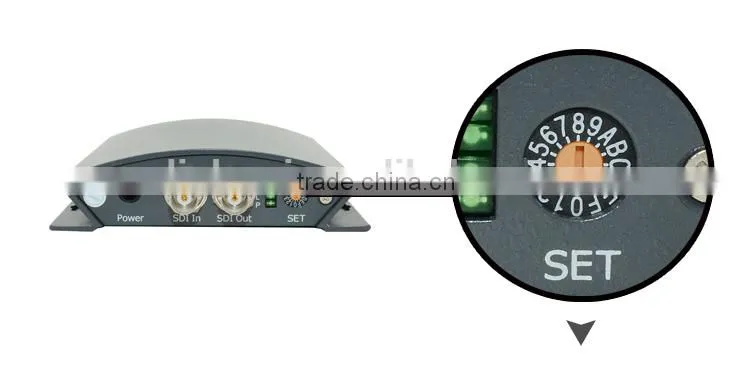

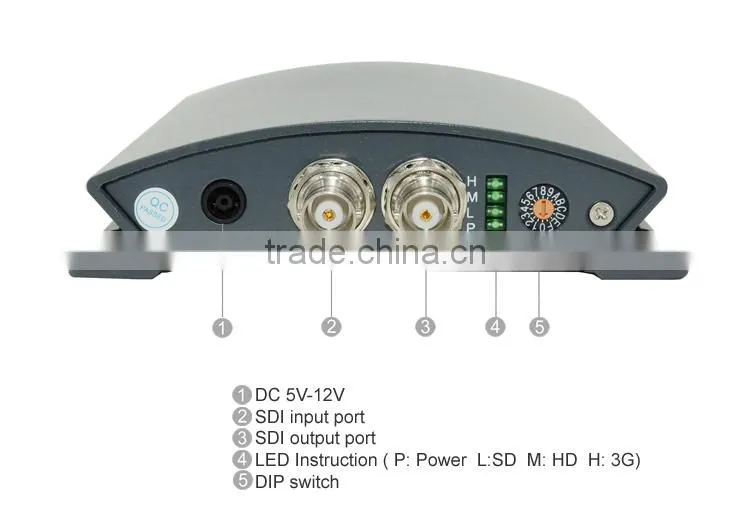

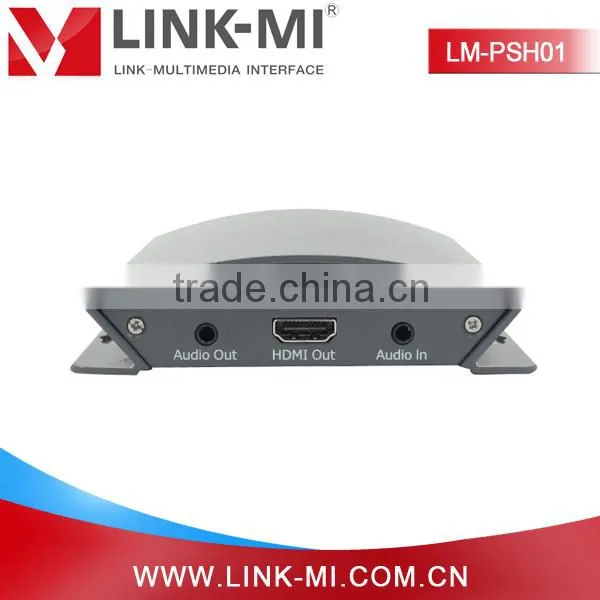

Panel Description
DIP Switch Setting
Code |
HDMI Output |
Audio |
0 |
1080I @50HZ |
SDI |
1 |
1080P @60HZ |
SDI |
2 |
1080P @50HZ |
SDI |
3 |
1080I @60HZ |
SDI |
4 |
1080P @30HZ |
SDI |
5 |
1080P @25HZ |
SDI |
6 |
720P @60HZ |
SDI |
7 |
720P @50HZ |
SDI |
8 |
720P @50HZ |
EXT |
9 |
720P @60HZ |
EXT |
A |
1080P @25HZ |
EXT |
B |
1080P @30HZ |
EXT |
C |
1080I @60HZ |
EXT |
D |
1080P @50HZ |
EXT |
E |
1080P @60HZ |
EXT |
F |
1080I @50HZ |
EXT |
SDI |
SDI Embedded audio |
|
EXT |
External audio input |
|

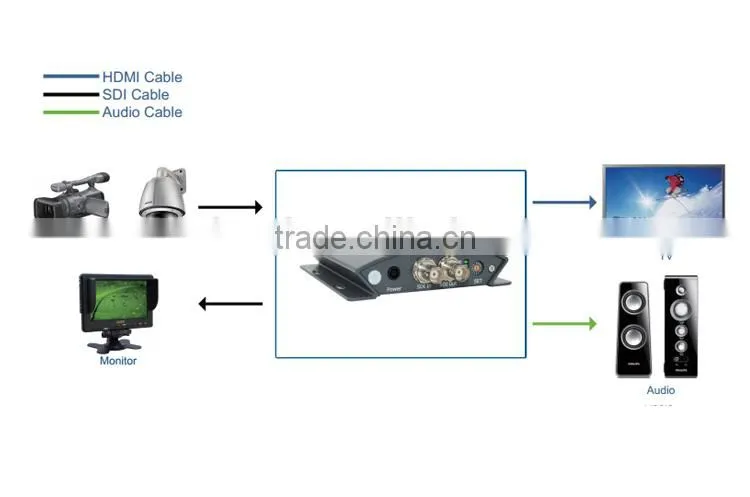

Wiring Diagram
Packing Contents: 1080p to 1080i HD SDI Converter
♦ Main Unit. 1pcs SDI to HDMI Converter
♦ 1pcs DC 5V Power Adapter
♦ 1pcs User Manual
