Specifications
ST/STC series synchronous alternators prices1.100% output
2.slight vibration
3.Factory price
4.Fast delivery

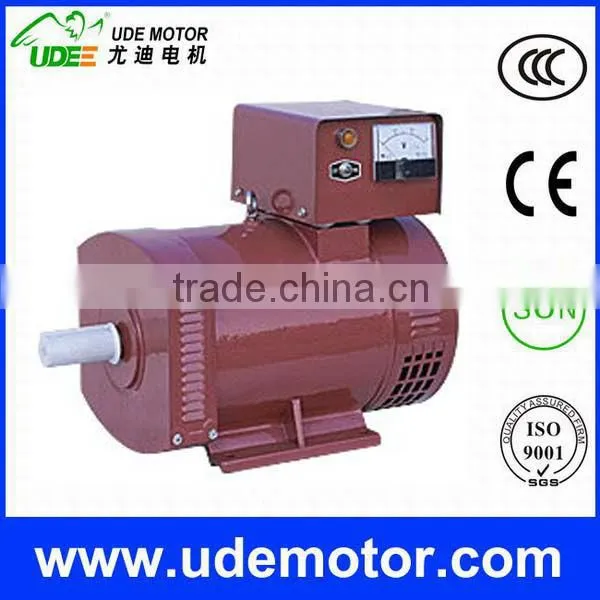

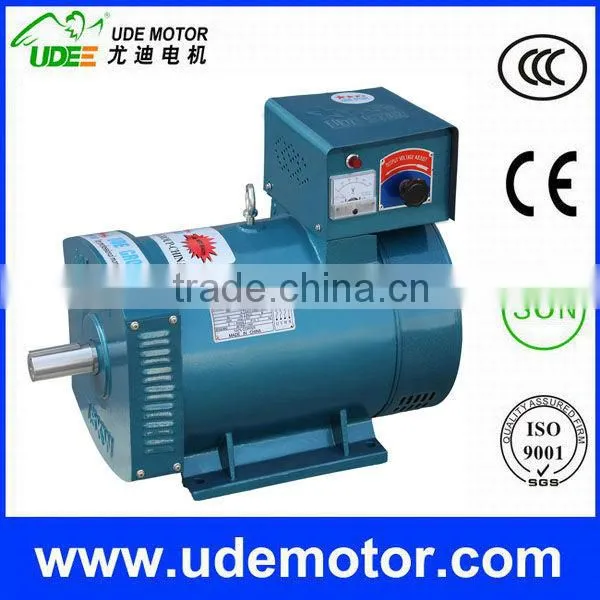

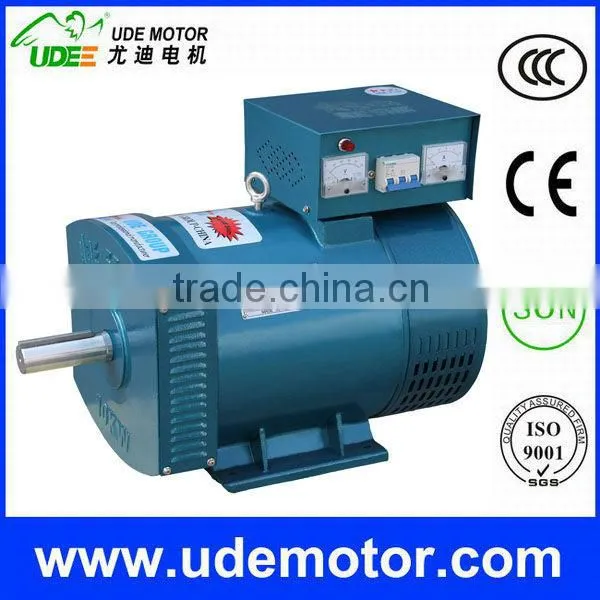

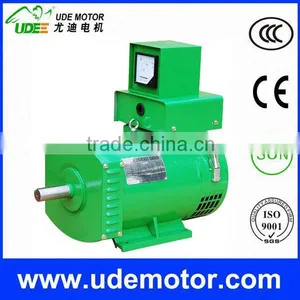

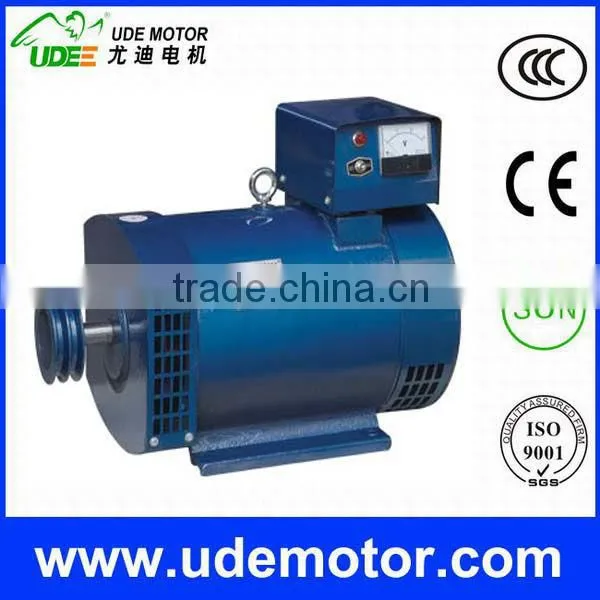

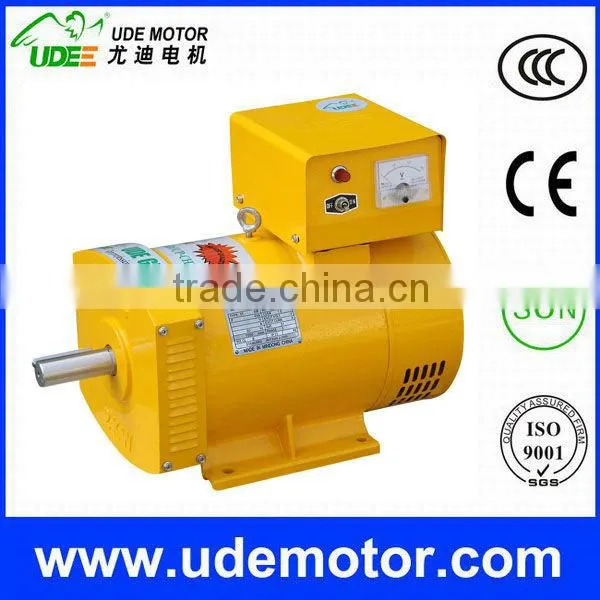

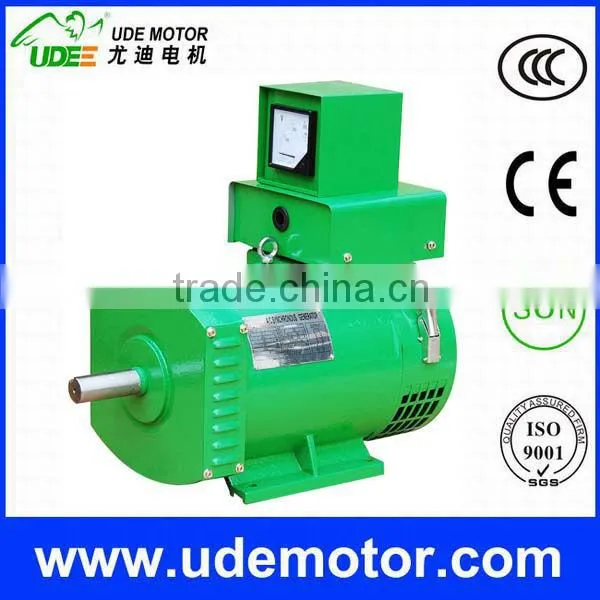

ST/STC series synchronous alternators prices
Features:
1. Type: single-phase/three phase A.C. synchronous alternators
2. Construction: drip-proof, sailent pole rotating field self-excitation and constant voltage type
3. Insulation: rotor insulation is of Class B, stator insulation is of Class E (or B)
4. Connection: star connection with neutral point
5. Dimension standard: IEC standard
6. Embossed on switch box, housing and front cover are available
Operating Conditions:
1. Altitude: not exceed 1000m
2. Ambient temperature: -15°C~40 °C
3. Relative Air Humidity
Use:
The ST/STC series alternators are mainly designed to serve as power generating unit of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages.
Techincal Data:
| ST Series Single Phase A.C. Synchronous Alternator | |||||||||
| Model NO. | Output | Current (A) | Voltage (V) | Power Factor | Pole Number | Speed | Frequency | ||
| (KW) | Series Connection | Parallel Connection | Series Connection | Parallel Connection | (cosφ) | (RPM) | (HZ) | ||
| ST-1 | 1 | 4.35 | 8.70 | 230 | 115 | 1 | 4 | 1500/ 1800 | 50/60 |
| ST-2 | 2 | 8.70 | 17.40 | ||||||
| ST-3 | 3 | 13.00 | 26.00 | ||||||
| ST-5 | 5 | 21.80 | 43.50 | ||||||
| ST-7.5 | 7.5 | 32.60 | 65.20 | ||||||
| ST-10 | 10 | 43.50 | 87.00 | ||||||
| ST-12 | 12 | 52.20 | 104.40 | ||||||
| ST-15 | 15 | 65.30 | 130.40 | ||||||
| ST-20 | 20 | 87.00 | 174.00 | ||||||
| ST-24 | 24 | 104.30 | 208.70 | ||||||
| ST-30 | 30 | 130.40 | 260.80 | ||||||
| ST-40 | 40 | 174.00 | 348.00 | ||||||
| ST-50 | 50 | 217.40 | 435.00 | ||||||

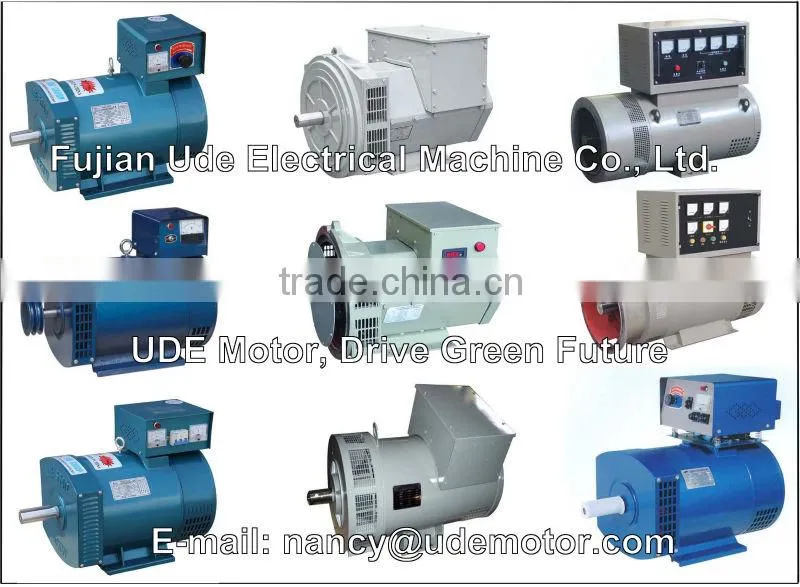

More Different Type Alternators for Choice:
Our Company:

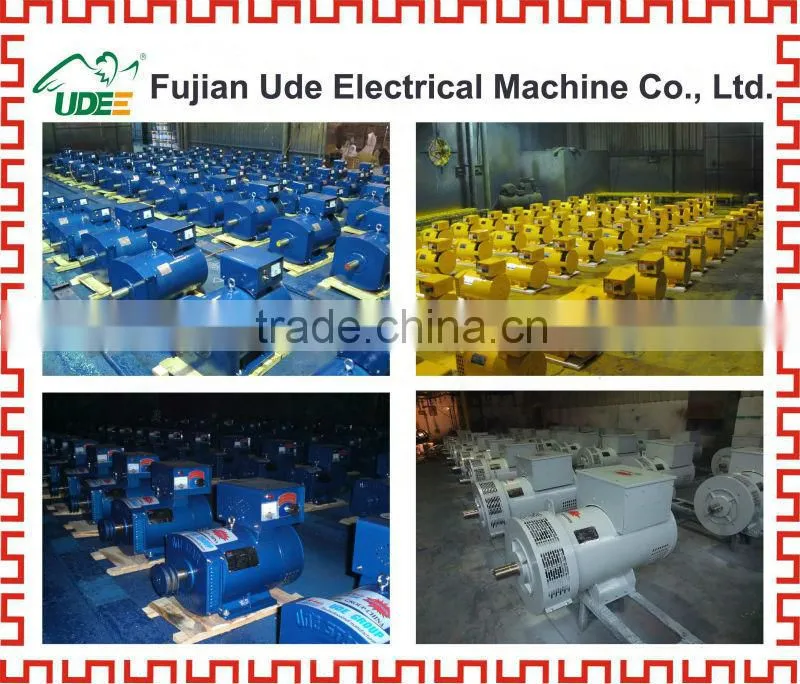

Production Line And Test:

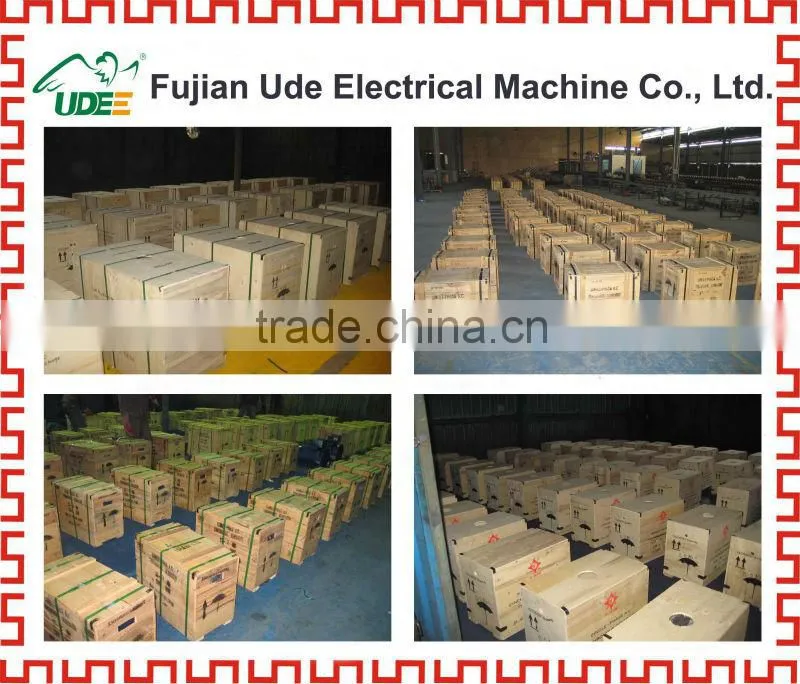

Package:

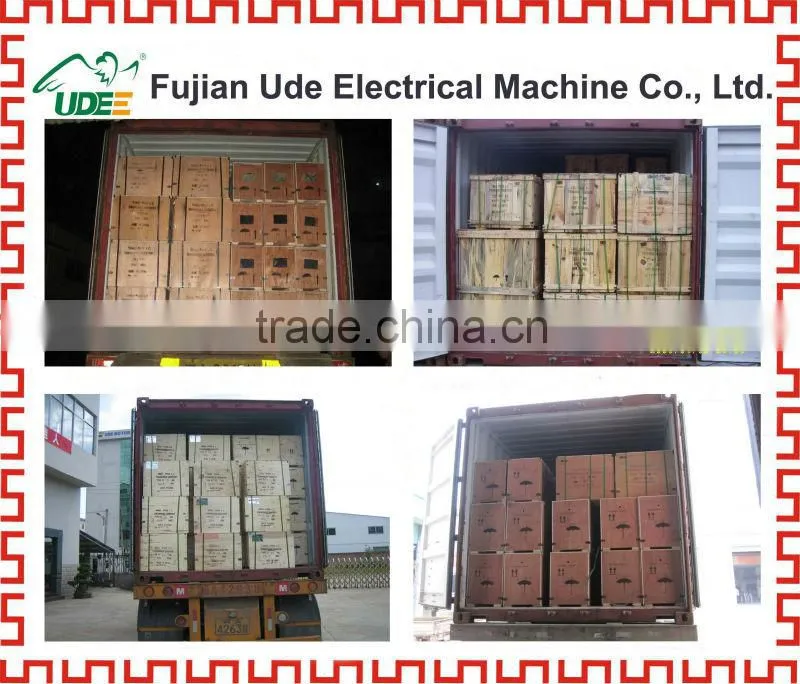

Loading Container:
