Specifications
1.Steel Bar Bending Testing Machine2.Digital Display
3.CE Certificate
4.Forward Bending Angle:0 To 180 Degrees At Will
Jinan Hensgrand Instrument Co., Ltd has the self-management import and export right.
All of our testing machines through the EU CE Certificate.
GW-50B Steel Bar Bending Testing Machine Price
1.Application:
This testing machine can be used to do cold bend and rebend test on plane.
The main technical parameters accord with GB1499._22007 <The second
part of Steel tube for the reinforcement of concrete: hot rolled ribbed steel
bars>, YB/T51262003 <Program of steel bars plane rebend tests.
This machine is suitable for bend test of the metallic material rods and bars,
the plate,spiral steel,and widely applies in the building materials,the metallurgy,
the Scientific research Unit,the universities,colleges and institutes,the quality
detection center and the commodity inspection department.
It is indispensable ideal testing machines to test the recurvate character and
cold bending property of screw thread steel bar.
The testing machine has many advantages,such as small size,compact structure,
easy to operate, low noise, smooth and steady running, display directly bending
angle and lubricate easily,especially reasonable design of limit position and easily
damaged parts,so it has a long using time.
2.Main Specifications:
Mode |
GW-40B |
GW-50B |
|
|
Max Of Bending Diameter Of Steel Bar |
40mm |
50mm |
|
Forward Bending Angle |
0° To 180° At Will |
||
Reverse Bending Angle |
0° To 25° At Will |
||
|
Rotating Speed Of Working Table |
≤2.0r/min |
|
|
|
Distance Between The Center Of Two Rolls |
165mm |
165mm |
|
|
Diameter Of The Working Table |
Φ580mm |
Φ760mm |
|
Motor Power |
1.5 KW |
2.2 KW |
|
|
Standard Bending Accessory |
HRB-335/φ6-φ40/ or other configuration option |
HRB-335/φ6-φ50/ Or other configuration option |
|
Weight(KG) |
1500 KG |
2500 KG |
|

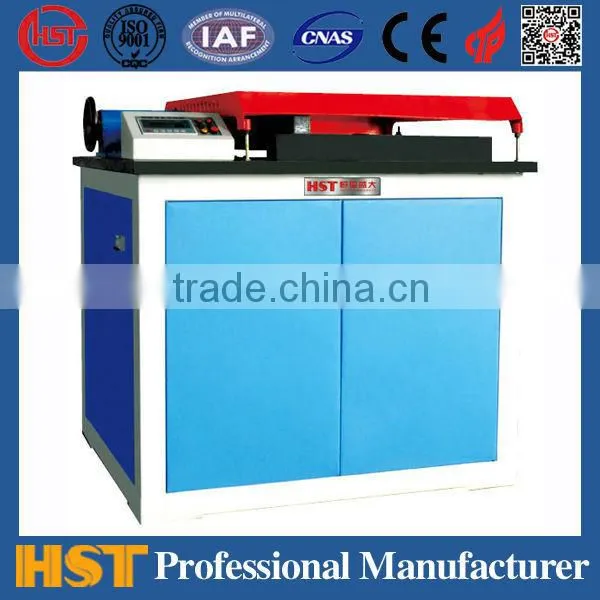

3.Pictures Of GW-50B Steel Bar Bending Testing Machine:
4.The Packing Way Of Our Export Machines:
5.Different Kinds Of Bending Testing Machines:
6.The Realistic Pictures Of Our Factory:
7.Our CE Certificate:
8.Our company can also produce the customized testing machines as clients' requirements.
Best service and the best price for you.
You can contact me in any time as the below information.
