YGW-50 Electro-hydraulic Type Rebar Bidirection Bending Tester Price

YGW-50 Electro-hydraulic Type Rebar Bidirection Bending Tester Price thumbnail-1
YGW-50 Electro-hydraulic Type Rebar Bidirection Bending Tester Price photo-1
US$ 3,999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
hensgrand
Model Number:
YGW-50
Contact Supplier Request Quote Chat Now
Jinan Hensgrand Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name hensgrand
Model Number YGW-50
Power Electronic
Usage Bending Testing Machine

YGW-50 Electro-hydraulic Type Rebar Bidirection Bending testing Machine Price



Application:

YGW Electro-hydraulic Type Rebar Positive And Negative Bending Machine is new designed and developed testing machine. Adopting horizontal structure design,With compact and beautiful, Optional automatic control bending Angle, After parking without inertia, convenient operation, reliable performance, etc. Can do the ribbed steel bar, bar, plate bending and reverse bending test of metal materials, such as measure its curved shape curved ability.



Standard:

GB1499.2-2007 <steel reinforced concrete part 2: hot rolled ribbed bar>

YB/T5126-2003 < reinforced concrete with steel bending and reverse bending test method >

GB/T232-1999< metal material bending test method "and other related standards>



2. Main technical parameters:

2.1 Bending round specimen diameter: Φ20~50mm;

2.2 Bending Angle range:0~180 (Negative angle set by one key);

2.3 Max system working pressure:31.5Mpa;

2.4 Bending mandrel diameter range:Φ6~Φ400mm(optional);

2.5 Bending mandrel diameter parameter:D=3~8d;

2.6 Main motor power :4KW;

2.7 Dimension:1250×800×1100mm;

2.8 Weight:1200Kg;



3. Confguration:

3.1 Horizontal reinforcing steel bar bending machine--1PC

3.1.1 Special bending grip--1SET

3.2 oil source control system--1 SET

3.2.1 Oil pump adopt high-performance plunger pump--1SET

3.2.2 Three-phase asynchronous--1PC

3.2.3 Reversing valve--1SET

3.3 Special measurement and control system--1SET

3.3.1 High precision displacement sensor --1PC;

3.3.2 Digital display operation instrument in English--1 SET



Steel Rebar Cold Bend Test Equipment

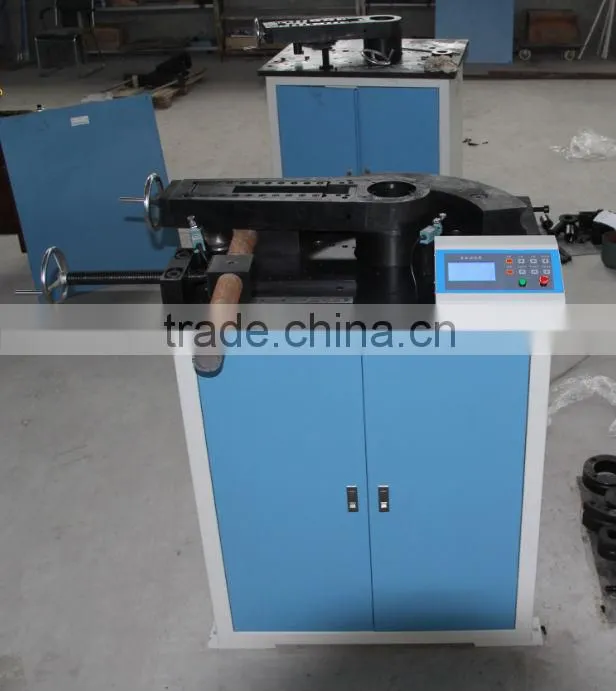

YGW-50 Electro-hydraulic Type Rebar Bidirection Bending tester Price





CE Certificate:

YGW-50 Electro-hydraulic Type Rebar Bidirection Bending tester Price
