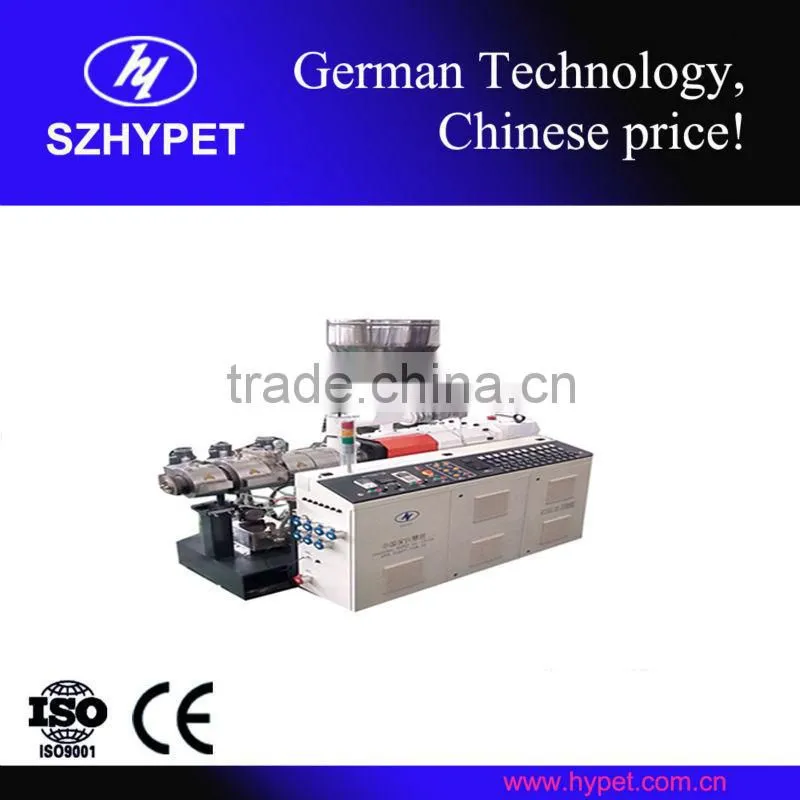

Small size 12-32mm PVC pipes production line
Main feature
1.1*2 pipe produced at the same time
2.High output , stable production
3.Compact, strong structure
4.Energy saving
5.Cost efficient
1) Type HYZS-55/120
Height in the center 1100mm
Output 150-200kg/h
Weight 3500kg
2) Screw
Diameter ø55/120 mm
Material 38CrMoAlA
Finish nitrogen-filled (0.50~0.70mm depth) and polish
Rotate Speed 0~40 r/min
Core of the Screw Auto control for temperature
3) Barrel
Material 38CrMoAlA
Inside Finish nitrogen-filled (0.50~0.70mm depth) and rubbing
Heating Control Area 4 areas
Heating Way stainless steel heaters ( cast heater are option)
Heating Power 30 kw
Cooling System Barrel Fan Cooling with low-noisy fan.
Cooling Power 0.3kw×2
4) Gear Case
Case Material QT450
Gear Material 20CrMnTi
Gear Surface hardened and ground in high precision
Axis Material 40Cr
5) Quantitative Supply Material Device
Supplying Material Motor 1.1kw (frequency control with Fuji inverter )
Speed range 1-50 RPM
6) Vacuum Deflating Humidity
High-point Vacuum Degree -0.004Mpa
Motor Power 1.5kw
7) Driving Motor
AC motor: 30 kw
AC inverter controller: ABB inverter
8) Electrical Control Equipment
Control panel: Digital Display, Adjusting Knobs
Other electric components: world famous components
Electric components and wires are well organized.
Our products and services range:
1. extruders in single or twin screw, parallel or conic
2. kinds of pipe production line, like rigid PVC, soft PVC, conduit, cable,PE water supplier pipes, PPR pipes....etc.
3. kinds of profile producton line, such as PVC windows production lines, PVC profile lines, PVC ceiling lines, PVC roof lines, WPC profile lines..etc
4. kinds of sheet, board production lines, such PVC foaming board/sheet production lines, PVC door production lines, WPC door production lines, WPC foaming board lines....etc.
5. kinds of granulating, pelletizing lines
6. all the auxiliary machine of above lines and spare parts, such as screw barrel, mixer, miller, crusher, cooling tower, cooler, shredder, inverter, molds...etc
7. all the techical data and tecknology of above machines
8. Wood and Plastic Composite decorational profiles and door, such as WPC ceiling, wallboard, floor board, deck board, blind, doors ....etc.
1. Owns more than 30 years in extrusion field
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elben for the long time
3. Designed and produced twin conical screw extruder, twin parallel screw extruder, and transfer the technology to the biggest gears factory in India
4. Own a high professional design team
5. A base combined with designing, making, studying ....etc. in extrusion industrial.
6. Our aim is to learn advanced technology, make the best suitable machine, best efficient machine and lines.
How is HYPET doing in the market?
l More than 30 years experience in the extrusion filed
l Extrusion machinery factory located in wuhan , central of china
l We focus on tailor made plan with exclusivity to each customer
l We have vast resources which can be integrated as whole package service
l We have accumulated vast sale network all over the world
What does HYPET offer to you ?
l Tailor designing for your factory lay out
l Tailor designing for water, electric ,and gas chart
l Tailor made processing technology
l Tailor made production line
l Package pre & after services
l On site installation and training
l Free marketing consultation
Why you should corporate with HYPET ?
l More than 30 years experience in extrusion, with years of international technical exchange experience;
l A team of highly professional technical expert ensures you get the state of art technology;
l Eruo technology ,designing, and processing application for twin screw extruder;
l Optimized design for different material, based on vast successful practical experience;
l HYPET set up separate laboratory with top equipment
l Extrusion performance and capacity proven by trial commissioning for each order
l Capable of providing on site technical training
l Unique design ,same line, suitable for various products
l Also provide various down stream and auxiliary machinery .
What are the HYPET services?
Each order tested before shipping and before payment;
Each order will meet the customer’s satisfaction before payment;
Deposit of Some machinery, if result not satisfied, can be refund;
A team of experience technical engineer can be sent for installation and training;
A standard of spare part will be also provide in each order.
