Help CenterWith HYGF110 Conical Twin Extruder Production Line 63-110mm PVC Pipe Making Machine
Related Products
-
High Output HYG16-32 Four Head PVC Conduit MachineUS$ 58,000 - 65,000MOQ: 1 Set -
16 - 32mm Four Head Electric Conduit PVC Pipe/ Wring Tube MachineUS$ 48,900 - 51,900MOQ: 1 Set
-
PVC 20-63MM DOUBLE PIPE LINE WITH CONIC TWIN SCREW EXTRUDER PS65US$ 53,000 - 55,000MOQ: 1 Set
-
PVC 20-63mm Pipe Production Line With ISO9001 CE Certification Plastic Pellets Double Screw ExtruderUS$ 10,000 - 50,000MOQ: 1 Set
-
HYZS65/132 PVC 20-63mm Pipe Production Line With ISO9001 CE Certification Pvc Double Screw Extruder Machine BeiermanUS$ 10,000 - 50,000MOQ: 1 Set

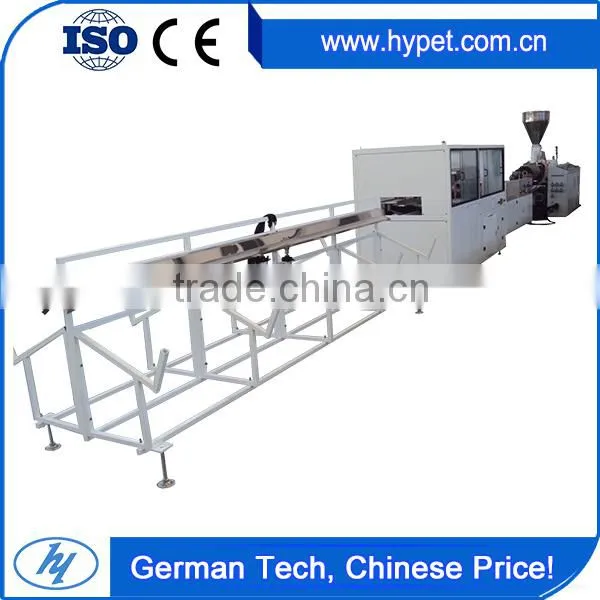

Main Parts:
| No. | Name | Quantity |
| 1 | HYZS 55/120 Conic Twin Screw Extruder | 1 Set |
| 2 | Mould (Single or Double head,Customized) | 1 Set |
| 3 | Calibrating and Cooling Table | 1 Set |
| 4 | Haul off Device | 1 Set |
| 5 | Cutting Device | 1 Set |
| 6 | Staker | 1 Set |
Auxiliary Machine:
| No. | Name | Quantity |
| 1 | Mixer | 1 Set |
| 2 | Crusher | 1 Set |
Specification:
1. HYZS 55/120 Conic Twin Screw Extruder
Height in the center: 1100mm
Max Output: 180-220 Kg/h
Weight: 3000Kg
Screw
Diameter: ø55/120 mm
Material: 38CrMoAlA
Finish: Nitrogen-filled (0.50~0.70mm depth) and polish
Rotate Speed: 0~40r/min
Core of Screw: Temperture Auto Control
Barrel
Material: 38CrMoAlA
Inside Finish: Nitrogen-filled (0.50~0.70mm depth)
Heating Control Area: 4 areas
Heating Way: Ceramic heaters (Cast Aluminium for Option)
Heating Power: 30Kw
Cooling System: Barrel Fan Cooling, Low-noisy
Cooling Power: 0.3Kw×3
Gear Case
Case Material: QT450
Gear Material: 20CrMnTi
Gears: Harden and ground in High Precision
Axis Material: 40Cr
Quantitative Supply Material Device
Supplying Material Motor: 1.1Kw
Speed range: 1-50 rpm
Vacuum Deflating Humidity
High-point Vacuum Degree: -0.004Mpa
Motor Power: 1.5kw
Driving Motor
AC motor: 30 Kw
AC inverter controller: ABB inverter
Electrical Control Equipment
Control panel: Digital Display, Adjusting Knobs
Other electric components: world famous components
Electric components and wires are well organized
2. Calibrating and Cooling Table
Effective Length: 4000mm
Material of Cooling Trough: Stainless Steel
Vacuum Pump: 3.2Kw * 2
Water Pump: 3.2Kw * 2
Forward and backward, left and right, upper and down three dimentional adjusting
3. Haul off device
Haul off rubber with high quality
Effective Compacting Length: 1200mm
Haul off Speed: 8 - 10 m/min
Haul off Motor: 1.5Kw * 2
Pressing function could be adjust by lifting device automatically
4. Cutting device
Cutting length controlled by position electric switch, reliable.
Cutting Motor: 0.75Kw
Dust absorbing device: 1 Set
5. Staker length is 4000mm
1. Owns more than 30 years in extrusion field
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elben for the long time
3. Designed and produced twin conical screw extruder, twin parallel screw extruder, and transfer the technology to the biggest gears factory in India
4. Own a high professional design team
5. A base combined with designing, making, studying ....etc. in extrusion industrial.
6. Our aim is to learn advanced technology, make the best suitable machine, best efficient machine and lines.
Our products and services range:
1. extruders in single or twin screw, parallel or conic
2. kinds of pipe production line, like rigid PVC, soft PVC, conduit, cable,PE water supplier pipes, PPR pipes....etc.
3. kinds of profile producton line, such as PVC windows production lines, PVC profile lines, PVC ceiling lines, PVC roof lines, WPC profile lines..etc
4. kinds of sheet, board production lines, such PVC foaming board/sheet production lines, PVC door production lines, WPC door production lines, WPC foaming board lines....etc.
5. kinds of granulating, pelletizing lines
6. all the auxiliary machine of above lines and spare parts, such as screw barrel, mixer, miller, crusher, cooling tower, cooler, shredder, inverter, molds...etc
7. all the techical data and tecknology of above machines
8. Wood and Plastic Composite decorational profiles and door, such as WPC ceiling, wallboard, floor board, deck board, blind, doors ....etc.
How is HYPET doing in the market?
l More than 30 years experience in the extrusion filed
l Extrusion machinery factory located in wuhan , central of china
l We focus on tailor made plan with exclusivity to each customer
l We have vast resources which can be integrated as whole package service
l We have accumulated vast sale network all over the world
What does HYPET offer to you ?
l Tailor designing for your factory lay out
l Tailor designing for water, electric ,and gas chart
l Tailor made processing technology
l Tailor made production line
l Package pre & after services
l On site installation and training
l Free marketing consultation
Why you should corporate with HYPET ?
l More than 30 years experience in extrusion, with years of international technical exchange experience;
l A team of highly professional technical expert ensures you get the state of art technology;
l Eruo technology ,designing, and processing application for twin screw extruder;
l Optimized design for different material, based on vast successful practical experience;
l HYPET set up separate laboratory with top equipment
l Extrusion performance and capacity proven by trial commissioning for each order
l Capable of providing on site technical training
l Unique design ,same line, suitable for various products
l Also provide various down stream and auxiliary machinery .
What are the HYPET services?
Each order tested before shipping and before payment;
Each order will meet the customer’s satisfaction before payment;
Deposit of Some machinery, if result not satisfied, can be refund;
A team of experience technical engineer can be sent for installation and training;
A standard of spare part will be also provide in each order.
