Specifications
1.usage:ring stiffness test2.electric loading
puter auto control
4.with CE certificate

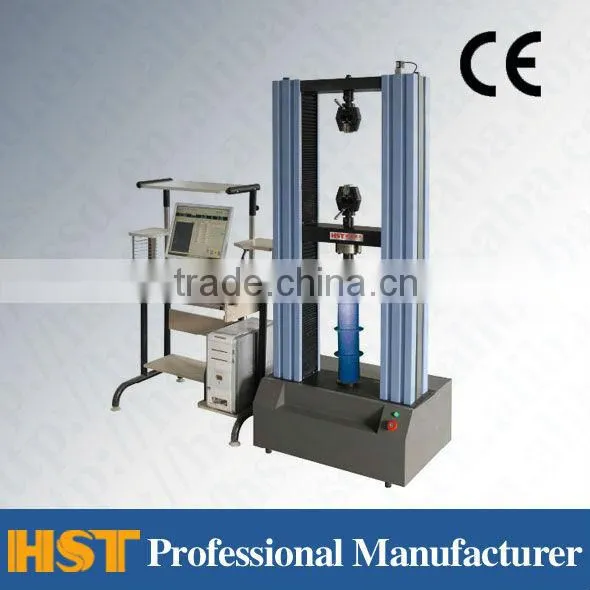

ring stiffness testing equipment
Application:
This machine is mainly used for various pipe ring stiffness, flexibility and flat, Central test, based on customers ' special needs can also increase tensile, compression, bending, and functional tests, is a multifunctional electronic universal testing machine.
Technical parameter:
Model |
HGW-20 |
HGW-50 |
HGW-100 |
Max test force(KN) |
20 |
50 |
100 |
Comperssion space(mm) |
0-800 |
||
Test width |
400(mm) |
450(mm) |
|
Test range |
2%~100%FS |
||
Test force accuracy |
Better than±1% |
||
Deformation accuracy |
Better than ±1% |
||
Deformation test range |
2%-100% |
||
Force speed |
0.05%~100%FS |
||
Force speed control precision |
Better than ±1% |
||
Displacemnt speed |
0.05~500mm/min |
0.05~200mm/min |
|
Displacement test resolution |
0.005 |
||
Displacement constant speed control accuracy |
Better than ±1% |
||
Patterned deformation control |
0.05%~100%FS |
||
Patterned deformation control accuracy |
better than ±1% |
||
Power |
220V±10%,50Hz |
||
Weight (Kg) |
450 |
550 |
|
Features:
1. The inner diameter not rule of tube,add wall thickness deformation measuring device to measure inside diameter deformation, high measurement accuracy, accurate and reliable control.
2. Digital display by microcontroller data acquisition and processing is completed, LCD display of the test, the amount of deformation and compression speed and be able to print Record.
