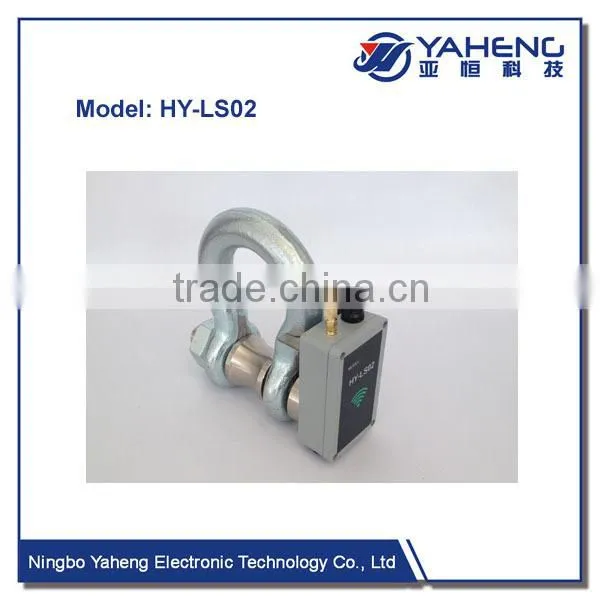

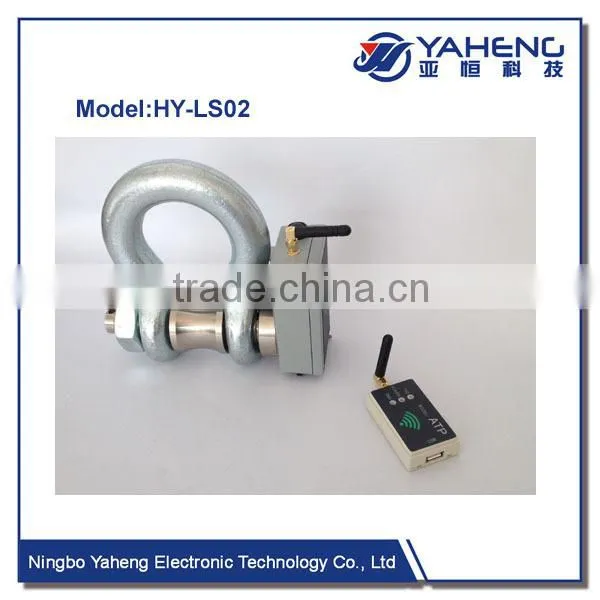

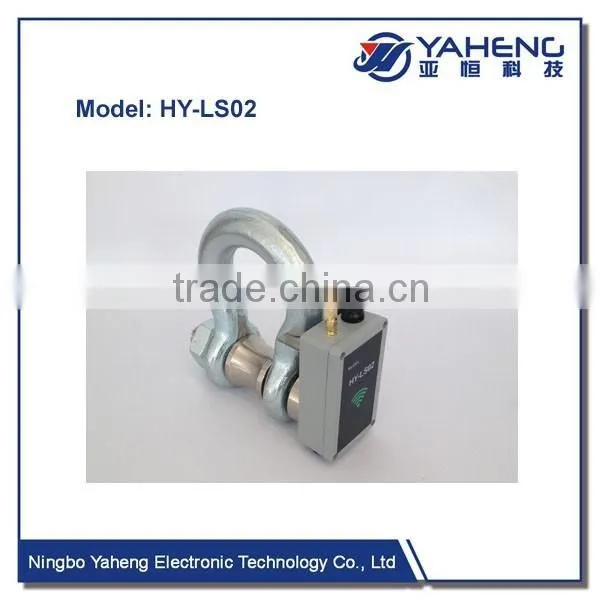

Electronic Industry Wireless 35 Ton Crane Scale

Electronic Industry Wireless 35 Ton Crane Scale thumbnail-1
Electronic Industry Wireless 35 Ton Crane Scale thumbnail-2
Electronic Industry Wireless 35 Ton Crane Scale thumbnail-3
Electronic Industry Wireless 35 Ton Crane Scale thumbnail-4
Electronic Industry Wireless 35 Ton Crane Scale thumbnail-5
Electronic Industry Wireless 35 Ton Crane Scale thumbnail-6
Electronic Industry Wireless 35 Ton Crane Scale photo-1
Electronic Industry Wireless 35 Ton Crane Scale photo-2
Electronic Industry Wireless 35 Ton Crane Scale photo-3
Electronic Industry Wireless 35 Ton Crane Scale photo-4
Electronic Industry Wireless 35 Ton Crane Scale photo-5
Electronic Industry Wireless 35 Ton Crane Scale photo-6
US$ 310 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YAHENG
Model Number:
LS02W
Contact Supplier Request Quote Chat Now
Ningbo Yaheng Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YAHENG
Model Number LS02W
Type Crane Scale
Power Supply DC7.4V/5000mAH
Display Type 3.2"TFT 320x240 dot/LCD
Rated Load 3kg
Accuracy 1/200000

Product Description

Functions
1 Zero
2 Tare /Set Tare/Store Tare

3 Search/delete

4 Overload warning
5 Battery supervision
6 Resolution switch
7 Digital calibration
8 Date/time
9 Save &Print

10 Reprint

11  Walks the paper

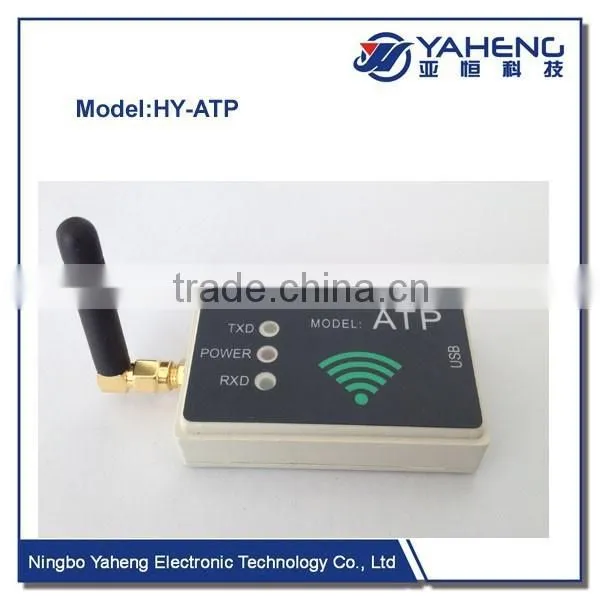

For indicator
Display 3.2" TFT(320*240 dot) ,6 digit display
Weighing Units kg/t/lb/kN…
Division 1/2/5/10/20/50/100 optional
Dimension(mm) 224x117x100
Power supply Rechargeable battery 7.4V / 5Ah
or 8.4V / 1A charger
External Interface USB interface or RS232 interface
Printer Micro printer
Operating temperature -25°C~50°C, RH 10%~85%, Non-condensing
Storage temperature -30°C~55°C, RH 10%~85%,Non-condensing
Communication Wireless interface,434M~470MHZ

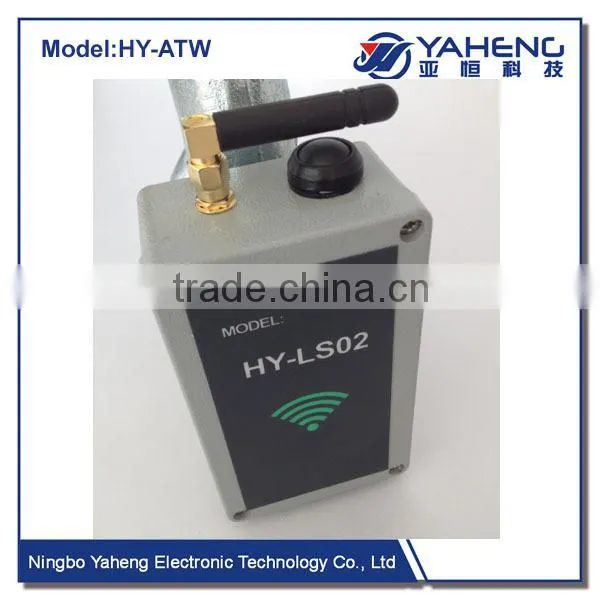

For wireless sender
A/D conversion method Σ-Δ 24bit
Input signal range –19.8mV~19.8mV
Load cell excitation DC 5V
Max. connection number of load cell 1~12
Load cell connection mode 4 wire
Operating temperature -10 °C ~40 °C
Allowable working temperature -40 ° C ~ 70 ° C
Wireless transmission frequency 430MHz to 470MHz
Wireless transmission distance 300 meters (in wide place)



 For Crane Scale:

Capacity:

3/6/10 /17/25/35/50/75/100t

Proof Load:

130% Rated Load

Bridge Resistance:

700ohm

Operating Temperature:

-20 to + 65 °C

Environmental Sealing:

Load Shackle: IP67 Equivalent

Display: IP65 Equivalent

Accuracy:

Typically Better Than+/-0.75% of rated Load

Repeatability:

+/-0.1% of rated load

Frequency:

434~470Mhz

Range:

200 Meter

Channels:

115

Power Supply:

Transmitter: 12 hours between charge





  Electronic Industry wireless 35 ton crane scaleElectronic Industry wireless 35 ton crane scaleElectronic Industry wireless 35 ton crane scale


Packaging & Shipping



1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.

2.Delivery time according to the order quantity.





Company Information

    Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products





Certificates





FAQ



1) When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.

2) How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.

3) How long can I expect to get the sample?

After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.

4) What about the leading time for mass production?

Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
