Single labyrinth type drip irrigation hose
Features

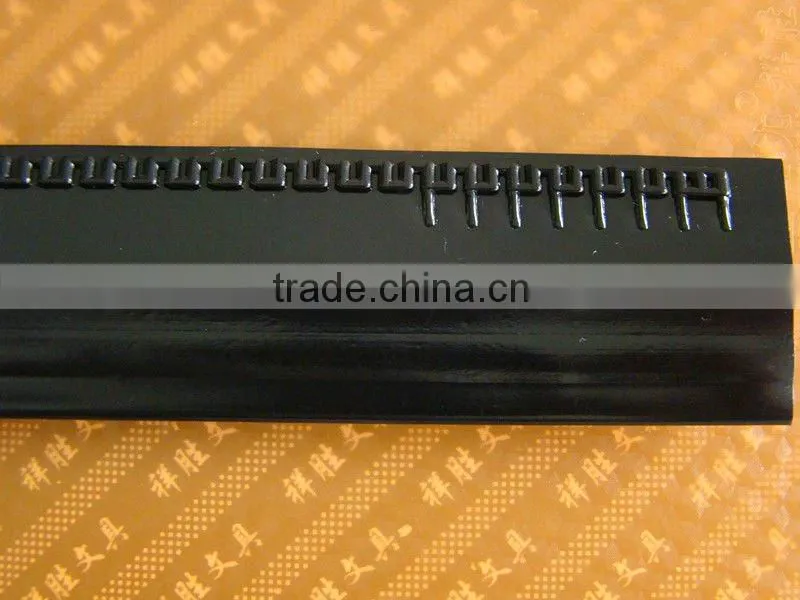

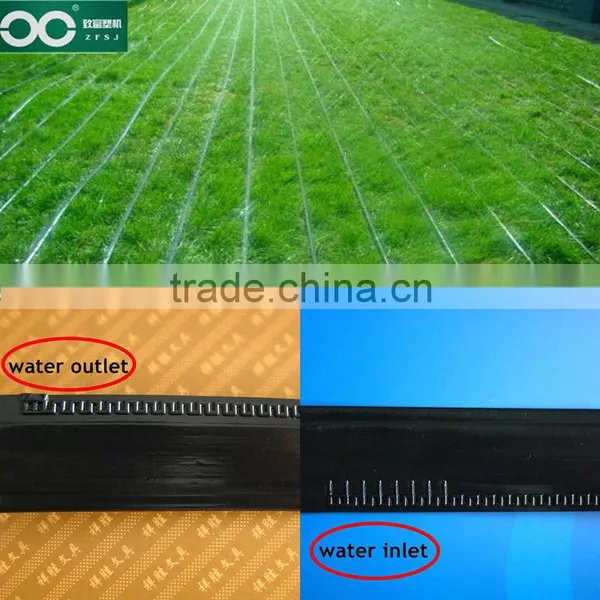

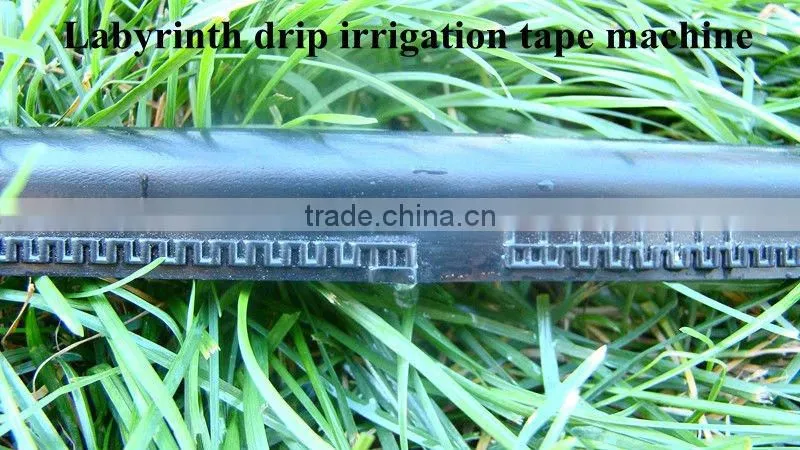

1. The labyrinth flow passage, water dripping outlet and pipeline can be formed once, which performance is good.
2. The labyrinth water flow passage is much wider, the water flow state is turbulent and it has many water entrances which can prevent tape from clogging strongly.
3. Multi water outlets greatly lower the risk of water interception due to the outside blocking.
4. It can be widely applied to greenhouse and farm land paved along crops, the dripping volume and space of dripping outlet can be supplied according to actual needs.
Specification:
|
Outside diameter |
Thickness (mm) |
Rated working pressure (Mpa) |
Water discharge rate(L/H) |
Water outlet space (mm) |
Filter mesh quantity (mesh) |
Max. Paving length(m) |
Even degree (%) |
Each roll length(m) |
|
¢12 ¢16 ¢20
|
0.18-0.22 |
0.1 |
1-6L/H |
100/150/ 200/250/300 |
120 |
80 |
≥90 |
≤2500 |
Diameter of drip irrigation tape, dripper distance or one dripper with two holes can all be made according to customer's special demand.
product

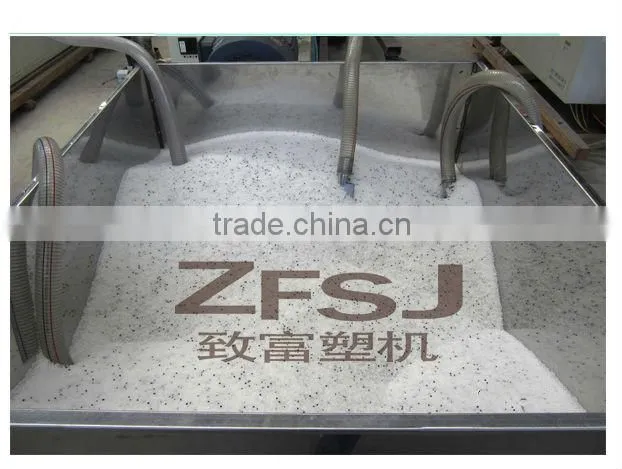

Material
the shaping wheel

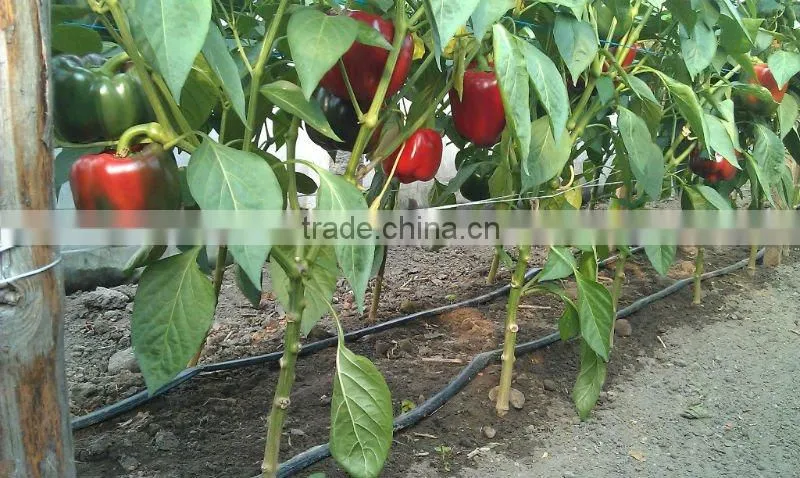

application
cooperation

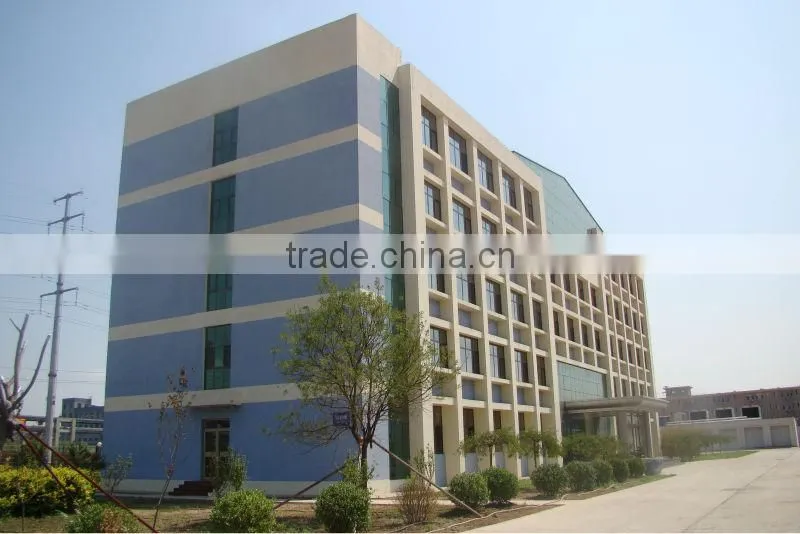

Workshop and factory show
