Home > Electrical & Electronics > Electric Motor > DC Motor > Small Flat Electric Motor4000-10000RPM FC-280A

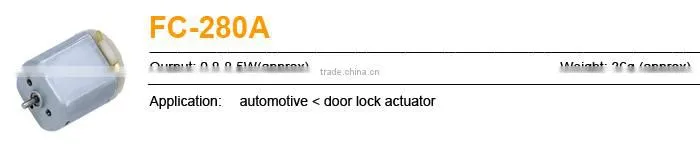

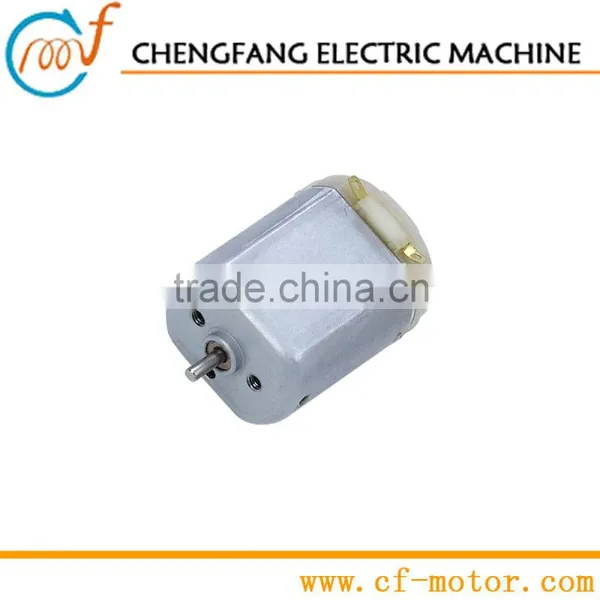

Small Flat Electric Motor4000-10000RPM FC-280A
Negotiable
MOQ: 20000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ROHS, UL, Other, ROHS, UL, ISO./TS 16949:2009
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V Flat DC Electric Small DC Motor 5 Watt FC-280ANegotiableMOQ: 20000 Pieces -
DC Motor 24V Electric Car Motor FT-280ANegotiableMOQ: 20000 Pieces
-
Car Electric Motor FT-280ANegotiableMOQ: 20000 Pieces
-
Single Phase 2hp Electric Motor FT-280ANegotiableMOQ: 20000 Pieces
-
12v Braking Vaccum Pump Motor, BVP Motor RS-9812HNegotiableMOQ: 3000 Pieces
Certification
ROHS, UL, Other, ROHS, UL, ISO./TS 16949:2009
Performance Data
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| FC-280SA-10430 | 12 | 4,200 | 0.026 | 3,368 | 0.104 | 2.56 | 0.9 | 72.1 | 0.42 | 12.95 |
| FC-280SA-19145 | 12 | 12,400 | 0.09 | 10,568 | 0.52 | 3.9 | 4.27 | 68.4 | 3.00 | 26.09 |
| FC-280RAV-10436 | 24 | 11,900 | 0.035 | 9,717 | 0.16 | 2.2 | 2.29 | 60.8 | 0.70 | 12.26 |
| FC-280SA-18155B | 13.5 | 13,000 | 0.09 | 11,137 | 0.54 | 4.1 | 4.75 | 65.5 | 3.21 | 28.44 |
