12V dc Motor,FT-280SA,used for Door Lock

12V dc Motor,FT-280SA,used for Door Lock thumbnail-1
12V dc Motor,FT-280SA,used for Door Lock photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF motor
Model Number:
FT-280A
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF motor
Model Number FT-280A
Usage Car
Certification CCC, ROHS
Type Micro Motor
Construction Permanent Magnet
Commutation Brush
Protect Feature Other
Speed(RPM) 3000~30000
Voltage(V) 1.0~24

Door lock actuator motor




dia*L 24*30.5mm
Weight: 30g Approx
Application:  Fax Machine / Door Lock Actuator



The models we list below are part of our existing designs.

We offer specific motor design for every customer.



FT-280A

Model No. FT-280SAT-21130L
Rated voltage 12VDC
No Load Speed(r/min) 13480
Current(A) 0.11
At Max Efficiency Speed(r/min) 11706
Current(A) 0.73
Torque(mNm) 4.6
Output(W) 5.69
Eff.(%) 65.2
At stall Current(A) 4.8
Torque(mNm) 35.3

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

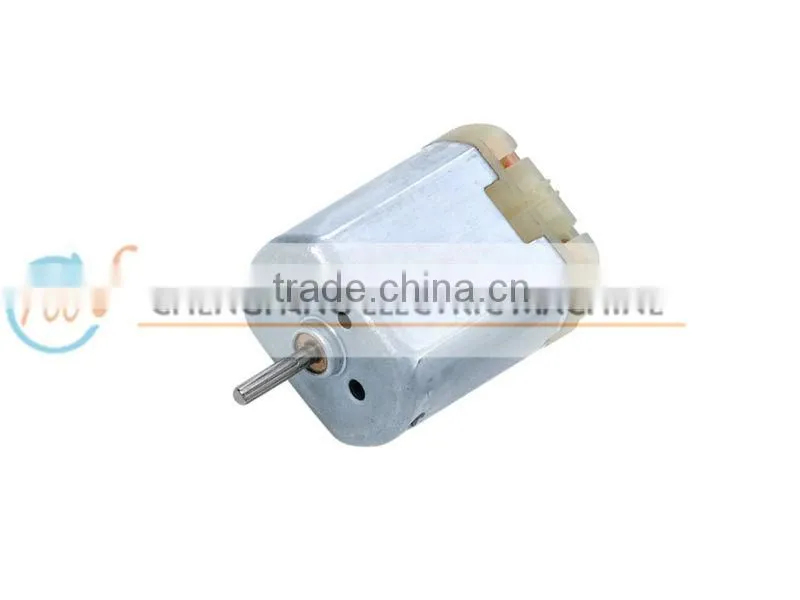

12V dc motor,FT-280SA,used for door lock



12V dc motor,FT-280SA,used for door lock







  • Door lock actuator motor
  • Fax machine motor
  • Dimension: dia. 24 x 18.3 Thk. x 30.5 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / Plastic end cap / Female terminal
  • Application: Fax Machine / Door Lock Actuator / Power Scissors
  • Weight: Approx. 30g





Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets

12V dc motor,FT-280SA,used for door lock
