Small Electric Motor for Kids Cars | RS-360H/365H
US$ 0.5 - 1
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF motor
Model Number:
RS-360H RS-365H
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Robot Motor RS-545SHV, 12v dc Electric Motor,12v Brush dc MotorNegotiableMOQ: 10000 Pieces -
Diameter 28mm dc Gear Motor RS-360/RS-365 MotorUS$ 2.58 - 3.88MOQ: 3000 Pieces
-
Diameter 28mm 12v dc Motor High Power RS-360/RS-365 MotorUS$ 2.58 - 3.88MOQ: 3000 Pieces
-
Permanent Magnet dc Electric Motor for Toys With Variable Speed RS-365HNegotiableMOQ: 10000 Pieces
-
12v dc High Torque Electric Motor for Cordless Drill RS-550HNegotiableMOQ: 10000 Pieces
Place of Origin
Guangdong, China
Brand Name
CF motor
Model Number
RS-360H RS-365H
Usage
Home Appliance
Certification
CCC, ROHS, UL
Type
Micro Motor
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Other
Speed(RPM)
3000~30000
Voltage(V)
1.0~24
Overview Information
| Input voltage | 1.2VDC - 240VAC | |
| Products | 1 series | Φ20mm |
| 2 series | Φ24mm | |
| 3 series | Φ28mm | |
| 5 series | Φ36mm | |
| 7 series | Φ42mm | |
| 8 series | Φ45mm | |
| 9 series | Φ52mm | |

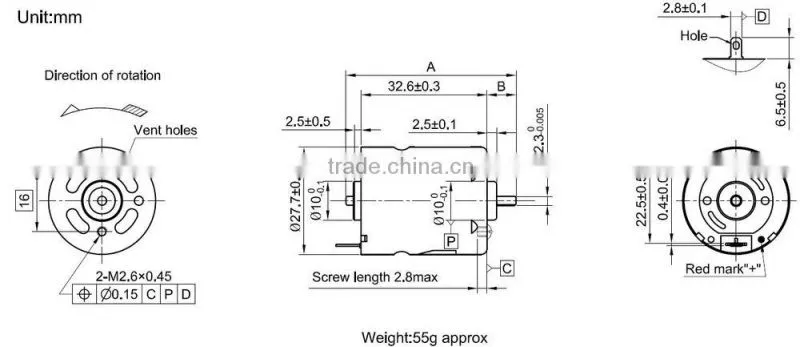

Detailed Dimension
Performance Data
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| V | r/min | A | r/min | A | g.cm | W | % | A | g.cm | |
| RS-360SH-2778 | 7.2 CONST | 12,350 | 0.44 | 9,707 | 1.512 | 61.4 | 6.5 | 59.74 | 6.53 | 370 |
| RS-360SH-11440 | 13.5 CONST | 4,280 | 0.04 | 3,403 | 0.129 | 30.1 | 1.05 | 60.48 | 0.55 | 150 |
Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035
Basic Structure
| Basic Structure of Chengfang Motors | Customized Options |
| 2-pole stator * Ferrite permanent magnet * 3, 5, 7, 8, 9, 12,16 slots armature * Silicon-steel lamination with epoxy coating * High-carbon steel shaft * Cu-Ag alloy commutator * Copper-graphite brushes * Be-Cu leaf-brush commutating system * SECD round / flat type housing * SECD end cap / glassfiber reinforced PA6/6 end cap * Cylinder / self-aligning Cu-Fe alloy sintered bushes * 155℃ (class F) magnet wire |
* Leadwires with connector / pins * EMI suppression components * PTC or thermostate protection * Built-in AC/DC rectifier * Built-in cooling fan * Multiple output shaft * diamond knurls, straight knurls, D-cut, stepped shaft * Shaft-mounted gears, eccentric gears, belt pulleys * Stainless steel (SS304, SS420) shaft * Ball bearing * Cage-brush commutating system * Precious metal brush / commutator * Hall encoder * Low-cogging torque design * 180℃class H), 200℃ (class C) magnet wire * -40℃ ~ 220℃ bearing lubricant * Neodymium magnets |
