DAI2 10A with switch emc filter dual

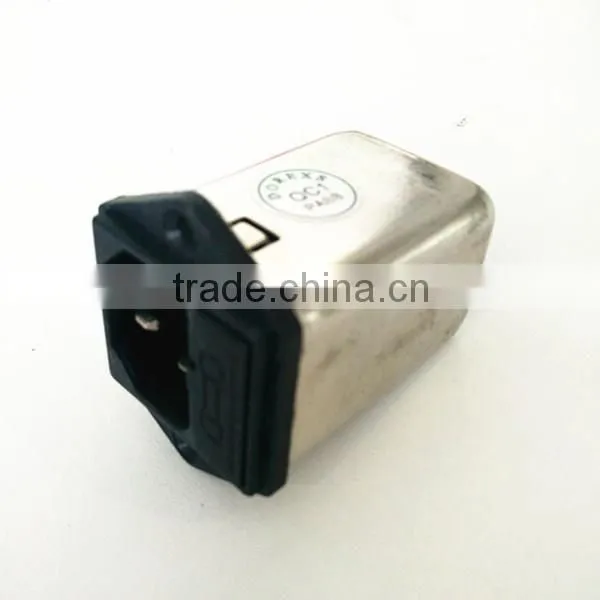

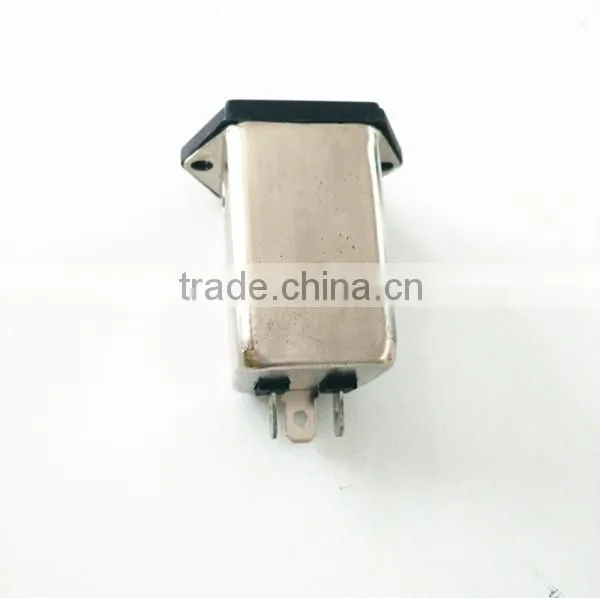

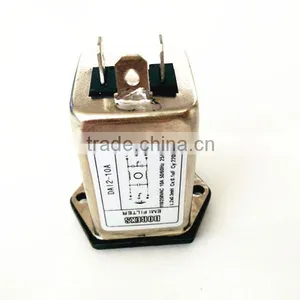

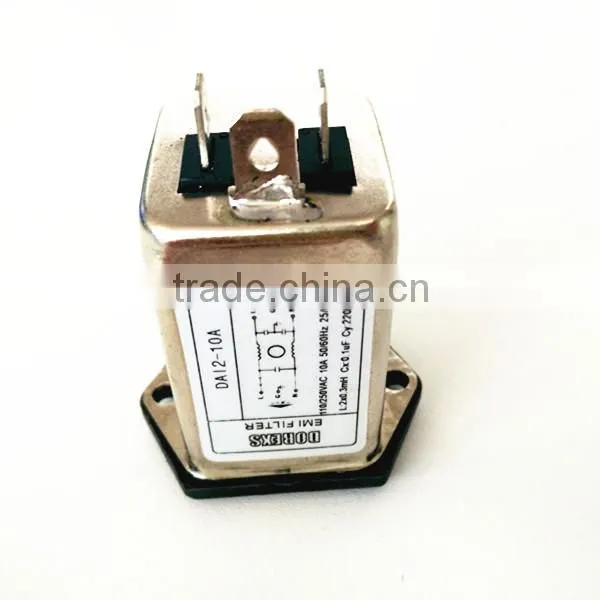

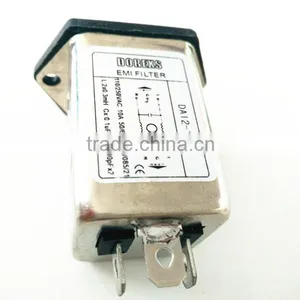

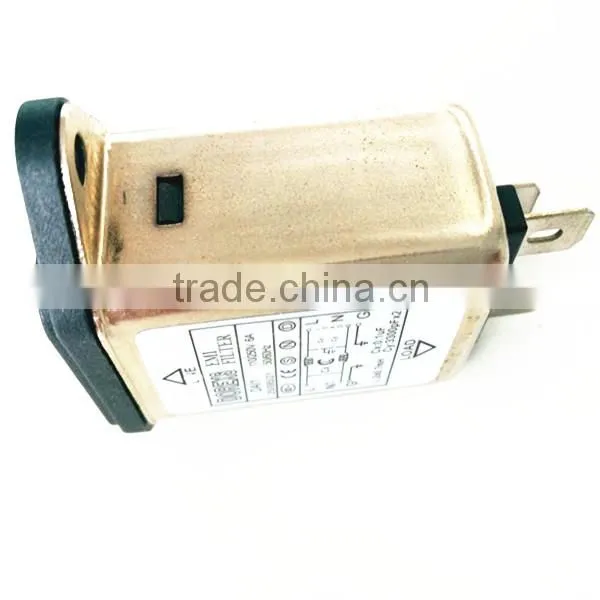

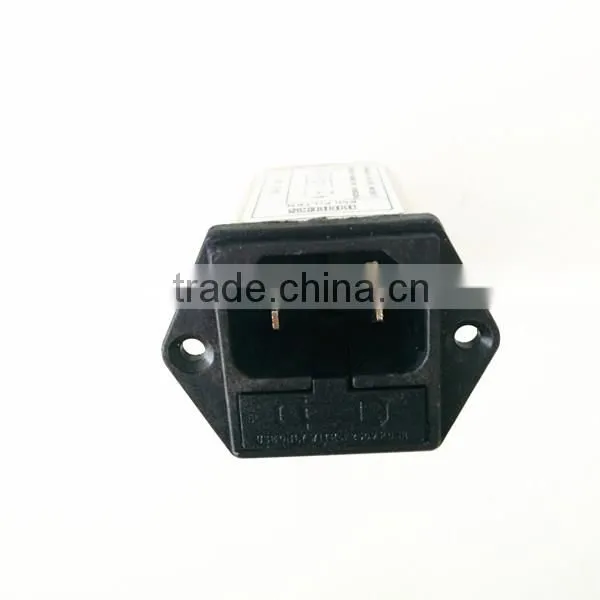

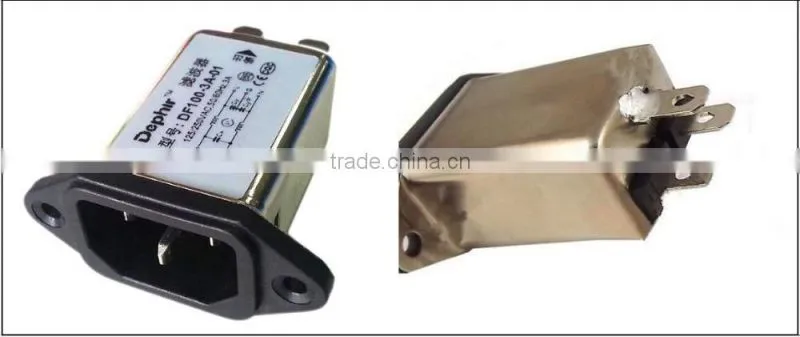

Products picture

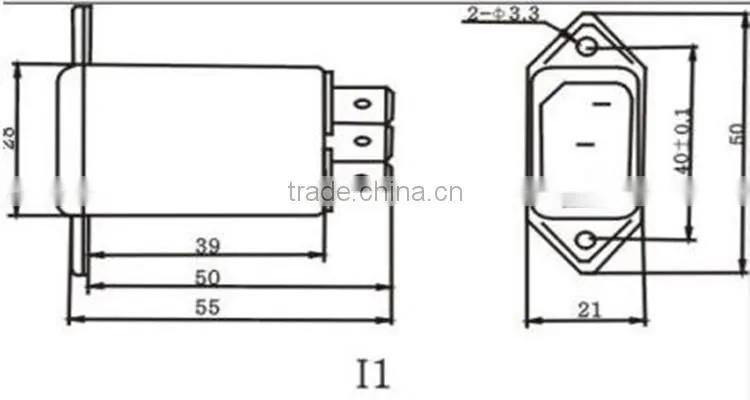

Outline drawing

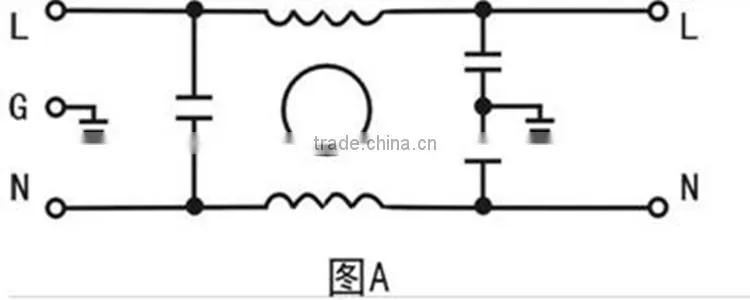

Electrical Schematics

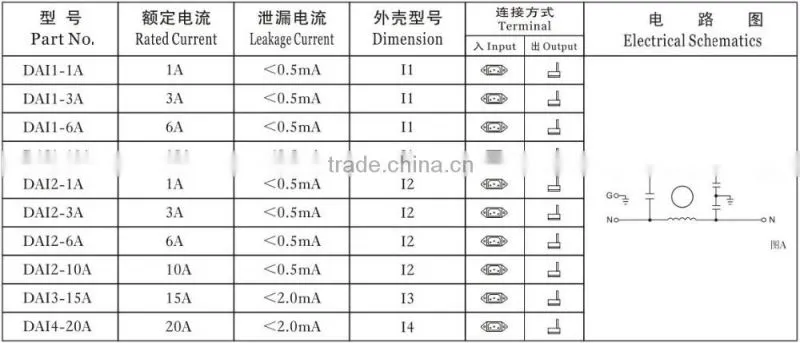

List of General products
Technical parameters:
Rated voltage ................................................................................. 110/250VAC
Operating frequency ....................................................................................... 50/60Hz
Rated Current ....................................................................................... 1A ~ 20A
Pressure test ................................................ line - Line: 1500VDC line - ground: 1500VAC
Insulation resistance ........................................................................> 50MΩ @ 500VDC
Temperature rise .......................................................................................... <30 ° C
Climatic category .................................................................................... 25/085/21
Feature:
Single Phase AC filter
General Purpose filter with ICE connector
High ration of performance to cost moke
Available for mini-electronic equipments and instruments

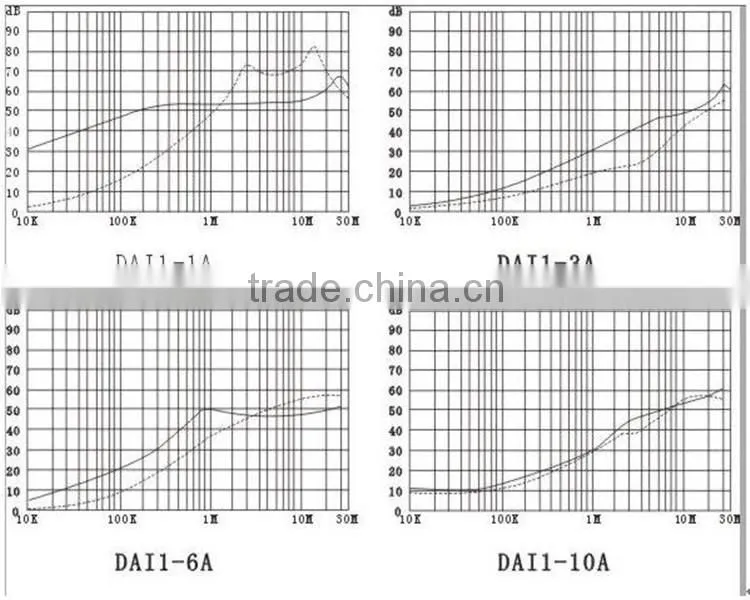

Insertion Loss
Certifications
Company informations:
Packings:
Quantiy Per Cartoon: 250 Pcs
Gross Weight: 12kg
Cartoon Size: 45*36*21cm
Q1: How about your experience?
A1: We have our own professional factory and R&D department
Q2:What's your your advantage?
A2:(1) More than 12 Years Manufactuer Experience in potentiometer&resistor&EMI filter&knobs
(2) 8 years of Alibaba Gold Supplier.
(3) Factory Price and OEM Provide.
(4) Credit guarantee combination: US $17000
(5) TUV ROHS ISO9001 CE
(6) Low MOQ:1 Piece
Q3: How to ensure the quality of the product?
A2: The safety certification of UL/CE/CQC/ROHS is a guarantee of quality.
100% QC inspection Before Shippment.
