Help CenterDBI5 3A With Inner Resistor and Spare Fuse and With Switch Emi Filter
Related Products
-
220V 12A Power Line FilterUS$ 1.3 - 2MOQ: 1 Piece -
Single Phase 220V EMI Filter EMI Power Line FilterUS$ 1.3 - 2MOQ: 1 Piece
-
High Performance Metal Case Power Line Filter 12AUS$ 1.3 - 2MOQ: 1 Piece
-
Chengdu Manufacturers Wholesale Single Phase EMI Power FilterUS$ 1.3 - 2MOQ: 1 Piece
-
Electronic Equipment Single Phase EMI Line FilterUS$ 1.3 - 2MOQ: 1 Piece

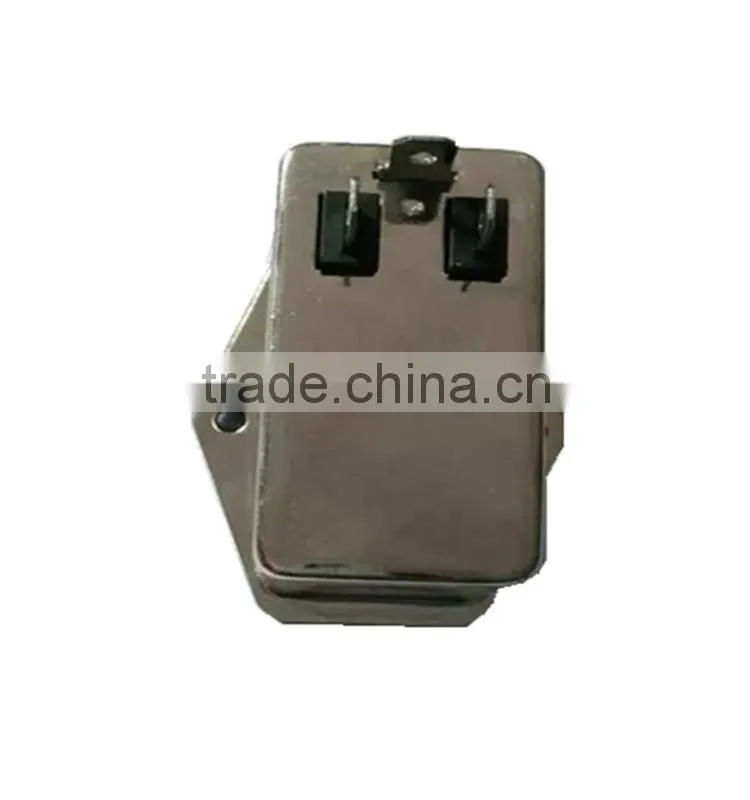

Products picture

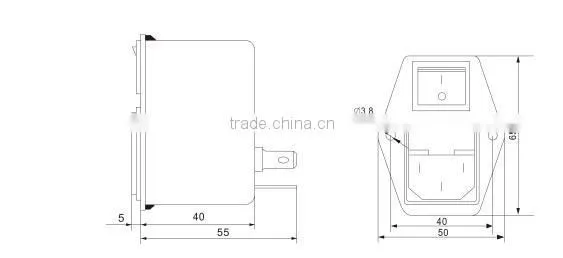

Outline drawing
Technical parameters:
Rated voltage ................................................................................. 110/250VAC
Operating frequency ....................................................................................... 50/60Hz
Rated Current ....................................................................................... 1A ~ 20A
Pressure test ................................................ line - Line: 1500VDC line - ground: 1500VAC
Insulation resistance ........................................................................> 50MΩ @ 500VDC
Temperature rise .......................................................................................... <30 ° C
Climatic category .................................................................................... 25/085/21
Feature:
Single Phase AC filter
General Purpose filter with ICE connector
High ration of performance to cost moke
Available for mini-electronic equipments and instruments

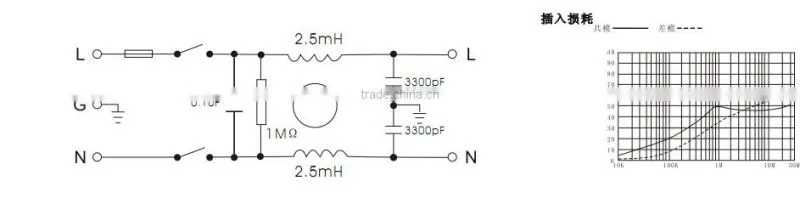

Electrical Schematics
