Chengdu manufacturer Single Phase AC Socket EMI Filter Power Filter 3A 6A 10A.
Featureds:
•Rated currents up to 10A
•Excellent performance/size ratio
•IEC Connector Integrative Filter
•General purpose, compact, easy for installation and use
•Exceptional conducted attenuation performance
•High performance to cost make
Appplication:
•Mini to middle size electronic equipments
•Measuring instruments
•Computer
•Communication equipment
•LCD TV
•Electronic toys
•Medical equipment
•Medical typical applications
Products Data:
Rated voltage.................................................................................110/250 vac
Working frequency.......................................................................................50/60 hz
Rated current.......................................................................................1A~ 10A.
Pressure test................................................Line - line: 1500 VDC line - ground: 1500 VDC
Insulation resistance........................................................................> 50 m Ω @ 500 VDC
Temperature rise..........................................................................................The < 30 ° C
Climate type....................................................................................25/085/21

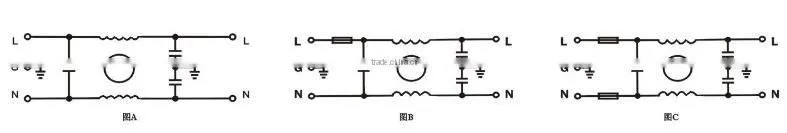

Electrical Schematic:

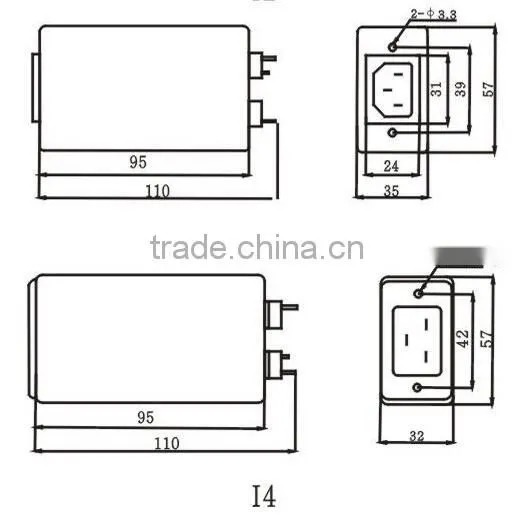

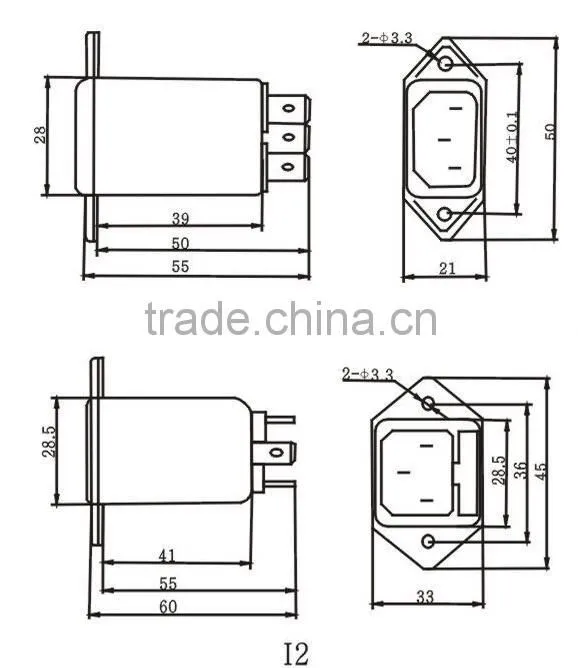

The shell Outline Drawing(mm):

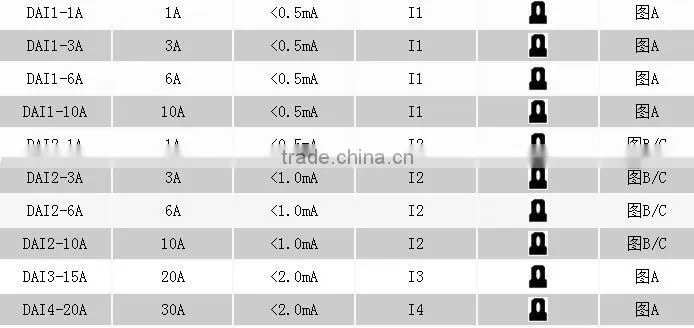

Filter Selection Table:
Model Rated current Leakage current shell Model connection method Circuit

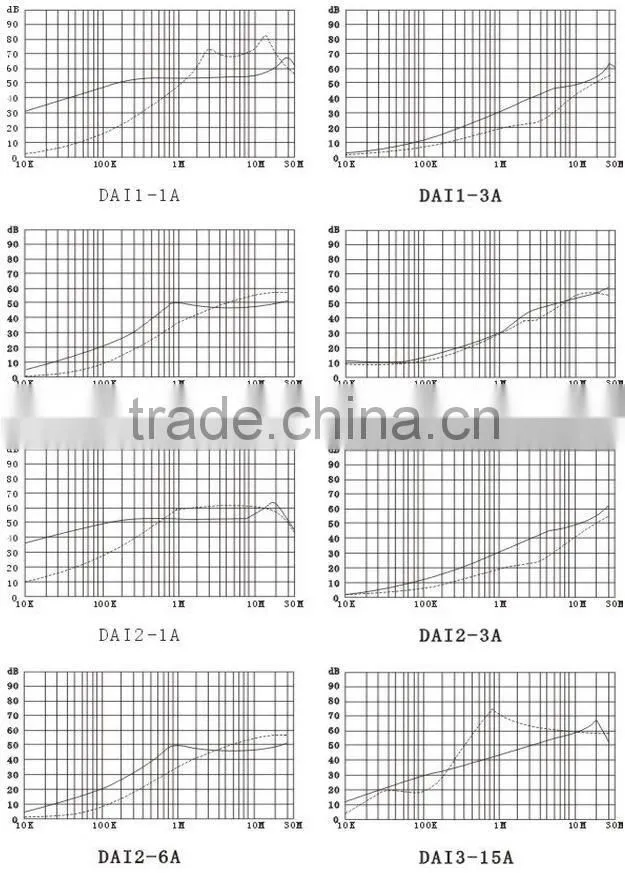

Insertion loss in dB:

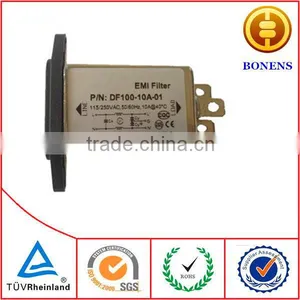

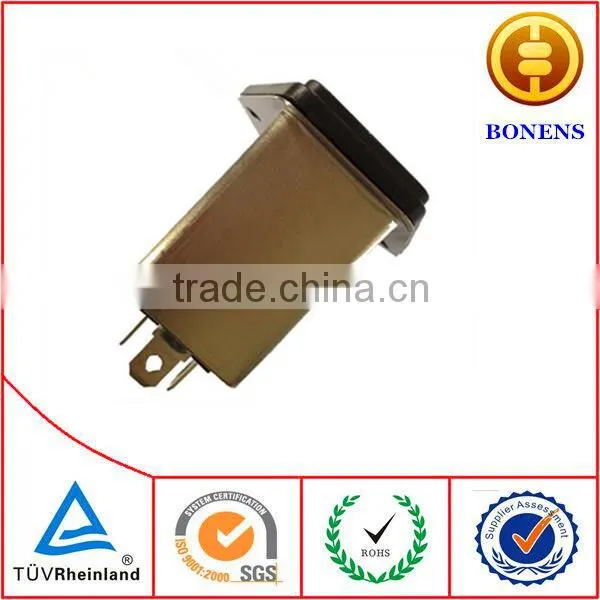

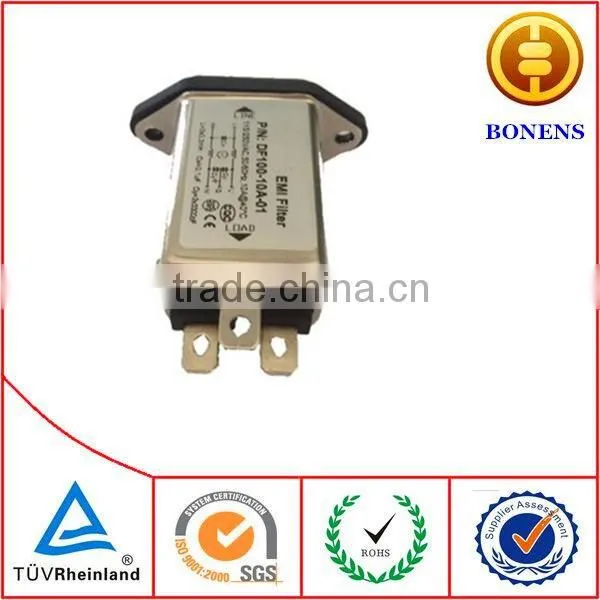

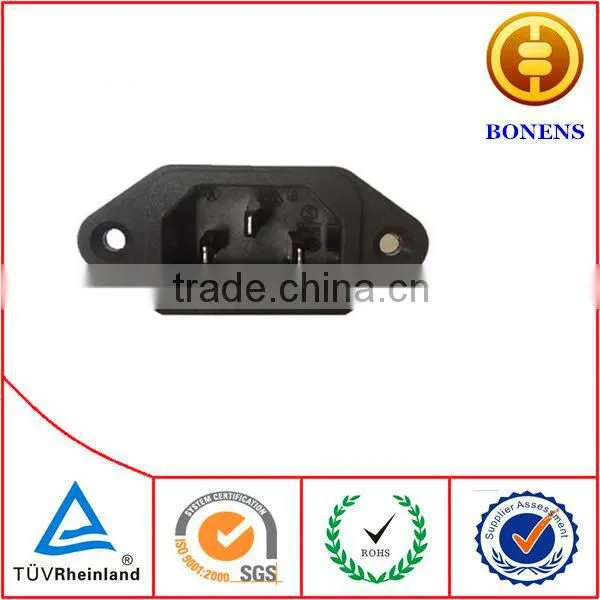

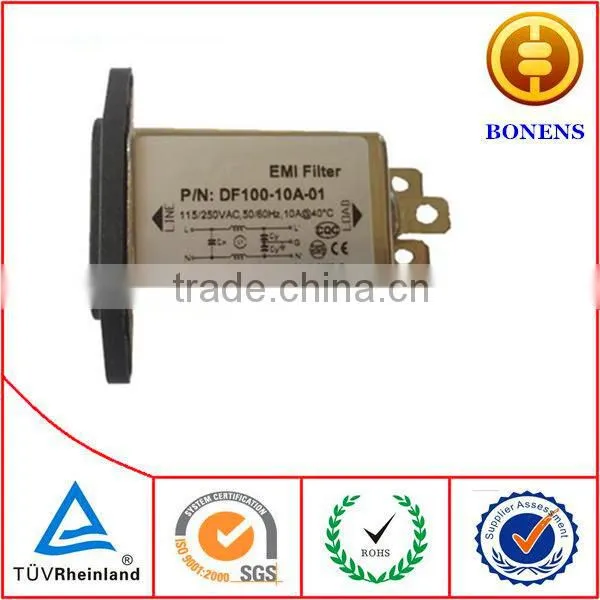

Products photo:
Our other products:
Our factory photoes:
Please contact me to check more details:
Lucy Jiang
Skype:aimee.jiang122
QQ: 2228156427
Mobile:+86-18030517459
E-mail:Mslucy_Tongyuexin @
Outline Drawing(mm):
Outline Drawing(mm):
