Andalusite Refractory Brick HD

Andalusite Refractory Brick HD thumbnail-1
Andalusite Refractory Brick HD thumbnail-2
Andalusite Refractory Brick HD photo-1
Andalusite Refractory Brick HD photo-2
US$ 1 - 7 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
China
Shape:
Brick
Material:
Alumina Block
Contact Supplier Request Quote Chat Now
Qingdao Fame Rise Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QING Dao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Shape Brick
Material Alumina Block
SiO2 Content (%) 0%
Al2O3 Content (%) 53%
MgO Content (%) 0.1%
CaO Content (%) 0.1%
CrO Content (%) 0.1%
SiC Content (%) 0%
Model Number Andalusite refractory brick HD
Brand Name FAME RISE

Specifications

We can supply Andalusite refractory brick HD ,Alumina hollow ball brick acid resisting brick, refractory brick.

Andalusite refractory brick  HD  Detailed Product Description

Andalusite refractory brick  HD , Acid resisting brick , high alumina brick, silica brick, fire brick, fire clay brick, alumina bubble brick, Corandum Brick

Our company passed ISO 9001 quality certificate in the year 2000. With the aid of stringent quality assurance systems, powerful technology & advanced equipments, our products enjoy good reputation in the world.

The acid resiting brick have the most competitive price,good quality,safty packing,prompt delivery time,and excellent after-sales services.

Lower ferric Oxide,lower porosity,higher refractoriness,higher density,higher CCS and exact tolerance.
Andalusite refractory brick HD Specifications:

Andalusite refractory brick  HD with the following specifications:



Item:

HB

HD

HS

DE

Al2O3 %

≥65

≥53

≥57

≥55

Fe2O3 %

≤0.8

≤1.0

≤0.8



TiO2 %

≤0.5

≤0.6

≤0.5



K2O+Na2O %

≤0.6

≤1.2

≤0.6

≤1.2

≤0.6

≤1.2

≤1.0

Impurity %

≤0.7

≤0.7

≤0.7



Apparent porosity

≤20

≤20

≤20

≤24

Bulk density g/cm³

≥2.45

≥2.35

≥2.40

≥2.40

Cold crushing strength MPa:

≥50

≥40

≥40

≥40

Modulus of rupture MPa:

≥18

≥15



Refractoriness under load

T0.5≥1520

T2≥1630

T0.5≥1350

T2≥1490

T0.5≥1470

T2≥1580

T2≥1580

Creep% (0.2Mpa×50h)

1500×(2050)h

≤0.2

1350×(2050)h

≤0.2

1400×(2050)h

≤0.2

1450×(2050)h

≤0.2

Permanent linear change %

1500×4h

±0.2

1400×4h

±0.2

1500×4h

±0.2

1500×4h

±0.2

Thermal shock resistance(cycles)

≥20

≥20

≥20





  Andalusite refractory brick HD advantage:

 1. Good Cold Crushing Strength 2. High Refractoriness Under Load 3. Good Thermal Shock Resistance 4. Low Reheating Linear Rate It is the substitute of high alumina refractory brick. It is widely used in the important zones of the furnace.

 The service of the refractory brick HD :

We can guarantee the quality of the Andalusite refractory brick HD with the competitive price. We will try our best to satisfied the requirement of the customer about the Andalusite refractory brick HD products. We do not want to do the one-shot business of the Andalusite refractory brick HD . We also can provide some samples of the Andalusite refractory brick HD products .

The delivery of the samples of the   Andalusite refractory brick HD products:

Andalusite refractory brick HD

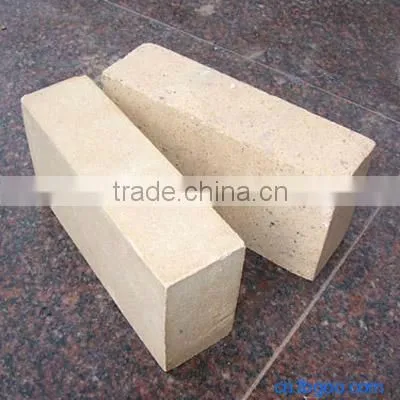

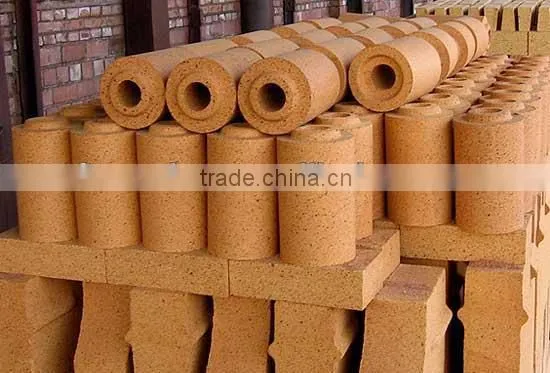

The picture of the   Andalusite refractory brick HD products:

Andalusite refractory brick HDAndalusite refractory brick HD



 Andalusite refractory brick HD
