ROHS 3362P 10k ohm trimpot variable resistor

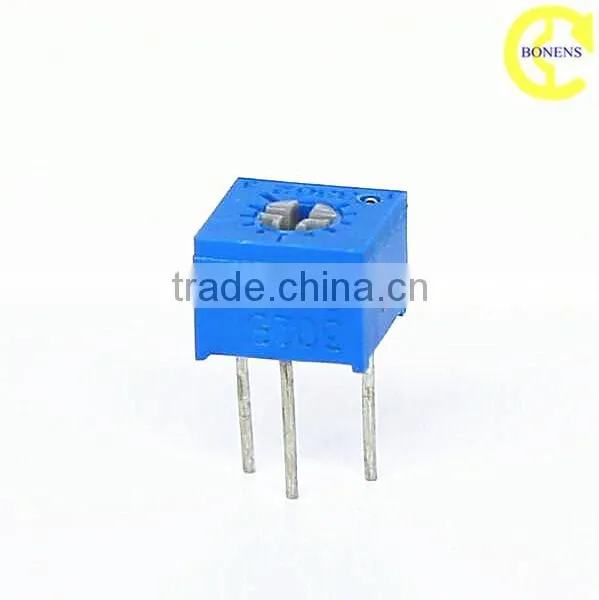

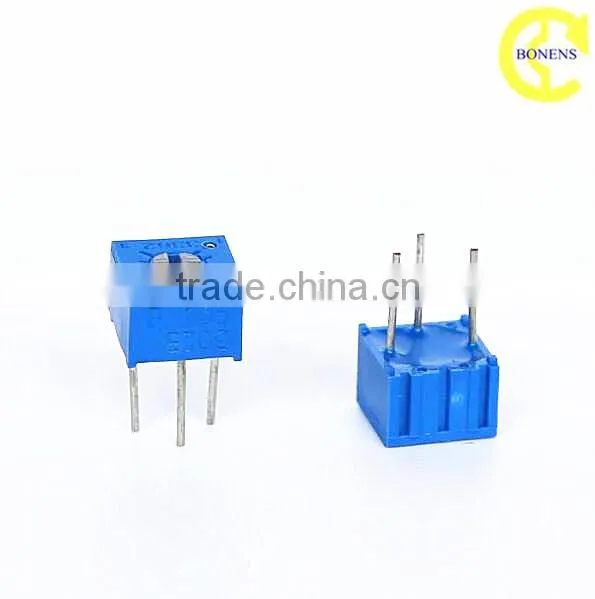

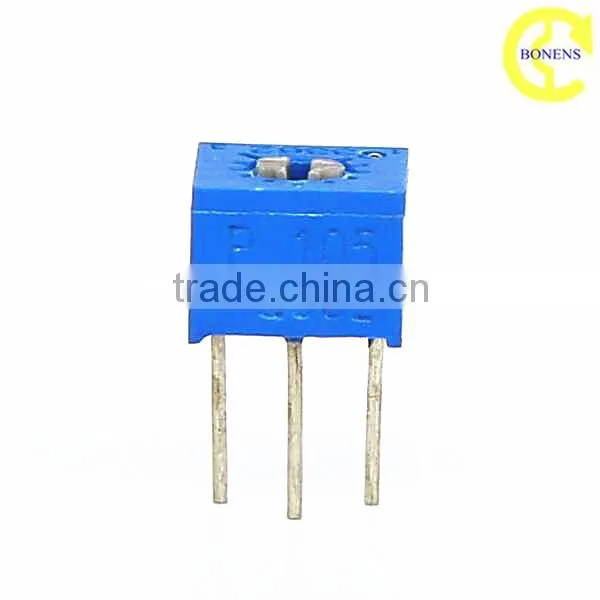

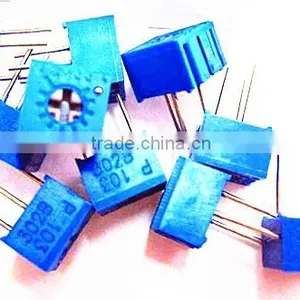

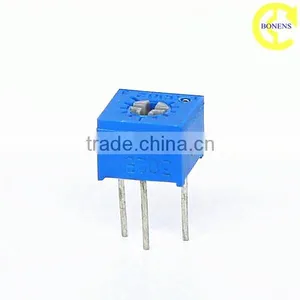

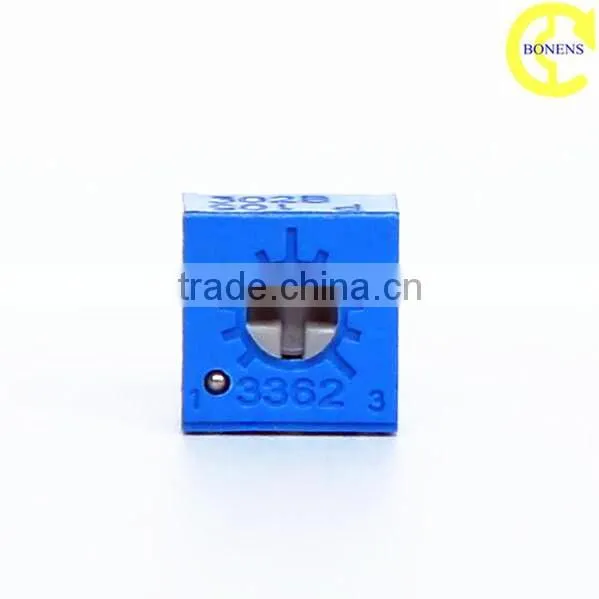

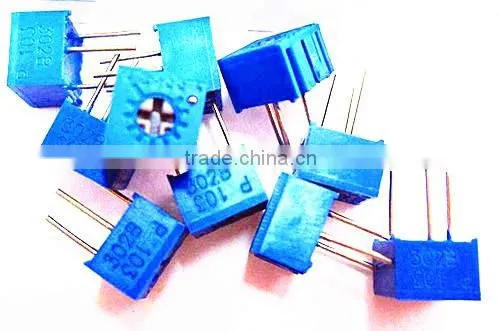

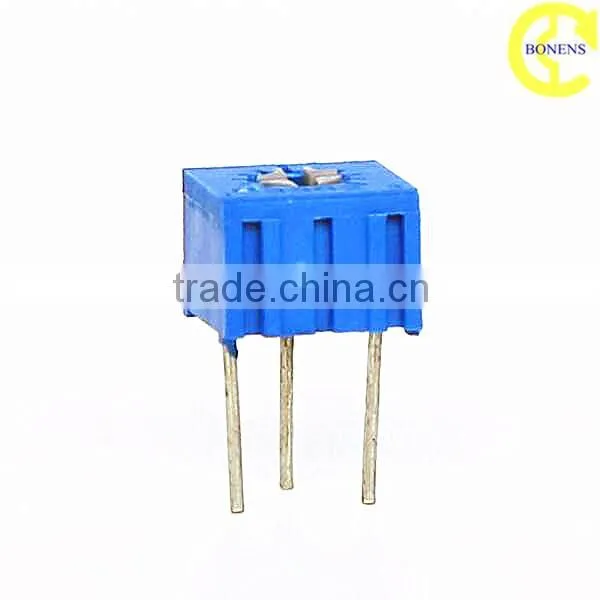

♦3362P trimpot Photoes:

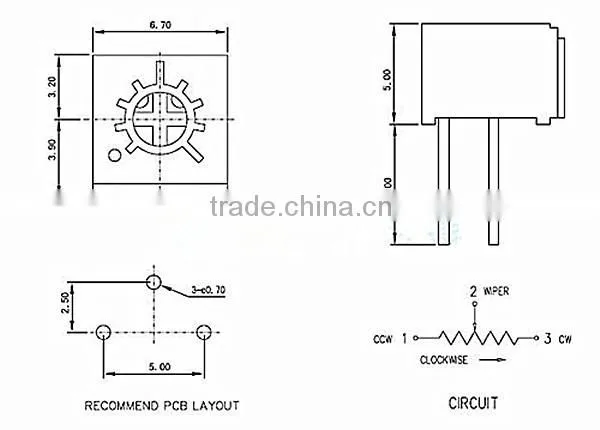

♦3362P trimpot Dimentions:
♦3362P trimpot Data Sheet:
| Electrical Characteristics |
Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω |
|||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
|||||
| Insulation resistance | ≥ 1GΩ (100V AC) |
|||||
| Withstand voltage | 500V (DC or AC peak value) | |||||
| Effective electrical travel | ≥200° |
|||||
|
Characteristics |
Rated power | 0.25W ( 300V max) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) |
ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ |
|||||
| Electrical endurance (0.25W, 1000h) |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
|||||
| Mechanical endurance (200 cycles) |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) |
Insulation Resistance≥100MΩ |
|||||
| Physical Characteristics |
Total mechanical travel | 260°±10° | ||||
| Starting torque | ≤20mN.m |
|||||
| Stoper torque | ≥50mN.m | |||||
| Standard package | 50 pcs /tube | |||||
Q1: How about your experience?
A1: We have our own professional factory and R&D department
Q2:What's your your advantage?
A2:(1) More than 12 Years Manufactuer Experience in potentiometer&resistor&EMI filter&knobs
(2) 8 years of Alibaba Gold Supplier.
(3) Factory Price and OEM Provide.
(4) Credit guarantee combination: US $28000
(5) TUV ROHS ISO9001
(6)Samples:1~5 pcs free
Q3: How to ensure the quality of the product?
A3: The safety certification of UL/CE/CQC/ROHS is a guarantee of quality.
100% QC inspection Before Shippment,Any problems we have after sales to help you to slove.
Att :Aimee jiang
Phone : +0086-18030517459
Skype : Aimee.jiang122
QQ : 2228156427
Wechat : wenwenjp2015
Interested in,Pls contact me freely.
