Specifications
pvc coated razor barbed wire,electric galvanized razor barbed wire,
hot dipped galvanized
razor barbed wire,
Anping county Nuojia high quality blade barbed wire
Advantages:
1.High security
Barbed razor wire with the sharp razor guarantees a high security whilst retaining high quality.
2.Long life
Razor wire material of stainless steel or hot-galvanized makes sure for long life and low maintenance.
3.Easy installation
Short sections needed for urgent security can be installed extremely fast and with little equipment, allowing repairs to be carried out without compromising perimeter security.
4.Assortment

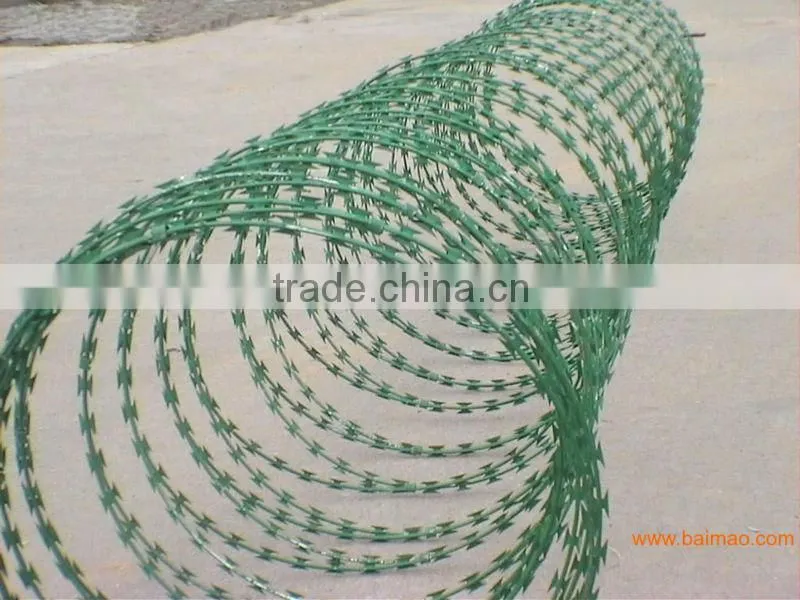

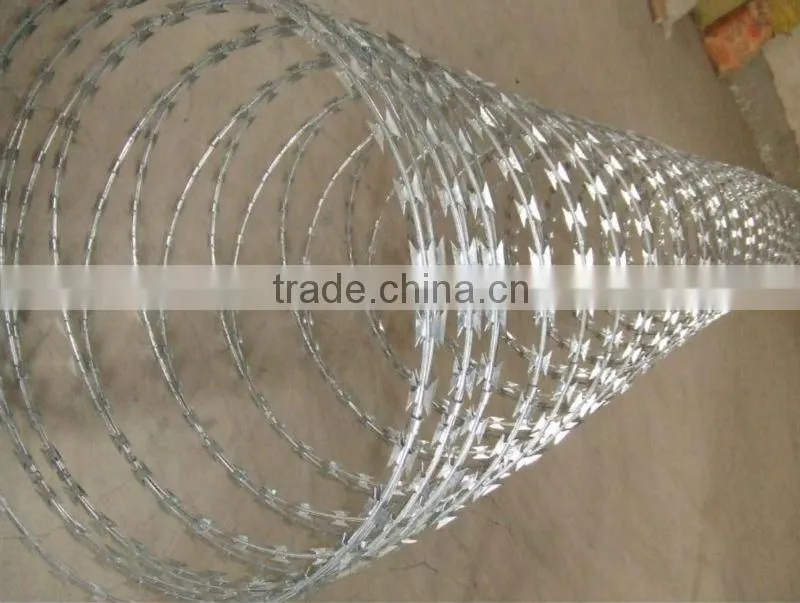

Razor wire concertina
The razor sharp barbed hooks of the razor wire and the small distances between the blades provide an effective protection.
The razor barded wire is both a formidable physical barrier and an excellent psychological deterrent. So it protects from the vandals to vulnerable sites, which like jail, military , airdrome, high security border barrier.
5.Barbed tape wire
The barbed tapes are able to be fitted to walls, fences or eaves without the need for heavy duty straining post, supports or cautionary wires.
6.Material
Stainless steel razor wire, Hot-dipped galvanized razor wire
7. Specifications
|
Blade specification |
Blade thickness |
Cor. Wire diameter |
Blade length |
Blade width |
Blade space |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
EX. dia |
loops |
Standard covering length |
Production model |
remarks |
450mm |
33 |
8m |
CBT-65 |
Single coil |
500mm |
41 |
10m |
CBT-65 |
Single coil |
700mm |
41 |
10m |
CBT-65 |
Single coil |
960mm |
53 |
13m |
CBT-65 |
Single coil |
500mm |
102 |
16m |
BTO-12,18,22 |
Cross type |
600mm |
86 |
14m |
BTO-12,18,22 |
Cross type |
700mm |
72 |
12m |
BTO-12,18,22 |
Cross type |
800mm |
64 |
10m |
BTO-12,18,22 |
Cross type |
960mm |
52 |
9m |
BTO-12,18,22 |
Cross type |
