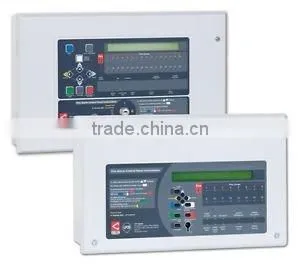

TC417 - C-TEC XFP510-32 NETWORKABLE REPEATER PANEL, 32 ZONES, FIRE ALARM CONTROL
US$ 300 - 375
MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Leicestershire, United Kingdom
Brand Name:
C-Tec
Model Number:
XFP510-32
Payment & Shipping
Payment Methods:
Port of Shipment:
UK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TC378 - C-TEC NC822KE 20 ZONE EMERGENCY MASTER PANEL 12VDC CALL SYSTEM ALARMUS$ 236 - 295MOQ: 10 Units -
TC375 - C-TEC NC812KE 10 ZONE EMERGENCY MASTER PANEL 12VDC CALL SYSTEM ALARMUS$ 172 - 215MOQ: 10 Units
-
TC382 - C-TEC NC842KE 40 ZONE EMERGENCY MASTER PANEL 12VDC CALL SYSTEM ALARMUS$ 414 - 518MOQ: 10 Units
-
TC380 - C-TEC NC832KE 30 ZONE EMERGENCY MASTER PANEL 12VDC CALL SYSTEM ALARMUS$ 299.5 - 374MOQ: 10 Units
-
TC416 - C-TEC XFP510-16 NETWORKABLE REPEATER PANEL, 16 ZONES, FIRE ALARM CONTROLUS$ 216 - 270MOQ: 10 Units
Place of Origin
Leicestershire, United Kingdom
Brand Name
C-Tec
Model Number
XFP510-32
Specifications
C-TEC XFP510-32 NETWORKABLE REPEATER PANEL, 32 ZONES, FIRE ALARM CONTROLProduct Description
• The ability to interconnect up to eight XFP main panels (any variant) onto a two wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to a non-networked XFP main panel
• Two independently programmable conventional sounder circuits
• Two programmable inputs
• Fault output relay and three programmable relay outputs with voltage free changeover contacts
• Three zone dependency functions (A, B & C to EN54-2 Clause 7.12)
• Day/night (building occupied/unoccupied) function
• Investigation delay period function
• Individual sensitivity settings for each device
• Phased evacuation and delays to outputs facility (to EN54-2 Clause 7.11)
• Alarm counter that records the number of times the panel has been in an alarm state (to EN54-2 Clause 7.13)
• Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop
• Integral EN54 switch mode PSU rated @ 185-260V a.c.50/60Hz (1.4A on 16 zone panel, 3A on 32 zone panel)
• Earth fault monitoring
• Push button access code or keyswitch entry to Access Levels 2 and 3 (depending on model purchased)
• Easy to read, 80 character back-lit display
• 40 characters of custom text per device
• 999 event monitoring
• Comprehensive test facilities (to EN54-2 Clause 10) and a wide range of maintenance & commissioning functions including auto-learn loops, monitor a point, test outputs, one man walk test and loop continuity test
• Intuitive Windows based upload-download PC program that allows the system to be programmed quickly and easily
