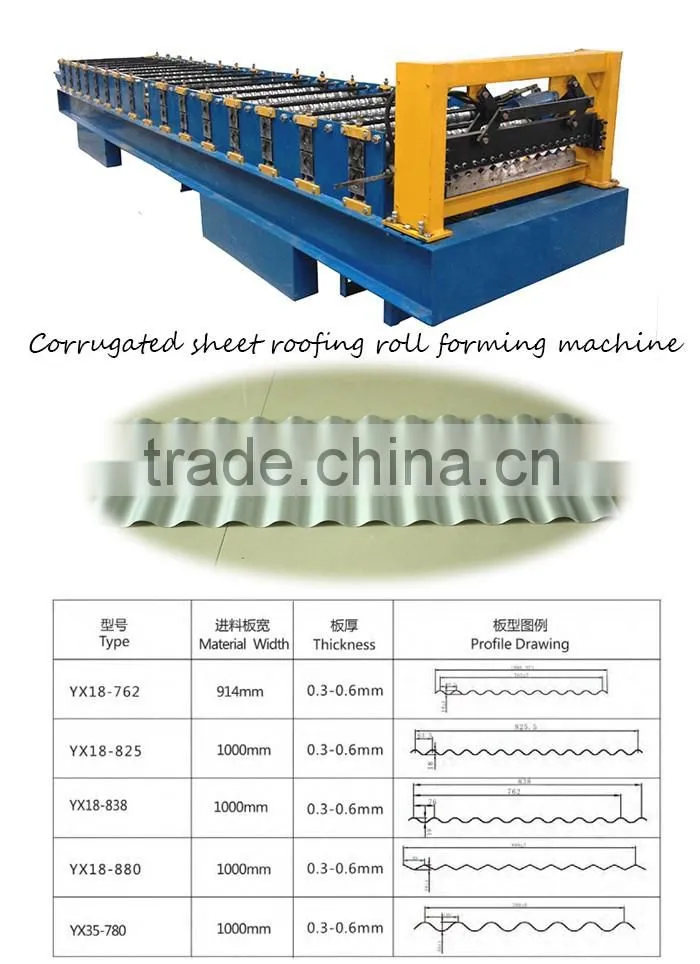

Corrugated iron roofing sheet roll forming machine made in China
1. Specifications of corrugated roof sheet making machine
1).Main Techincal Data:
| 1. | Model Number | YX18-762/838 |
| 2. | Size |
6000*1500*1500mm |
| 3. | Weight | 4000KGS |
| 4. | Motor Power | 5.5KW |
| 5. | Hydraulic Power | 2.2KW |
| 6. | Voltage | 380V/50HZ/3PH |
| 7. | Forming Steps | 16steps |
| 8. | Processing Speed | 8-12m/min |
| 9. | Thickness | 0.4-0.6mm |
| 10. | Feeding Material Width | 914mm/1000mm |
| 11. | Effective Width | 8762mm/838mm |
| 12. | Height of Roofing | 19mm |
| 13. | Material of blade |
Cr12 mould steel with quenched treatment 60-62℃ |
2). Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching
screen, cencorder and frequency changer)
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.
(8) Run Out Table.

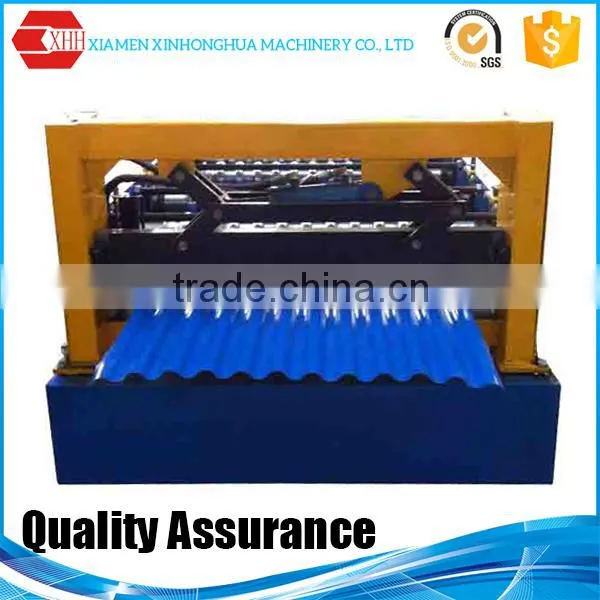

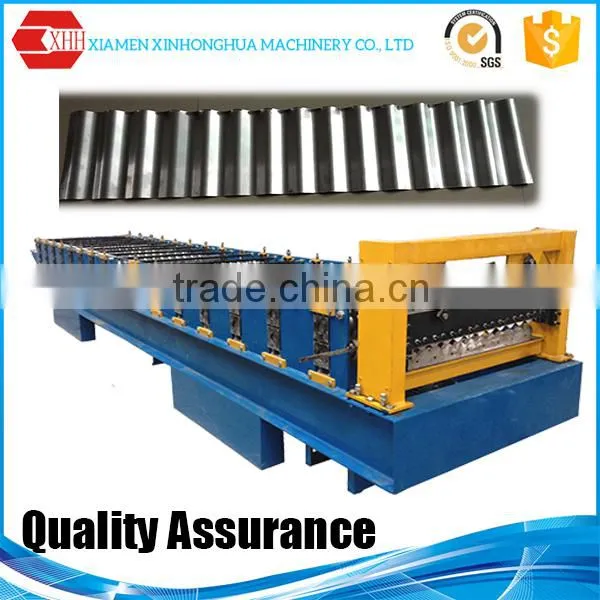

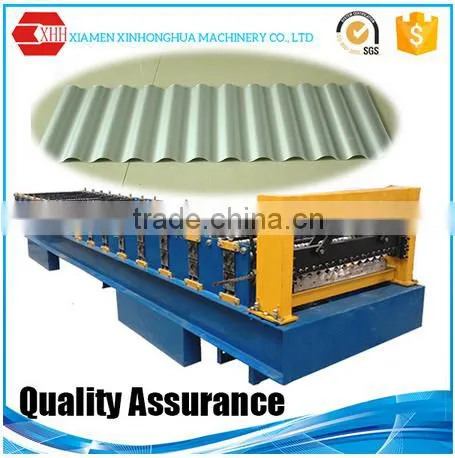

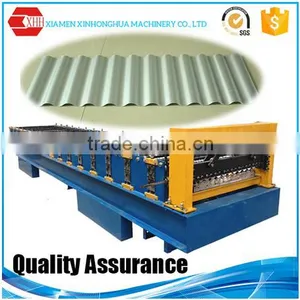

2. Pictures of corrugated roof sheet making machine
3. Certifications of Product
4. Applications of Product
5. Production Line of Product
6. More products for you to choose
color roofing machine Floor decking machine Standing seam roofing machine
7. Sample Rooms of Product
1.Our Company View
|
Xiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.
|
2.Our advantage
a.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.
b.Customers’design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c.Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.
e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
3. Certifications of Our Company
4. Exhibitions and Customers
Thank you for your attention!
