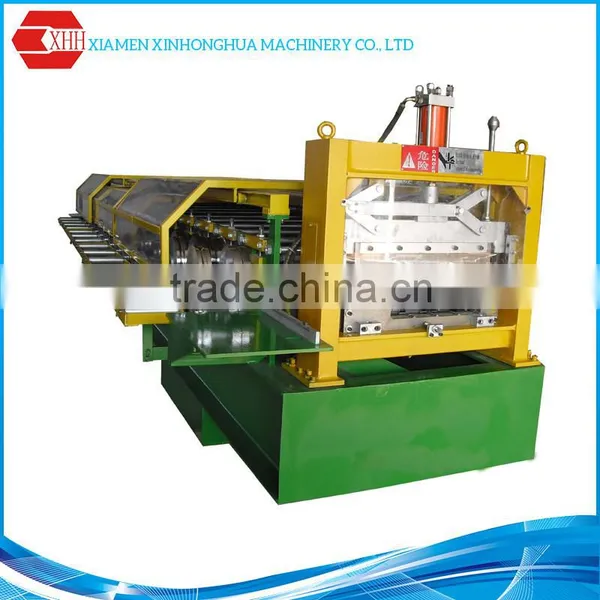

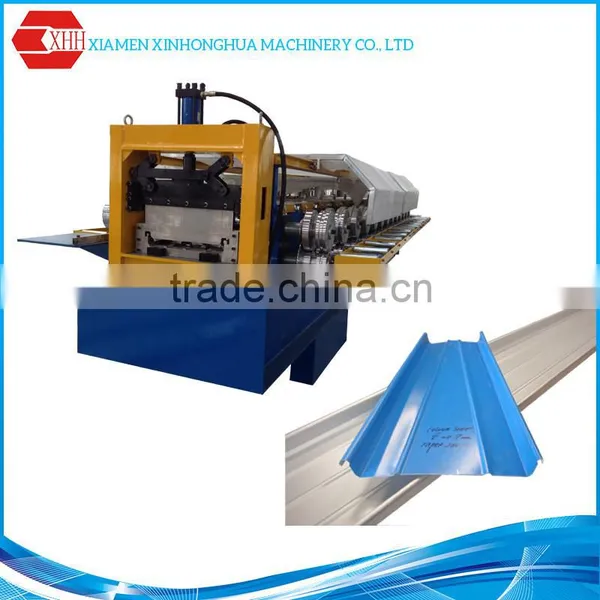

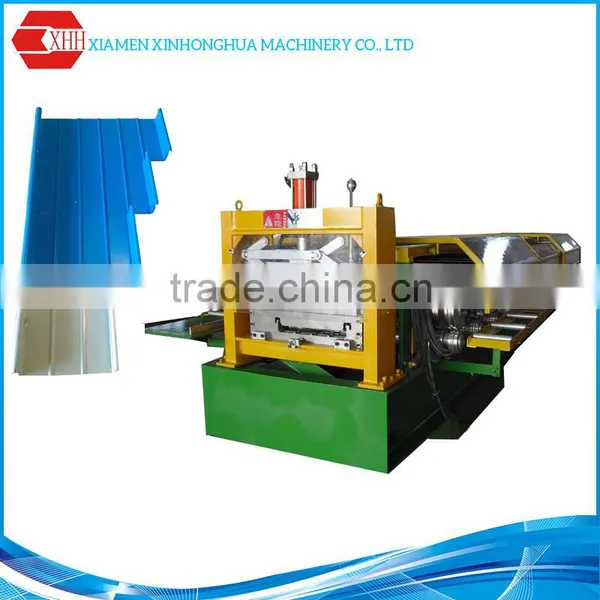

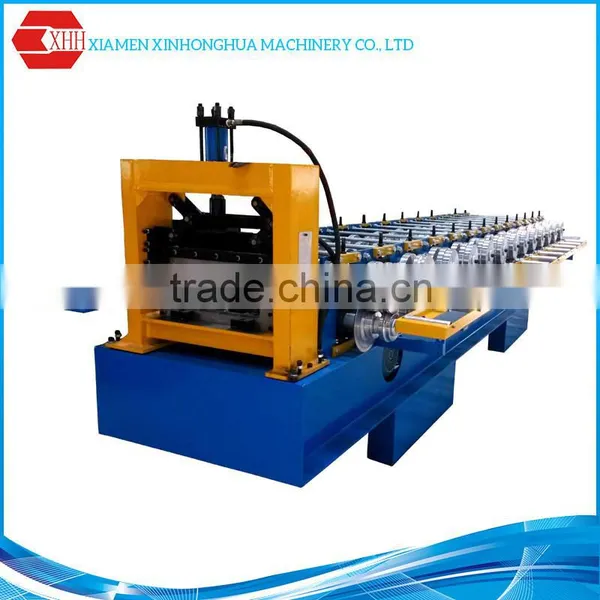

YX65-300-400-500 Roll Forming Machine For Standing Seam Roofing,rolling forming machinery
1. Specifications of rolling forming machinery
1)Main Techincal Data:
Details for YX65-300-400-500 Roll Forming Machine, Forming Machine and Roofing Forming
Machine for Bemo Straight and Tapered Standing Seam Roofing Panels as follows:
Main Technic Data:
| 1. | Dimension | 5800*1600*1400mm |
| 2. | Weight | 7000KGS |
| 3. | Motor Power | 7.5KW*2 sets |
| 4. | Hydraulic Power | 2.2KW |
| 5. | Voltage | 380V/50HZ/3PH |
| 6. | Forming Steps | 13 |
| 7. | Forming Speed | 8-14m/min |
| 8. | Effective Width | 300mm,400mm,500mm |
| 9. | Material of Width | 470mm,575mm,680mm |
| 10. | Material of AL-Mg-Mn,Galvanized Sheet Thickness | 0.4-1.0mm |
| 11. | Material of Colored Prepainted Sheet Thickness | 0.5-0.8mm |
| 12. | Material for All Roller | high grade no.45 forged steel,plated hard chrome and polished the rollers |
Main Accessories:
(1) Main Standing Seam Roof Panel Machine;
(2) 5 Tons Manual Decoiler;
(3) Hydraulic System;
(4) PLC Computer Controlling System with touch screen;
(5) Device for making taper standing seam roofing;
(6) Hydraulic Forming Cutter;
(7) Run out table;
(8)Manual Seamer;
(9) Tools;
Main Usage:
1. One machine can produce the straight standing seam roofing 300mm,400mm,500mm, and tapered standing seam roofings
2. Can automatically product variable width of roofing from 300mm to 500mm;
3.Widely use in the large project such as:railway station,airport , gymnasium etc.
4.Can product trapezoid roofing and straight roofing.
♦Feature: Can be packed and worked in one 20'GP or 40'GP shipping container, and , so can it saves much time, room and cost. Also can design and make the machine according to your demand.

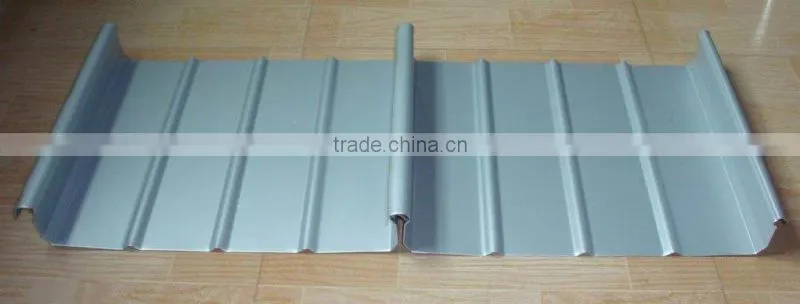

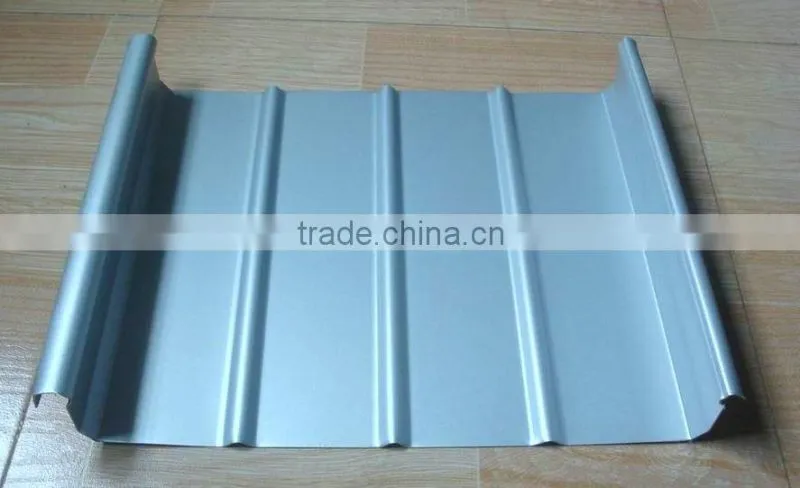

The sample plate for curving machine:

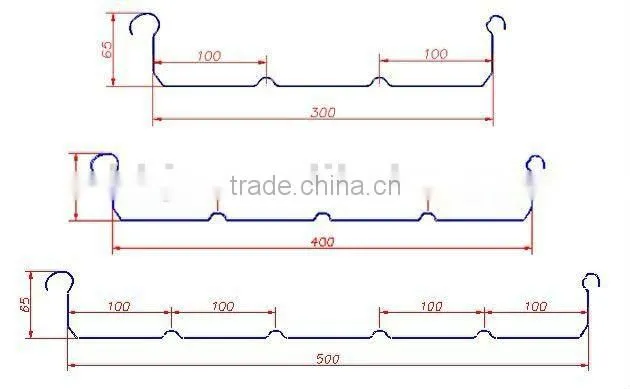

Profile drawing for YX65-300-400-500 standing seam roofing

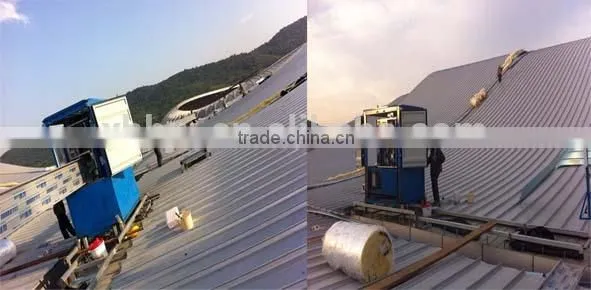

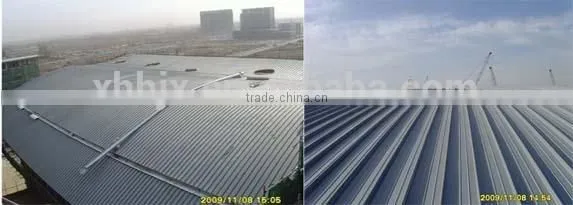

The Project for curving machine:
JINGZHOU CONVENTION CENTER :

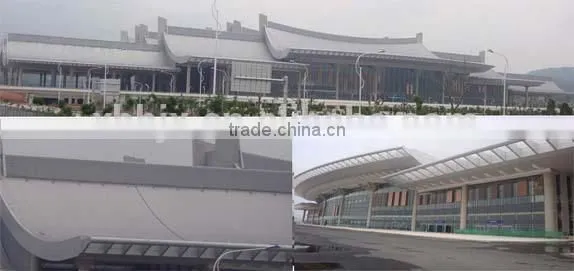

XIAMEN HIGH SPEED RAIWAY STATION:
BAOTOU INTERNATIONAL CONVENTION CENTER
Standing seam roofing forming machine with 20'GP container
2. Pictures Of rolling forming machinery
3. Certifications of Product
4. Applications of Product
5. Production Line of Product
6. More products for you to choose
color roofing machine Floor decking machine Standing seam roofing machine
7. Sample Rooms of Product
1.Our Company View
|
Xiamen XinHongHua Machinery Co., LTD.is specialized in design and manufacture roll forming machines for 15 years. With developing technical and various experience, our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine, Floor Decking Machine and Highway Rail Forming Machines, etc.
|
