12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor

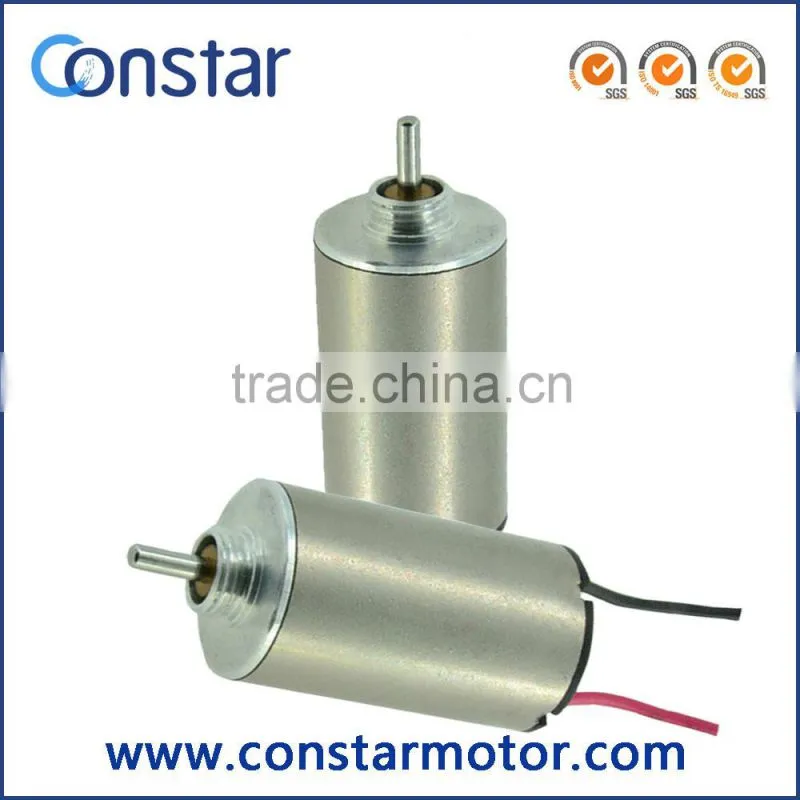

12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor thumbnail-1

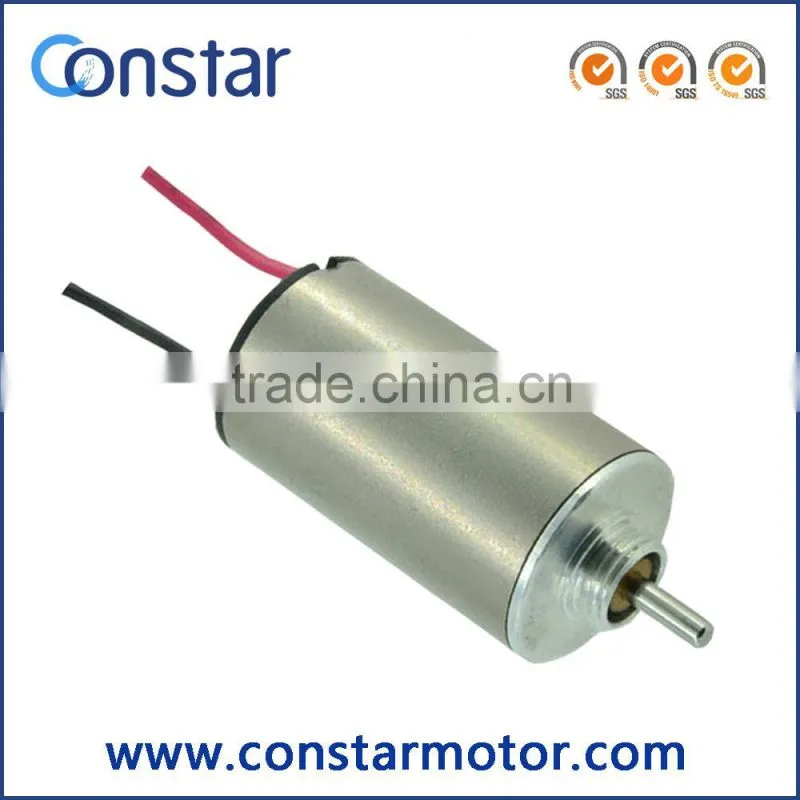

12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor thumbnail-2

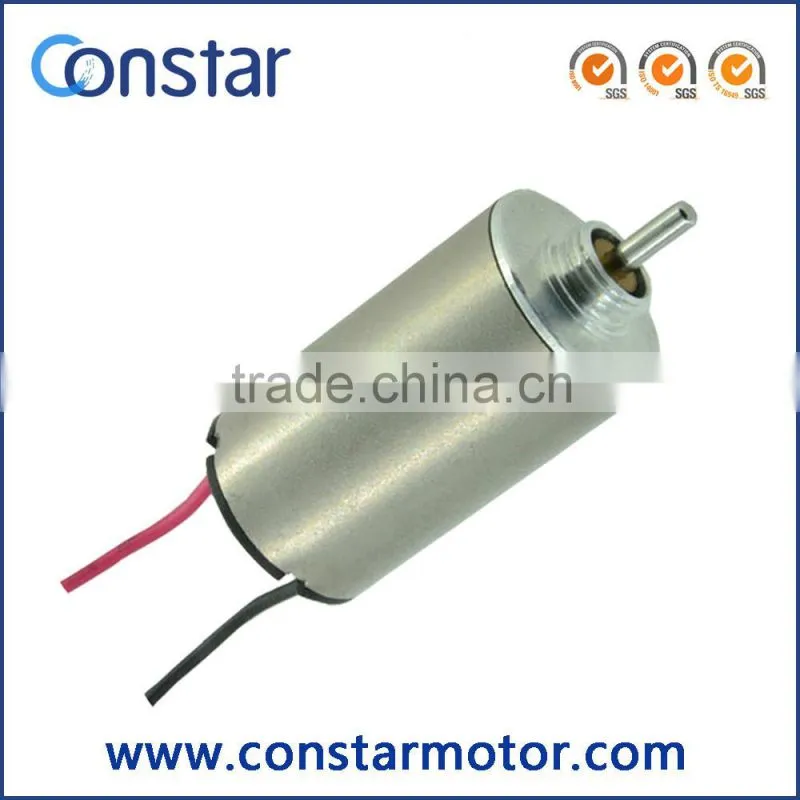

12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor thumbnail-3

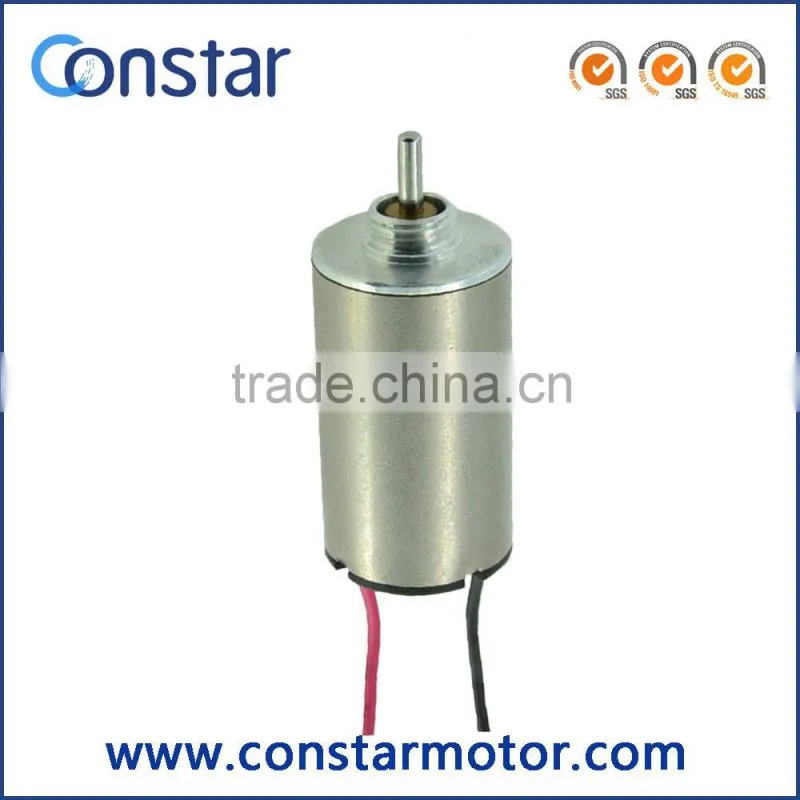

12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor thumbnail-4
12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor photo-1
12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor photo-2
12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor photo-3
12*20mm 3v Small Precision High Rpm Electric Motor,DC Coreless Micro Motor photo-4
US$ 0.6 - 2 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Constar
Model Number:
1220RCN -1-3.3
Contact Supplier Request Quote Chat Now
Constar Micromotor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Constar
Model Number 1220RCN -1-3.3
Usage Other, medical,health care and industrial automation., medical,health care and industrial automation.
Certification CE, ROHS
Type Micro Motor
Torque 0.5mNm
Construction Other, precious metal commutation, Permanent Magnet
Commutation Brush
Protect Feature Totally Enclosed
Speed(RPM) 5780rpm
Continuous Current(A) 137mA
Output Power 0.39W
Voltage(V) 3.3V
Efficiency Other, *

12*20mm 3v small precision high rpm electric motor,DC coreless micro motor



1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment


2.Operating Environment:  -10~+60°C; 15~90%RH


3.Characteristics:

The following are our standard products, we also provide customized products and service.



Series

Performance

Code

Commutation Structure

Dimension

(mm)

Voltage

(V)

Termanal resistence (Ω)

No-load

Speed

(rpm)

No-load

Current

(mA)

Load

Torque

(mNm)

Load

Speed

(rpm)

Load

Current

(mA)

1220RCN

26-3.3

Precious Metal

Φ12*20

3.3

6.9

7900

12

0.5

5780

137

27-6.0

Precious Metal

Φ12*20

6

6.5

11500

30

1.3

8400

271

28-12.0

Precious Metal

Φ12*20

12

12

11500

8

2.2

8940

229



4. Options:   Lead wires length, shaft length, special coils, gearheads, encoder.



5,Outline Drawing:

12*20mm 3v small precision high rpm electric motor,DC coreless micro motor



6,Photo:

12*20mm 3v small precision high rpm electric motor,DC coreless micro motor12*20mm 3v small precision high rpm electric motor,DC coreless micro motor12*20mm 3v small precision high rpm electric motor,DC coreless micro motor12*20mm 3v small precision high rpm electric motor,DC coreless micro motor
