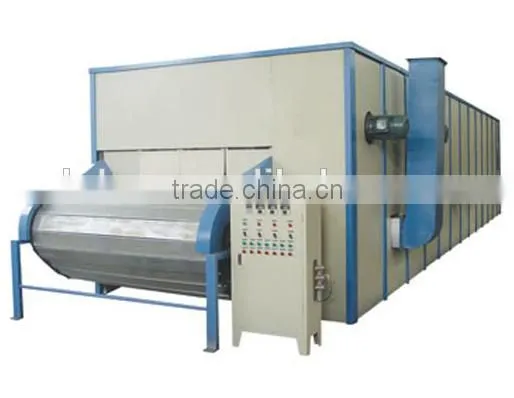

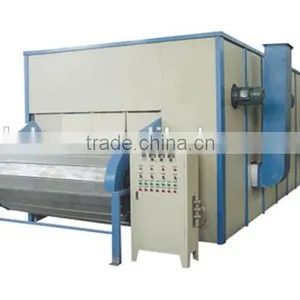

HD B061 Automatic Temperature Control
Loose Fiber Dryer
Application
This machine is suitable for continuously drying the loose fiber such as wool, chemical fiber, cotton, jute, acrylic, ect.
Main Technical parameter
1. Type: Continuously drying
2. Entrance & exit height of carrier plate: 1196.5 mm
3. Efficient width of carrier plate: 1768mm.
4. Efficient area of carrier plate: 20.5m2
5. Moving speed of carrier plate: 0.137—0.92m/min, frequency control.
6. Heat dispersing area: 138m2
7. Steam working pressure: 4kg/cm2
8. Heating mode: Spiral type
9. Oven temperature: six sets of oven, 65~108 degree, controllable (standard model)
10. Moisture regain after drying: 10~13%
11. Rotation speed of rotating speed: 100rpm.
12. Air Quantity of fan: air quantity of upper fans are around 8000 m3/h; air quantity of lower fans are around m³/h.
13. Drive mode: Lattice (customizable), AC variable frequency speed regulation.
14. Shape size: LWH 12775*3650*2735.
15. Production rate: above 110 kg/h.
