Specifications
1.Spray hank dyeing machine2.low consumption
3. large flow
4. low liquor ratio

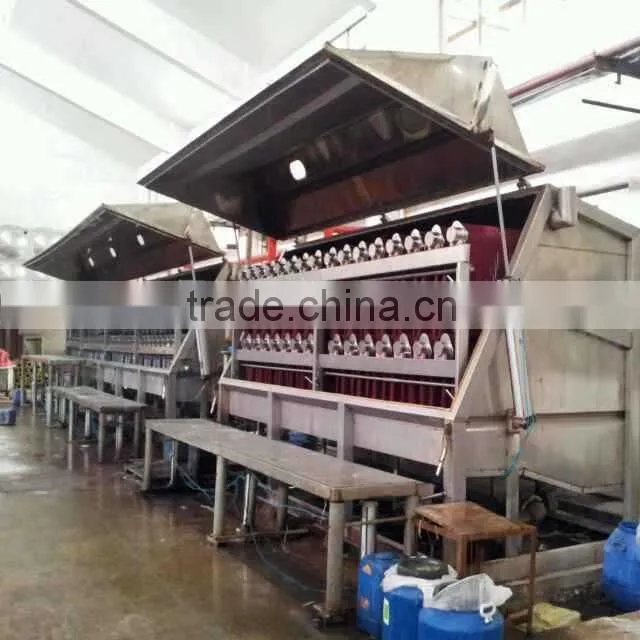

SH series Jet hank dyeing machine
Machine Features
1. It is the best suitable for later dealing with twisted exposed silk, single fine yarns, man-made silk, silky cotton silk, silk fabrics, pure silk, and fine wool, it is also the best suitable for their being bleached, refined, dyed and washed in water.
2.This special machine is designed to be low energy-long, low lift, and large quantity flowing. when working under high temperature, it could keep its characteristic.
3.It is three in one that concludes new mode weir floating adjuster, dyeing pipe and moving yarns pipe. And the dyed mustn’t be twisted or knotted absolutely. It could be poured easily after it was dyed, and it has low losing-rate.
4.The water adjuster with special design can adjust water to high or low wantonly. According to the quantity of dyeing yarns, the number of single yarn and its sorts.
5.It has low bathing-ratio, which makes it save materials and reduce the cost by way of improving its structure.
Technical Specification
Model |
Carrying amount |
General Power |
Appearance size |
Wight |
||
L(mm) |
W(mm) |
H(mm) |
||||
SH-1-65 |
3 |
1.1 |
1050 |
1950 |
2020 |
820 |
SH-2-65 |
7 |
1.1 |
1325 |
1950 |
2020 |
1200 |
SH-2-120 |
14 |
1.5 |
1325 |
2150 |
2500 |
1400 |
SH-4-120 |
28 |
3 |
2000 |
2150 |
2500 |
1800 |
SH-6-120 |
42 |
4 |
2500 |
2200 |
2500 |
2400 |
SH-10-150 |
100 |
5.5 |
3750 |
2960 |
2650 |
3000 |
SH-20-150 |
200 |
11 |
6000 |
3150 |
2700 |
4500 |
SH-30-150 |
300 |
18.5 |
9000 |
3250 |
2700 |
5600 |
SH-40-150 |
400 |
22 |
11800 |
3250 |
2700 |
6800 |
SH-50-150 |
500 |
30 |
14300 |
3250 |
2750 |
9500 |
SH-60-150 |
600 |
30 |
17500 |
3300 |
2750 |
11340 |
SH-80-150 |
800 |
37 |
22800 |
3300 |
2750 |
13800 |
SH-100-150 |
1000 |
45 |
28500 |
3300 |
2750 |
16000 |
SH-30×2-150 |
600 |
37 |
9000 |
7000 |
2700 |
12500 |
SH-40×2-150 |
800 |
44 |
11800 |
7000 |
2700 |
14500 |
SH-50×2-150 |
1000 |
60 |
14300 |
7000 |
2750 |
19500 |
SH-60×2-150 |
1200 |
60 |
17500 |
7000 |
2750 |
23000 |
SH-80×2-150 |
1600 |
74 |
22800 |
7000 |
2750 |
28000 |
SH-100×2-150 |
2000 |
90 |
28500 |
7000 |
2750 |
32500 |
