Aquajet Hose Reel Irrigation Systems
| ||
|
|

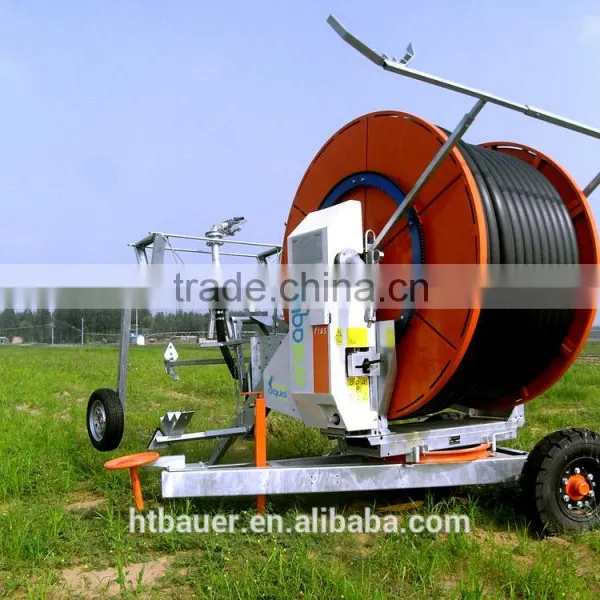

Hose reel irrigation systems consist of a wheeled cart with a large sprinkler (commonly being called "gun" or "big gun"), the basic machine unit with a hose reel and an irrigation hose.
|
|
| The professional irrigator for medium and large areas. |
|

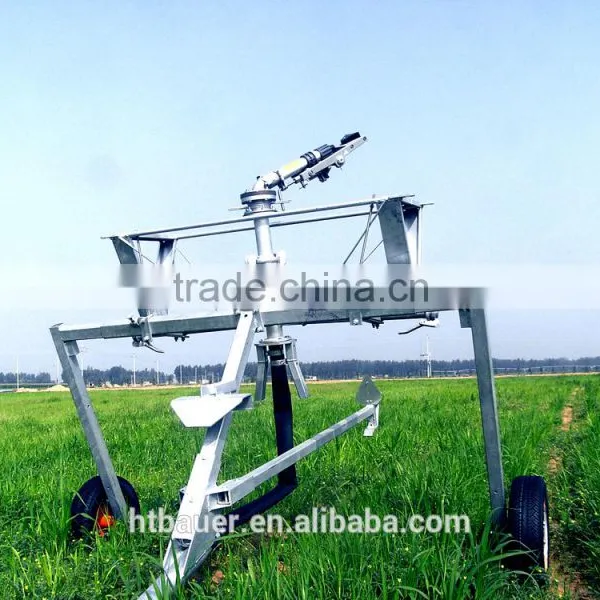

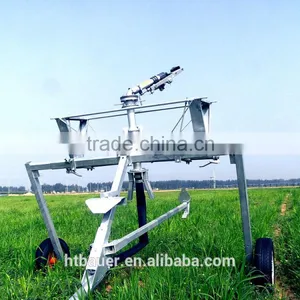

The wheeled cart (also sprinkler cart) is pulled by PE pipe during operation.
There are two models of hose reel irrigation system, that are sprinkler model and boom model (with wings). |
|
|
Sprinkler Model
Applies a big volume sprinkler and provides well-distributed water jet. Up to 90 strip width. |
|
|
Features and Advantages
| ||
|
Functional design Based on BAUER’s seventy-year-old experiences on design and production; Latest technology with maximum value in price related performance; Modular construction
|
Anti-Corrosion protection Hot-dip galvanized undercarriage, turntable, sled and shut-off frame provide lasting anti-corrosion protection.
|
Stable pipe reel The pipe drum is a particularly torsion resistant construction of profiles and edged segments. All cover segments are firmly welded on the drum frame. |
|
| ||
|
Precise chain drive The chain drive is manufactured with lowest tolerances to ensure a maintenance free operation for a long time of use even at high retraction forces.
|
Layering mechanism for constant PE-pipe rewinding This mechanism guarantees a constant retraction speed and prevents damages to the machine by an instant emergency shut-off functionality.
|
Sturdy support frame Strong support legs and rack jack firmly anchor the Aquajet during the operating process and even at high retraction forces.
|
|
Turbine TX 20 The structure of axial turbine reduces requirements of energy considerably and energy needed when it is operated with low pressure. It keeps fast rewinding speed even at low water flow rates. The integrated precision control system makes uniform precipitation on entire strip length possible. |
|
|

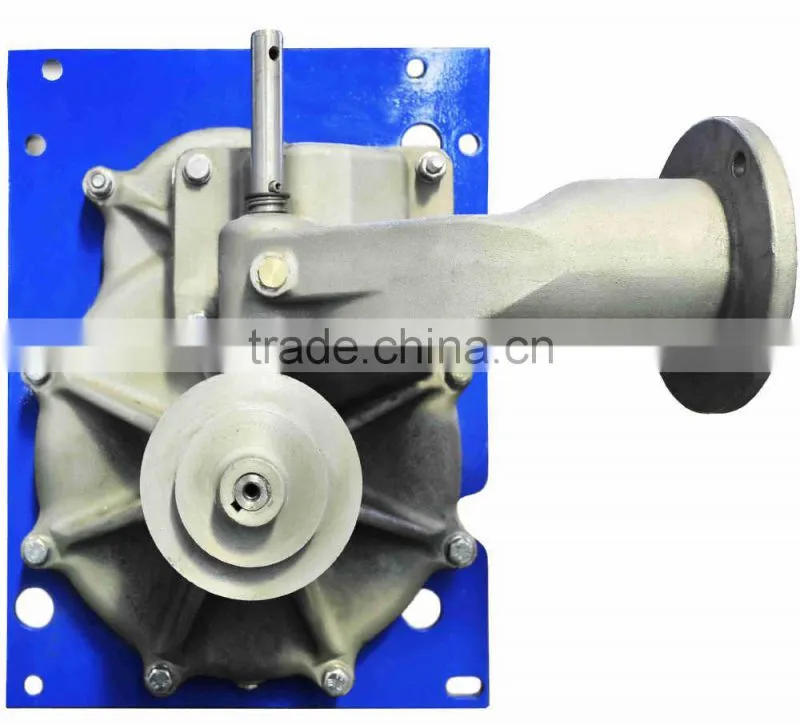

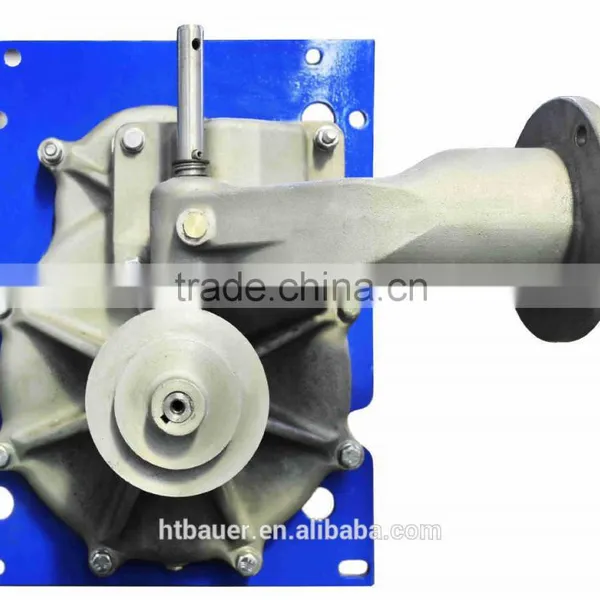

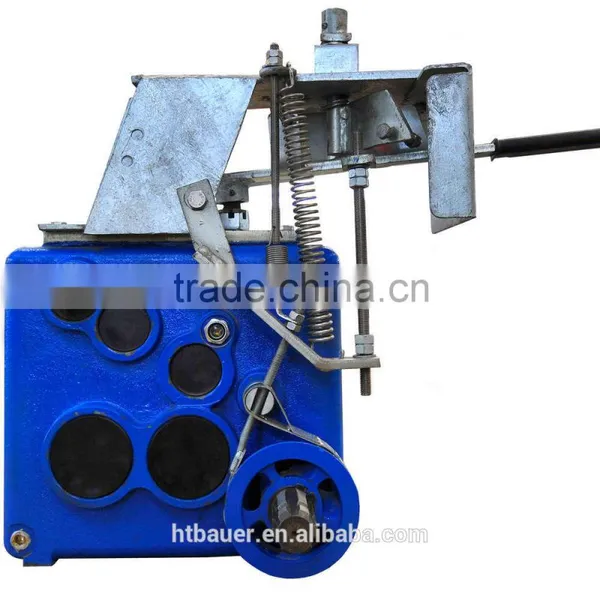

Two-speed gear-box It is highly simplified in operation. The smart and automatic control and the transmission sensor provide you an optimum performance for desired retraction speed and irrigation volume. |
|
|
Automatic cart lift The cart is automatically lifted to its transportation position at the end of irrigation, eliminating extra cart handling requirements. |
|
|
TWIN wide-range sprinkler TWIN SR 101 wide-range sprinklers are specifically designed for the modern, water and energy-saving irrigation management. |
|
Crop-protecting sprinkler balancing mechanism A pendulous mount guarantees the correct positioning of the sprinkler on uneven terrain, preventing crop damage by the water jet. |
|
|
|
Digital speedometer For precise retraction speed and water flow measurement. |
|
PE-pipe The PE-pipe production utilizes the latest technology to guarantee a maximum in density and durability. |
|
|
|
Comfortable operation Hot-dip galvanization of undercarriage and sprinkler cart provides lasting value by optimum protection of metal parts. |
a) Put the irrigator on the one end of the field.
b) Pull the pipes which wrapped on the reel and the spraying cart connected with pipes to the other end of the field with tractor.
c) Connect the pipes with water and get certain water pressure, then the spraying cart can irrigate. At the mean time, the machine drives the reel by the mechanical kinetic energy which made by water turbine, gearbox and transmission system working. The rotation of reel makes pipes rewinding from the end of field to the machine.
d) And then the reel ratates and the spraying cart moves back at designed speed. The cart sprays water while walking until it finishes the whole irrigation.
e) When the spraying cart travels back to the machine, the machine can lift the cart and fix it on the machine. And now the whole irrigation has been finished.
f) Cut the water. The machine can be moved to another field and irrigate.
Basic unit |
Model |
PE-pipe lengthm |
Max.strip lengthm |
Flow ratem3/h |
Weight KG |
Connection pressure bar |
Medium |
65-220TX |
220 |
2×260 |
13 - 32 |
1270 |
3.5 - 10.0 |
65-250TX |
250 |
2×290 |
13 - 32 |
1300 |
3.5 - 10.0 |
|
65-300TX |
300 |
2×340 |
13 - 32 |
1350 |
3.5 - 10.0 |
|
75-200TX |
200 |
2×250 |
13 - 50 |
1330 |
3.5 - 10.0 |
|
Large |
65-340TX |
340 |
2×380 |
13 - 28 |
1570 |
3.5 - 10.0 |
75-250TX |
250 |
2×300 |
13 - 50 |
1530 |
3.5 - 10.0 |
|
75-270TX |
270 |
2×315 |
13 - 45 |
1550 |
3.5 - 10.0 |
|
75-300TX |
300 |
2×345 |
13 - 38 |
1600 |
3.5 - 10.0 |
|
85-200TX |
200 |
2×250 |
13 - 60 |
1550 |
3.5 - 10.0 |
|
|
|
|
|
|
|
|
X-Large |
75-320TX |
320 |
2×365 |
13 - 38 |
1740 |
3.5 - 10.0 |
75-350TX |
350 |
2×390 |
13 - 38 |
1780 |
3.5 - 10.0 |
|
75-400TX |
400 |
2×435 |
13 - 30 |
1880 |
3.5 - 10.0 |
|
85-300TX |
300 |
2×350 |
13 - 55 |
1800 |
3.5 - 10.0 |
|
85-320TX |
320 |
2×365 |
17 - 52 |
1880 |
3.5 - 10.0 |
|
90-230TX |
230 |
2×280 |
17 - 65 |
1740 |
3.5 - 10.0 |
|
90-250TX |
250 |
2×300 |
17 - 65 |
1770 |
3.5 - 10.0 |
|
90-280TX |
280 |
2×320 |
17 - 65 |
1820 |
3.5 - 10.0 |
|
90-300TX |
300 |
2×350 |
17 - 65 |
1850 |
3.5 - 10.0 |
|
