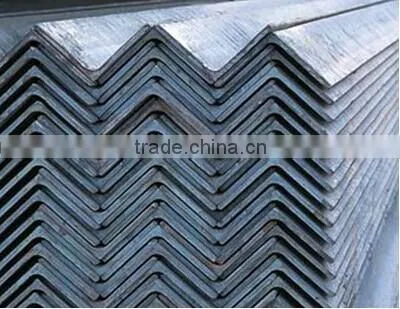

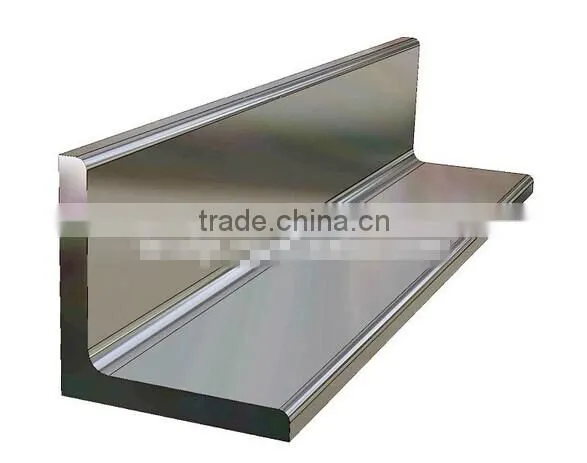

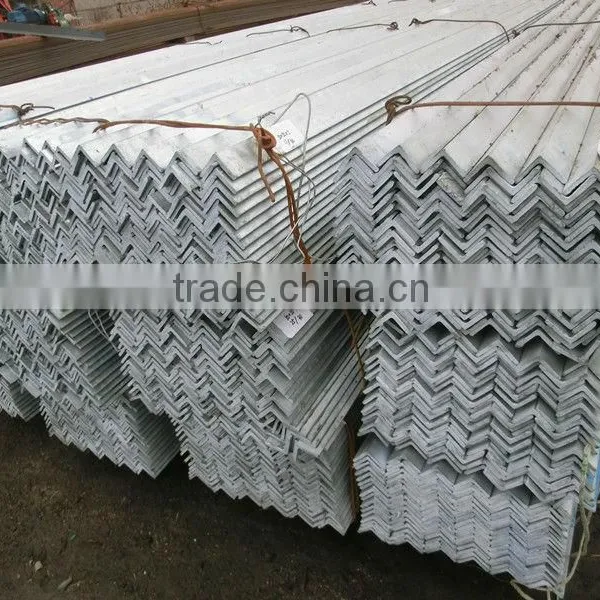

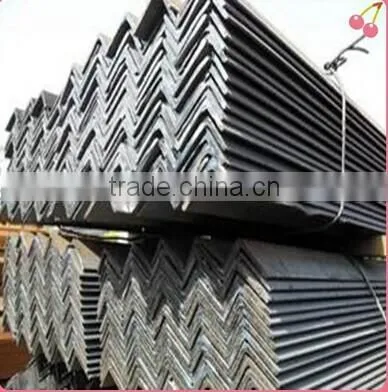

Help CenterAngel Steel With Complete Specifications and Colors
Related Products
-
Galvanized Steel SheetUS$ 400 - 1,000MOQ: 10 Metric Tons -
TOP QUALITY !!! IPE BEAMUS$ 500 - 800MOQ: 10 Metric Tons
-
Corrugated Steel Sheet With Quality AssuranceUS$ 400 - 800MOQ: 10 Metric Tons
-
SS400/Q235 HOT ROLLED STEEL PLATEUS$ 400 - 800MOQ: 10 Metric Tons
-
HOT SALE!!! COLORED CORRUGATED ROOFING SHEETUS$ 400 - 800MOQ: 10 Metric Tons
Specifications
1.size:25-200mm2.Dimensions:20x20-250x250mm
3.Grade:SS400, SS420, Q235B, Q345B
4.Payment:T/T;L/C
5.Certificate:ISO9001;2000
PRODUCT DESCRIPTION
Model |
Model(MM) |
TheoreticalWeight(KG/M) |
3.2/2 |
32*20*4 |
1.522 |
4/2.5 |
40*25*3 |
1.484 |
40*25*4 |
1.936 |
|
4.5/2.8 |
45*28*3 |
1.687 |
45*28*4 |
2.203 |
|
5/3.2 |
50*32*3 |
1.908 |
50*32*4 |
2.494 |
|
|
5.6/3.6
|
56*36*3 |
2.153 |
56*36*4 |
2.818 |
|
56*36*5 |
3.466 |
|
6.3/4 |
63*40*4 |
3.185 |
63*40*5 |
3.92 |
|
63*40*6 |
4.638 |
|
63*40*7 |
5.339 |
|
7.5/5 |
75*50*5 |
5.818 |
75*50*6 |
6.905 |
|
75*50*8 |
7.976 |
|
75*50*10 |
11.089 |
|
9/5.6 |
90*56*5 |
5.661 |
90*56*6 |
6.717 |
|
90*56*7 |
7.756 |
|
90*56*8 |
8.779 |
|
10/6.3 |
100*63*6 |
7.55 |
100*63*7 |
8.722 |
|
100*63*8 |
10.949 |
|
100*63*10 |
12.142 |
|
10/8 |
100*80*6 |
8.35 |
100*80*7 |
9.656 |
|
100*80*8 |
10.946 |
|
100*80*10 |
13.476 |
|
11/7 |
110*70*6 |
8.35 |
110*70*7 |
9.656 |
|
110*70*8 |
10.946 |
|
110*70*10 |
13.476 |
|
12.5/8 |
125*80*7 |
11.066 |
125*80*8 |
12.511 |
|
125*80*10 |
15.474 |
|
125*80*12 |
18.33 |
|
14/9 |
140*90*8 |
14.16 |
140*90*10 |
17.475 |
|
140*90*12 |
20.724 |
|
140*90*14 |
23.908 |
|
16/10 |
160*100*10 |
19.872 |
160*100*12 |
23.592 |
|
160*100*14 |
27.247 |
|
160*100*16 |
30.835 |
|
18/11 |
180*110*10 |
22.273 |
180*110*12 |
26.464 |
|
180*110*14 |
30.589 |
|
180*110*16 |
34.649 |
|
20/12.5 |
200*125*12 |
29.761 |
200*125*14 |
34.436 |
|
200*125*16 |
39.045 |
|
200*125*18 |
43.588 |
