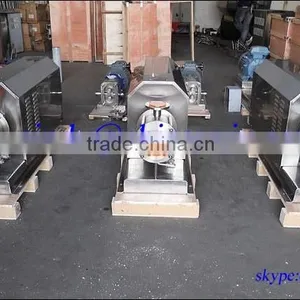

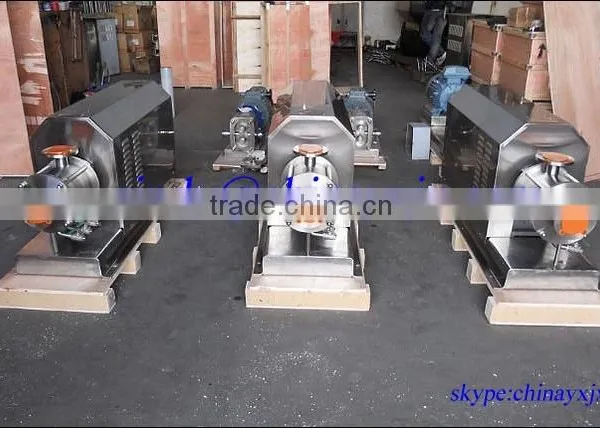

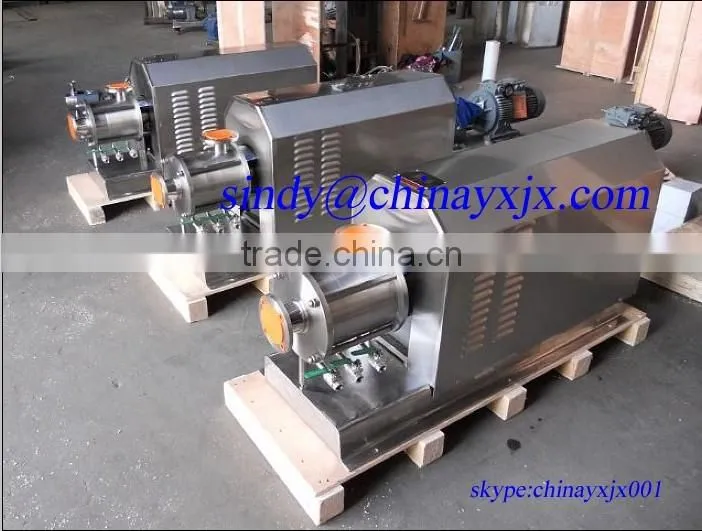

Help CenterInline High Shear Three Stage Homogenizer Pump
Related Products
-
Factory Price!!!! 3RP Series Stainless Steel Beer Sanitary Rotary Lobe Pump With Small Vibration and Low NoiseUS$ 500 - 1,200MOQ: 1 Set -
Cam Rotor PumpUS$ 500 - 1,200MOQ: 1 Set
-
Rotary Lobe Pump for CreamUS$ 500 - 1,200MOQ: 1 Set
-
YGJ Pneumatic High Shearing Homogenizer MixerUS$ 1,000 - 2,000MOQ: 1 Set
-
Colloid MillNegotiableMOQ: 1 Set
Specifications
1.inline high shear homogenizer2.precision finishing stator and rotor
3.speed 0-3000rpm
4.ss304/ss316L stainless steel
Description
Inline high-shear Homogneizer with precision stator and rotor,widely used in the area of bitum emuslion, modified asphalt emulsion, food, beverage, diesel emulsion, etc.
Features
- The grinding cavity is consists of three groups of stator and rotor (2 layers, 4 layers and 6 layers), highly working accuracy, large capacity and wide viscosity, more suitble for industrial on-line production.
- High shear emulsion pump is best emulsifying effect and top efficiency, more suitable for production which need high requirement for emulsifying, then it is the first choice for the micro-emuslion production.
- According to your PH, there are materials of ss304 and 316L for your choice.
- Adopting double mechanicial seal also can configure water protector
- It is elastic connection, low noisy and table performance.
- It can design jacket for cooling and heating.
1.Technical parameter
Model |
Power(kw) |
Capability(m3/h) |
Rotate speed (r/min) |
Entry diameter |
Exit diameter |
YX401/1/2 |
1.1 |
1 |
2900 |
Dn40 |
Dn |
YX401/1/4 |
1.1 |
1 |
2900 |
Dn40 |
Dn |
YX405/1/2 |
4 |
5 |
2900 |
Dn50 |
Dn50 |
YX405/1/4 |
4 |
5 |
2900 |
Dn50 |
Dn50 |
YX410/1/2 |
7.5 |
7 |
2900 |
Dn50 |
Dn50 |
YX410/1/4 |
7.5 |
7 |
2900 |
Dn50 |
Dn50 |
YX410/1/6 |
7.5 |
8 |
2900 |
Dn50 |
Dn50 |
YX425/1/2 |
18.5 |
10 |
1440 |
Dn80 |
Dn65 |
YX425/1/4 |
18.5 |
10 |
1440 |
Dn80 |
Dn65 |
YX425/1/6 |
18.5 |
10 |
1440 |
Dn80 |
Dn65 |
YX430/1/2 |
22 |
15 |
1440 |
Dn80 |
Dn65 |
YX430/1/4 |
22 |
15 |
1440 |
Dn80 |
Dn65 |
YX430/1/6 |
22 |
15 |
1440 |
Dn80 |
Dn65 |
YX450/1/2 |
37 |
15 |
1440 |
Dn150 |
Dn125 |
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
We can offer one-stop service for customers, which is product formula, raw material, packing material etc.
