Specifications
Cosmetic machine Rotor Pump1 Material: AISI304, AISI316L
2 polished inside out side
3 Capacity:1.5-60T/H
4 Pump head:14m

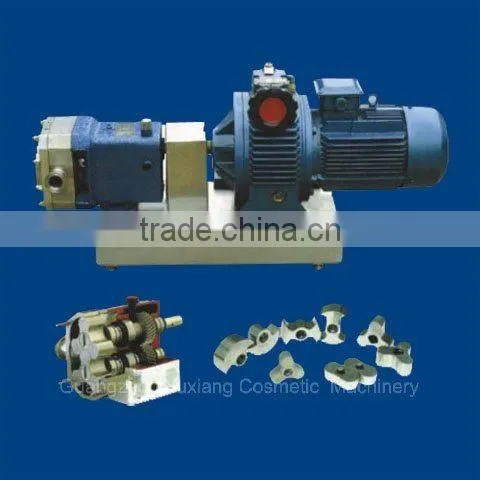

Cosmetic machine Rotor Pump
|
Rotor pump is also named rotary lobe epump, three-lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d, then housing A,B and II are interlinked and the medium is transported to the outlet. As this process is repeated,medium(material)is transpor-ted continuously
|
|||||||||||
Machine’s Advantage:
Butterfly rotor pump:
with butterfly rotor,it is superior to other rotor pump when transferring material with high viscosity and largerpowder and effectively transports extremely stiff material.
Single butterfly curved rotor pump(powder rotor pump):
this pump series are specially design to transport material with larger powder.Its unique shape and curve makes it more outstanding compared to other pumps in delivering material withlarger powders.It effectively prevents powders from clashing,which is the top choice of pumps transferring material with powders
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CNF.
