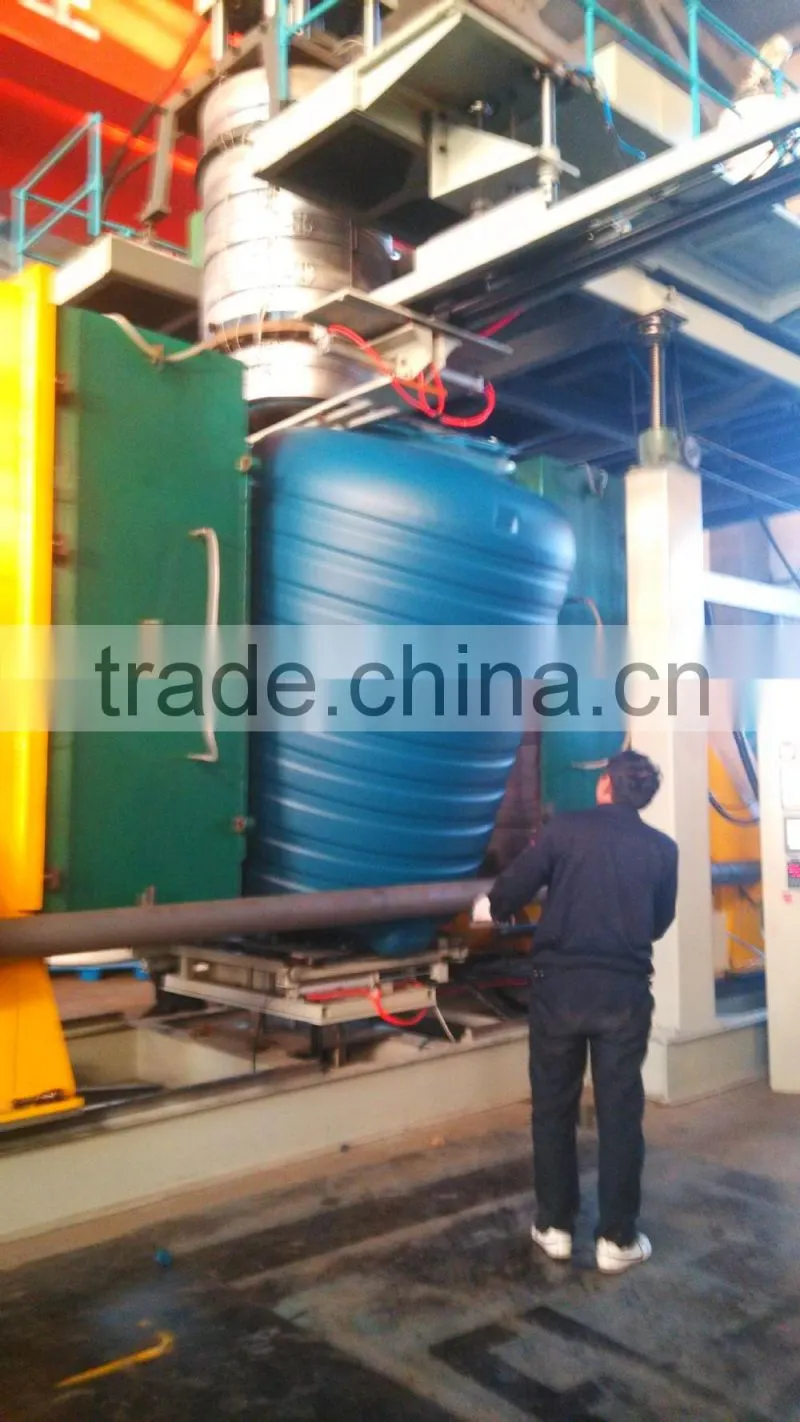

water plastic tank machine blow moulding machine
1.MACHINE
2. Plastic production for blow moulding machine:
3.Product Detail:
a..extrusion system
screw: specially designed based on material’s trait, High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2
barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2
drive mode: inverter + hard gear surface decelerator;
heating mode: porcelain heaters
temperature controlling: automatic temperature control model
Mode of cooling: automatic fan cooler.
b. die head system
central incoming die head, totally eliminating the converging line of products, the surface is colorful and uniform; this die head is able to be used to match polyethylene, polypropylene and PVC and so on;
heating mode: stainless steel heater
temperature controlling: temperature controlling model
C.hydraulic system :
adopted proportional pressure controlling, with hydraulic valve of YUken Japan and pump of Taiwan Sensor, balanced and accurate action, prolonged useful life, sensitive response.
D. electric controlling system :
Adopt JAPAN Mitsubishi PLC to control the action program of the whole machine; adopt winview touch screen for communication, parameter setting, modification and picture display; every parameter could be set and modified directly with the complete obstacle self-diagnosing function, menu operated directly and conveniently.
4.Main Unit
5.payment:
Terms:30% by TT as advanced,70% by TT before shipment.
6. manufacture equipment:
1) Technology:who are specialized filed of designing plastic machines more 20 years ,assure the precision.
2) Ten sets parallel lathe and other lathes: make big accessories by ourselves.
2) High-precision machines from Germany.
3) Automatic digital laser cutter: all precision and erose board are dealing with it.
4) Steel structure is stable and it has long lifetime to keep the precision of parts .
5)In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 20-35%.
