3-phase 110BYG350C Microstep Stepper Motor

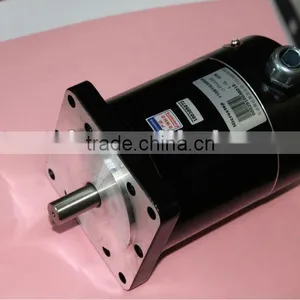

3-phase 110BYG350C Microstep Stepper Motor thumbnail-1

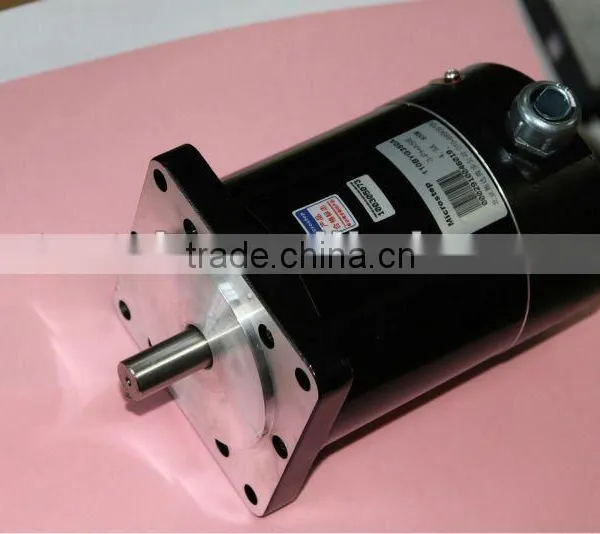

3-phase 110BYG350C Microstep Stepper Motor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Microstep & Startshaphon
Model Number:
110BYG350C
Contact Supplier Request Quote Chat Now
Beijing Flourishing Start Control Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Shanghai Shenzhen etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Microstep & Startshaphon
Model Number 110BYG350C
Phase 3
Type Hybrid
Certification ISO
Holding Torque 18Nm
Current / Phase 5.2A

Specifications

1.leading manufacturer of motor & driver in China
2.famous trademark of "Microstep" & "Startshaphon" since 1992 in the world

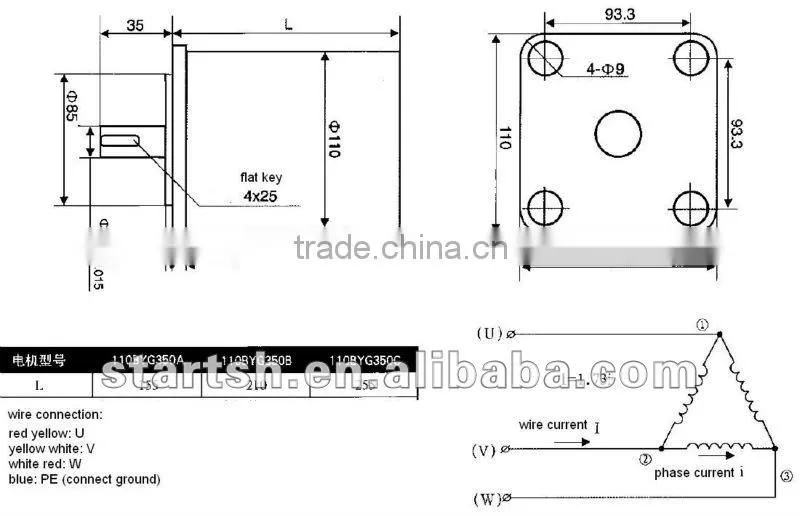

110BYG350C

working environment:

 -25 °C ~ +55 °C, 10~85%  no dewing, no  corrosivity, non-flammable and non-explosive, no electrical conductivity gas or liquid, no metal dust

insulation resistance: 500V DC 100MΩ Min

axial clearance: 0.1~0.3mm

radial run-out: 0.02mm max.

temperature rise: 85 °C  max.

insulation strength: B











Model



Type



Current



Driving
Power

Max.

Static
Torque



Line

Resistance



Line
Inductance



Weight

Max.
No-load

Starting
Speed



Matching
Drivers

110BYG350A

3-phase
hybrid





5.2A



AC220V

8Nm

2Ω

15mH

6.2kg

270 rpm

MS-3H110M

MSa-3H110M

TD-3H522A

110BYG350B

12Nm

1.5Ω

16mH

8.3kg

240 rpm

110BYG350C

18Nm

1.5Ω

20mH

10.7kg

210 rpm
