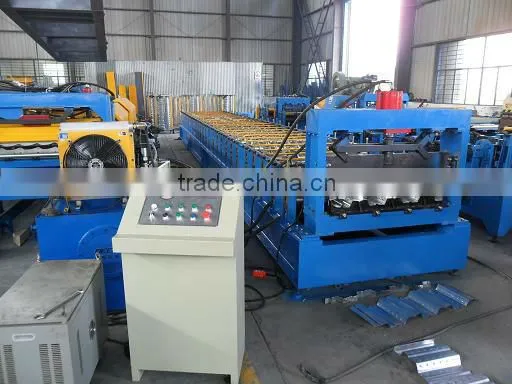

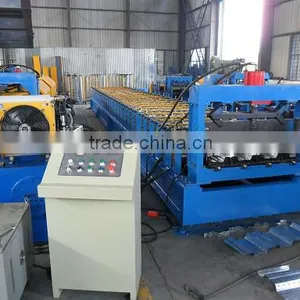

Help CenterSteel Floor Decking Forming Machine/metal Deck Floor Covering Machine
Related Products
-
Floor Deck Roll Forming Machine/steel Decking Forming Machine/metal Decking Forming MachineUS$ 30,000 - 600,000MOQ: 1 Set -
C Z U LIP Channel STEEL Purlin Foming MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Roof Tile Ridge Cap Tile Roll Forming MachineUS$ 15,000 - 35,000MOQ: 1 Set
-
Roller Shutter Door Machine/roller Door Machine/shutter Door MachneUS$ 10,000 - 30,000MOQ: 1 Set
-
Hydraulic Hose Crimping Tool/bending Machine /curving MachineUS$ 10,000 - 20,000MOQ: 1 Set
Specifications
1.Forming Speed:12M/min2.Steel Thickness:0.7-1.2mm
2.Usage:Used As The Steel Floors In Construction
Material Spec Galvanized steel sheet at stress 33KSI;
Thickness: 0.8mm to 1.2 mm
Width: 1250mm
Working Speed 10 ~ 12 m/min
Cutting Tolerance ≤±2.5mm ( length≤ 5000mm)
≤±3mm ( 5000mm < length ≤ 10000mm)
Power Requirement Main motor power: 18.5Kw
Hydraulic station power: 4Kw
Passive Uncoiler Max. Capacity: 5000kgs
Main roller about 29 stands
Type of cutting Roll-formed and length-set cutting
Machine Dimension About 26000×1400×1400mm
Material of Main Equipment
Roller MaterialHigh grade No.45 forged steel, with digital-controlled procession,
Panted with hard chrome.
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade Cr12 mould steel with quenched treatment
Component and Function
Coil Feeding Equipment Consists of one un-powered uncoiler with capacity of 5000kgs and its base. The steel sheet is manually fed to the guiding equipment under the function of friction and traction
Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.
Mainframe Transmission Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.
Lubricating roller The roller covered with soft material, the oil is absorbed in the soft material, when the steel coil pass, the oil will paste on it.
Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool.
Pressing equipment: After formed the shape of the tile panel, pressing the tile panel with pressing equipment which ensures the shape lasting and more beautiful.
Post Cut Equipment The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting.
Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
PLC Control Panel The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.
Supporter Table To support the finished panels. The quantity we supply is 2 pieces with length 2000mm, it can support panels with 10000mm at normal condition.
Working Flow
Uncoiling the sheet Sheet guiding Lubrication Roll forming
Measure length Cutting the panel panel come out
Standard Equipment of Machine
Un-powered Uncoiler 1pc
Guiding Equipment 1set
Lubricating roller 1pc
Roll Forming Equipment 1set
Post Cut Equipment 1set
Hydraulic Station 1pc
PLC Control Panel 1pc
Supporter Table 2pcs
