Specifications

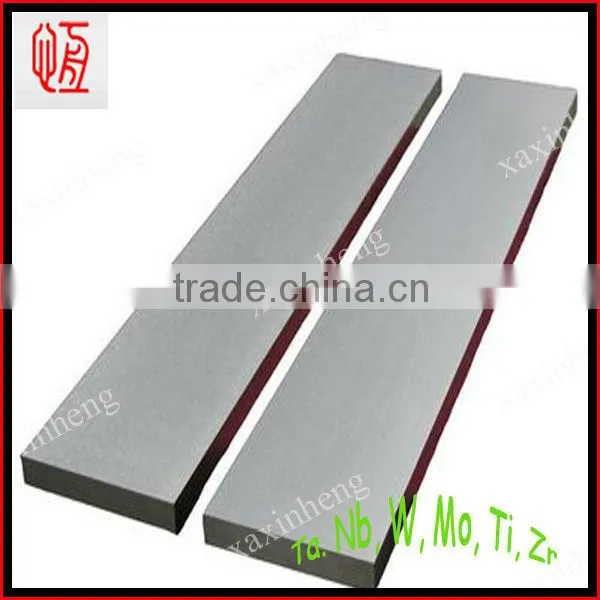

tungsten plate1.Good thermal stability
2.High quality, workability
3.Timely delivery as your requirements.
1. Grade:W1 W2
2. Purity :W1 > =99.95% W2 > =99.92%
3. Characteristic:
Melting Point: 3410 Degrees Celsius
Boiling Point: 5927 Degrees Celsius
Density: 19.3g/cm3
4. Certificate: ISO9002
5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion.
6. Dimensions and tolerance(According to clients’ requirements):
Tungsten Plate [mm] | |||||||
thickness |
tol |
width |
tol |
length |
tol |
quality |
flatness in % |
1.000 |
+/- 0.200 |
500.0 |
+/- 1.20 |
1000 |
+5/-0 |
hot rolled, pickled |
20 |
1.500 |
+/- 0.250 |
500.0 |
+/- 1.70 |
1000 |
+5/-0 |
hot rolled, pickled |
20 |
2.000 |
+/- 0.250 |
500.0 |
+/- 1.70 |
1000 |
+5/-0 |
hot rolled, pickled |
25 |
3.000 |
+/- 0.300 |
300.0 |
+/- 1.70 |
800 |
+5/-0 |
hot rolled, pickled |
25 |
4.000 |
+/- 0.200 |
200.0 |
+/- 1.70 |
600 |
+5/-0 |
hot rolled, pickled |
25 |
5.000 |
+/- 0.200 |
200.0 |
+/- 1.70 |
550 |
+5/-0 |
hot rolled, pickled |
25 |
7. Application:
1).for producing tungsten targets
2).for producing ion implantation parts
3).for rolling tungsten foil and punching tungsten discs
4).for producing electric light source parts and electric vacuum components
5).for producing heating elements and refractors in high temperature furnaces
6).for producing W-boats, and heating units in high temperature furnaces
