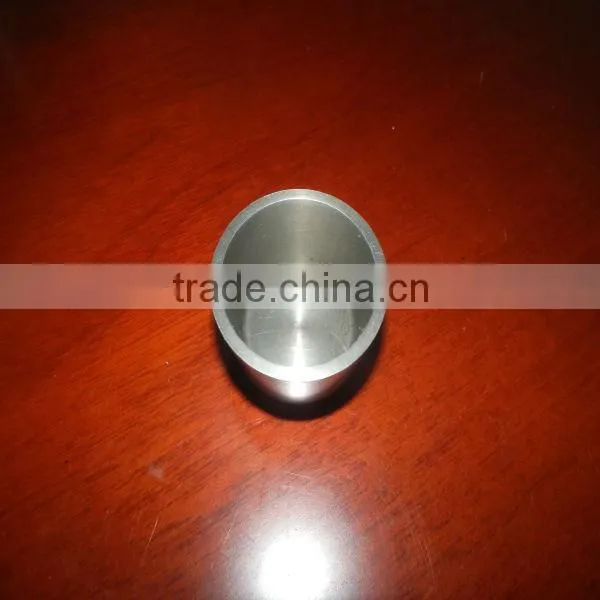

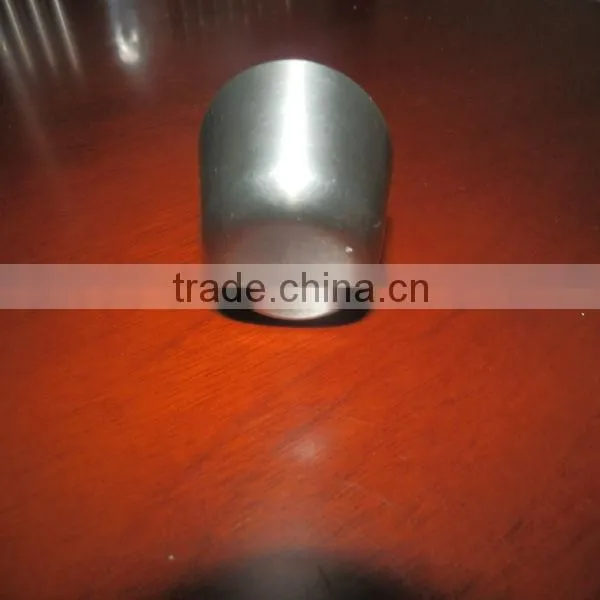

Help CenterPure Tungsten Crucible for Sapphire Ingot Grower
Related Products
-
High Density 99.95% Tungsten Crucible,tungsten CupNegotiableMOQ: 1 Piece -
High Purity W1 99.95% Round Tungsten BarUS$ 1 - 1MOQ: 1 Piece
-
99.95% High Quality Various Dimensions Tungsten Tube, Tungsten PipeUS$ 60 - 150MOQ: 1 Kilogram
-
High Purity Tungsten Filament Heating TubeUS$ 60 - 120MOQ: 1 Kilogram
-
Good Price Quality Crucibles for Melting SteelUS$ 1 - 200MOQ: 1 Kilogram
Specifications
tungsten crucible1.Over 10 years experience in the industry.
2.High purity: purity>99.95%
3.Quality certification:ISO9001
tungsten crucible
1Grade: W1, W2, WAL1, WAL2, WAL3
2. Purity: W≥99.95%
3.Characteristic:
Melting Point: 3410 DC
Boiling Point:5927 DC
Density: 18.5 - 19.3 g/cm3
Size:OD:50-150mm;
Height:50-200mm ;
4.Certificate: ISO9001:2008
5. Product Feature: high-purity, high-density, no internal-crack.
6. Dimensions and tolerance(According to clients’ requirements
Delivery |
Specification |
Tolerance |
Thickness |
Roughness |
|||
Diameter |
Height |
Diameter |
Height |
||||
Sintering |
10~500 |
10~750 |
+/-5.0 |
+/-5.0 |
8~20 |
<3.5 |
|
Sintering |
10~450 |
10~550 |
+/-0.5 |
+/-0.5 |
7~18 |
<2.5 |
|
7. Application:
Since the melting point of tungsten has reached 3410°C, tungsten crucible is widely applied in industry furnace such as sapphire growth furnace, quartz glass melting furnace, and reare earth smelting furnace. The temperature in working environment of tungsten crucible is above 2000°C. For sapphire crystal growth furnace, high-purity, high-density, no internal-crack tungsten crucible with other features of exact measurement and smooth inner surface has decisive influence on success ratio of seed growth, quality control of pulling crystal, metamictization pot-committed and service life during sapphire growth process.
