Specifications of 24v dc motor 3000rpm:
micro gear motor
1, Operating Voltage: .1.5V-13V
2 Reduction Ratio: 45,75
3, Typical application: Sex Machine, Sex toys
We can send samples first, then you can check our quality.
| Model | Reduction Ratio | ||||||||||||
| Voltage | No Load | At Maximun Efficiency | Stall | ||||||||||
| Using Range | The Rated | ||||||||||||
| Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||||
| r/min | mA | r/min | mA | g.cm | W | g.cm | A | ||||||
| P03-R28-45 | 3.0~7.0V | 6.0V | 198 | 184 | 165 | 925 | 889 | 1.50 | 5358 | 4.65 | 45 | ||
| P03-R28-75 | 3.0~10.0V | 9.0V | 119 | 193 | 99 | 951 | 1004 | 1.01 | 5953 | 4.69 | 75 | ||
| P03-R28-75 | 3.0~13.0V | 12.0V | 119 | 170 | 100 | 894 | 951 | 0.97 | 5953 | 4.70 | 75 | ||

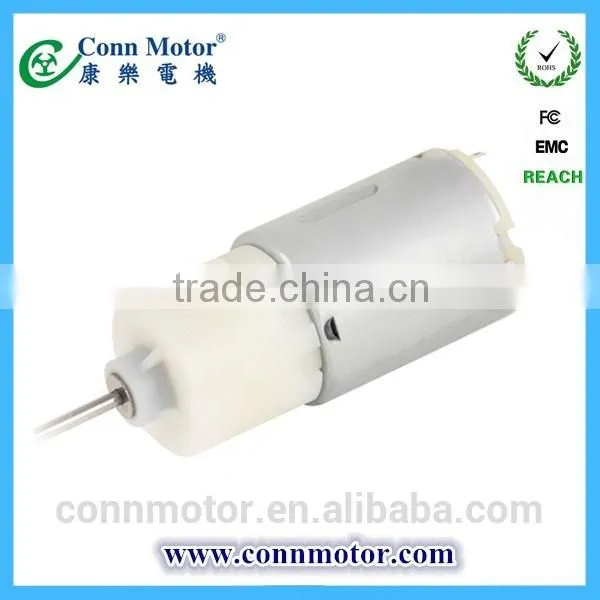

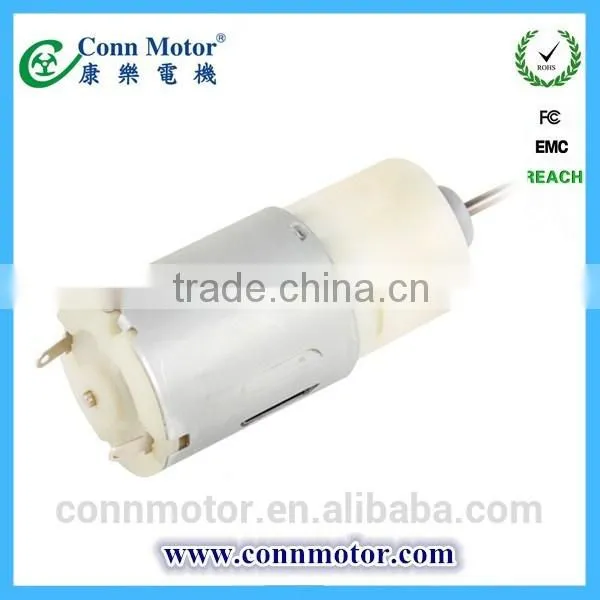

Pictures of 24v dc motor 3000rpm:
Working principle of Gearxbox
Gearbox is used to transfer rotation and torque from motor to working machine,the function is
to decrease speed by gears and increase torque.

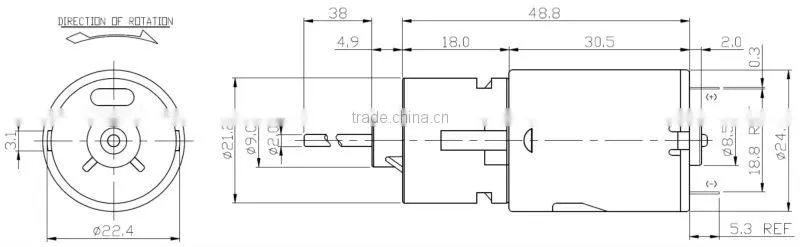

Outline Drawing

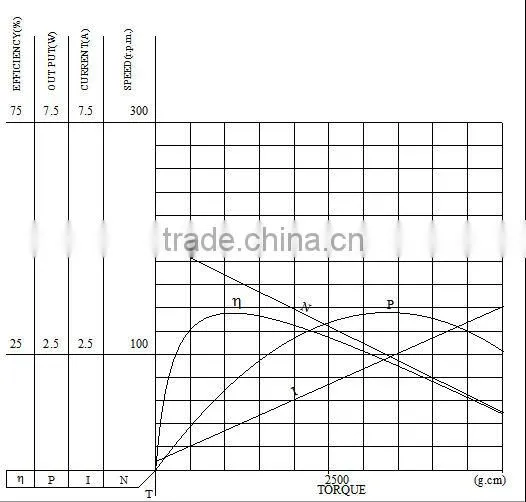

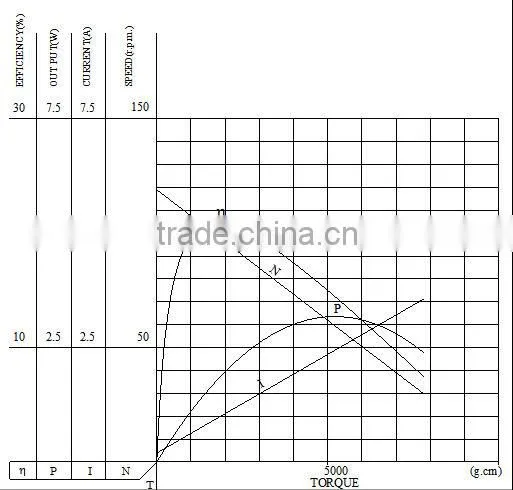

Performance Curve
P03-R28-45 6.0V
P03-R28-75 9.0V
Typical Application
Our range of products are usually utilized by the purposes below:
Sports/Fitness equipment: treadmills, magnetic drive bikes, and products with related purposes.
Health care equipment: massaging machines, massaging chairs, vibrated massaging machines,
hospital beds, adjustable spine lumbar supporting equipment, and
rehabilitation treatment machines.
Home Appliance: air fresheners, automatic floor cleaner, and electric cradles.
Various machines: automatic vending machines, food processors, wrapping machines, stage
revolving machines, electric pumping machines, rewinding machines,
and coffee machines.
Furniture: computer tables, electric mahjong tables, electric grid iron supports, motorized curtain,
and automatic blinds.
Security equipment: warning lights, anti-theft electronic locks, safety equipment, and sirens/alarms.
Arcade machines: arcade game machines.
Vehicle: electric scooters, and electric bicycles
Constructions: roller shutter doors.
Robots: robotic arms, and robots.
Tools: power tools.
Factory use: conveyors.
Others: instruments, satellite antennas, card readers, automatic flock feeders, teaching equipment,
automatic valves, paper shredders, parking equipment, ball dispensers,
cosmetics & cleaning products, and motorized displays.
About us
Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality of
products provided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates
are granted to our products (depending on each product). We also have many intellectual copyrights.
We seek for value co-creation with our customers.
Welcome to have a cooperation with us.
Work flow
Customized Capability
If your requirements are not on our lists provided below, we are able to design, adjust,
and manufacture the motors according to your requirements.
Motor Voltage Range : 1 to 220V DC as needed
Motor Speed Range: as customer's needed
Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.
Motor rotation can be CW or CCW
Any question, we would response quickly!
