Help CenterNewly Discount Gear Reducer 24v dc Motor
Related Products
-
Low Price Economic Small Electric 24v dc MotorUS$ 1 - 5MOQ: 500 Pieces -
Newly Best Quality 24v/10a dc Motor ControllerUS$ 1 - 5MOQ: 500 Pieces
-
2015 Wholesale Nice Looking dc Motor Low Rpm 24v GearboxUS$ 0.5 - 1MOQ: 1000 Pieces
-
Cheap Price Custom Discount China 24v dc MotorsUS$ 1 - 5MOQ: 500 Pieces
-
2015 Hot New Fast Delivery Brush dc Motor 360 24vUS$ 3 - 5MOQ: 500 Pieces
| Model | |||||||||||||
| Voltage | No Load | At Maximun Efficiency | Stall | ||||||||||
| Using Range | The rated | ||||||||||||
| Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||||
| r/min | mA | r/min | mA | g.cm | w | g.cm | A | ||||||
| RE260A-2670-38 | 1.5~4.5V | 3.0V | 12300 | 200 | 10202 | 973 | 15.35 | 1.61 | 90.0 | 4.73 | |||
| RE260A-18130-38 | 1.5~4.5V | 3.0V | 6900 | 95 | 5474 | 365 | 9.92 | 0.56 | 48.0 | 1.40 | |||
| RC260B-2670-38 | 3.0~6.0V | 4.5V | 13800 | 250 | 11566 | 1294 | 27.52 | 3.26 | 170.0 | 6.70 | |||
| RC260B-2295-38 | 3.0~6.0V | 4.5V | 10100 | 150 | 8444 | 765 | 22.30 | 1.93 | 136.0 | 3.90 | |||

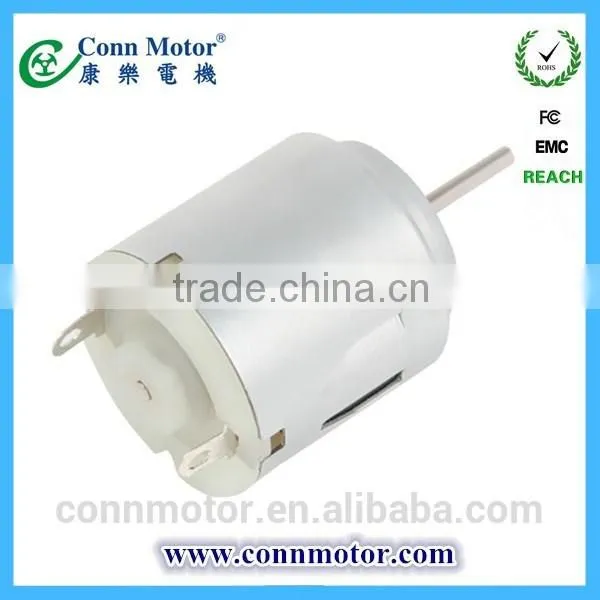

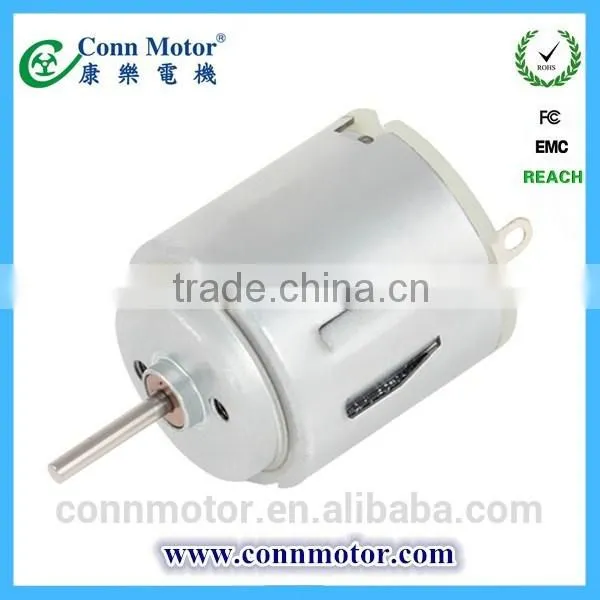

Pictures of gear reducer 24v dc motor:

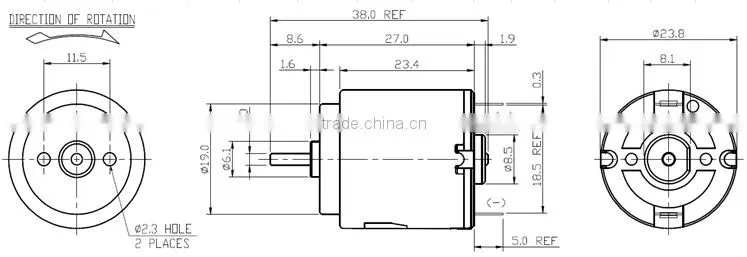

Outline Drawing

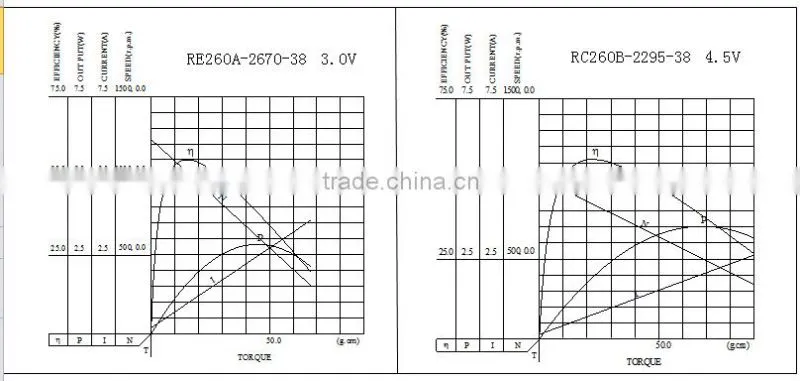

Performance Curve
Typical Application
Toys, The Moulds, Household Applications
Our range of products are usually utilized by the purposes below:
Sports/Fitness equipment:
Health care equipment
Home Appliance:
Various machines:
Furnitur, Security equipment, Arcade machines, Vehicle, Constructions, Robots,
power tools, Factory use
Others: instruments, satellite antennas, card readers, automatic flock feeders, teaching equipment,
automatic valves, paper shredders, parking equipment, ball dispensers,
cosmetics & cleaning products, and motorized displays.
Products Series
About us
Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality of
products provided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates
are granted to our products (depending on each product). We also have many intellectual copyrights.
We seek for value co-creation with our customers.
Welcome to have a cooperation with us.
Our Team
Work flow
Some Equipments&Devices
Customized Capability
If your requirements are not on our lists provided below, we are able to design, adjust,
and manufacture the motors according to your requirements.
Motor Voltage Range : 1 to 220V DC as needed
Motor Speed Range: as customer's needed
Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.
Motor rotation can be CW or CCW
Any question, pls contact us freely!
