Specifications
HDPE / PP Drainage Cell ,Sub-surface Modular Drainage Cell
HDPE / PP Drainage Cell ,Sub-surface Modular Drainage Cell

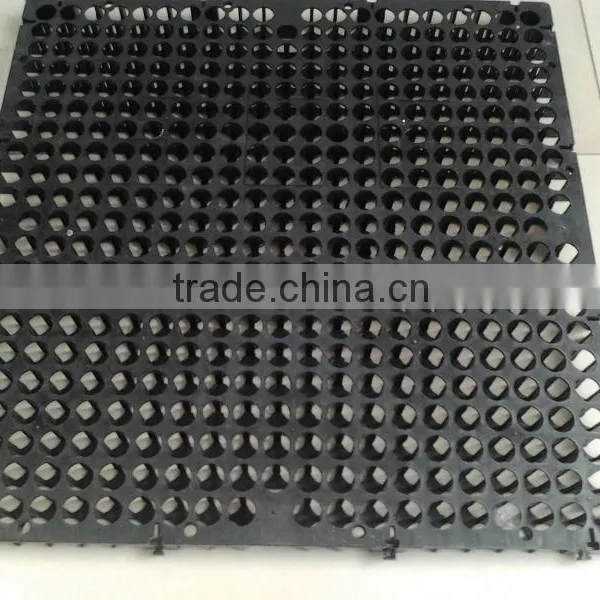

Sub-surface Modular Drainage Cell Description
Sub-surface Modular Drainage Cell is a lightweight three dimensional geo-composite used for subsurface water management. The drainage cell polypropylene core is moulded into a unique profile and then wrapped in a filtration geotextile which then provides a complete void space for the water to travel horizontally without any obstruction. It is lightweight, high compressive strength makes the product ideal for roof garden & podium landscaping, retaining walls., sports fields &golf courses, under drains for slabs and foundations and subsurface drainage for permeable driveways and car parks.
Sub-surface Modular Drainage Cell Features
Light weight and efficient to install
Low construction cost and simple maintenance
100% Recycling
Sub-surface Modular Drainage Cell Specification
Products Name: |
Drainage Cell |
Item No: |
JH-30 |
Size: |
500*500*30mm ,333X333X30mm,or size can be made according to your need |
Material: |
HDPE(high density polyethylene) and Polypropylene |
Thickness: |
30MM |
Tensile loading: |
>1000kpa |
Drain capacity: |
25----30cm³/s |
Storing capacity |
2.6----4.0l/m² |
Surface Void Area : |
>67% |
Internal Void Area |
>95% |
Biological/Chemical Resistance |
Unaffected by moulds and algae and good resistance to oils ,acids ,alkalis and bitumen |
Service Temperature |
-20°C to 120°C |
Size can be made according to your need,For further information,pls contact me directly.
