Help CenterNew Products Hot Selling Low Voltage 6v Micro dc Motor
Related Products
-
China Manufacture Hot Sale Promotion Kitchen Appliance Micro dc MotorUS$ 0.35 - 0.5MOQ: 1000 Pieces -
Cost Price Quality Micro dc Motor Linear Actuator PriceUS$ 2.3 - 5MOQ: 500 Pieces
-
Professional Manufacturer First Grade 1.5v 3v Low Speed Small Micro dc MotorUS$ 3.2 - 4MOQ: 500 Pieces
-
Cost Price Hotsell 50000rpm Dental Micro dc MotorUS$ 0.3 - 1MOQ: 5000 Pieces
-
New Coming Hot-sale Micro dc Motor for Tape Recorder/vcrUS$ 1 - 5MOQ: 500 Pieces
| Model | Reduction Ratio | ||||||||||||
| Voltage | No Load | At Maximun Efficiency | Stall | ||||||||||
| Using Range | The Rated | ||||||||||||
| Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||||
| r/min | mA | r/min | mA | g.cm | W | g.cm | A | ||||||
| LS010-R14-3.5 | 1.5~5.0V | 4.5V | 1700 | 200 | 1221 | 510 | 56 | 0.71 | 200 | 1.30 | 3.5 | ||
| LS010-R14-4.9 | 1.5~5.0V | 4.5V | 1270 | 220 | 900 | 535 | 76 | 0.70 | 260 | 1.30 | 4.9 | ||
Pictures of low voltage 6v micro dc motor:

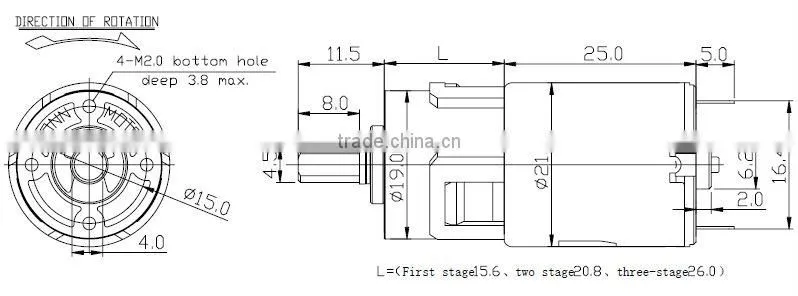

Outline Drawing

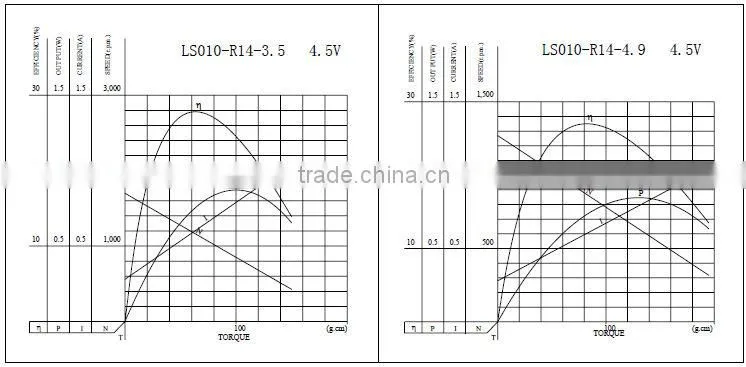

Performance Curve
Typical Application
The robot, The Moulds, Household Applications
Our range of products are usually utilized by the purposes below:
Sports/Fitness equipment:
Health care equipment
Home Appliance:
Various machines:
Furnitur, Security equipment, Arcade machines, Vehicle, Constructions, Robots,
power tools, Factory use
Others: instruments, satellite antennas, card readers, automatic flock feeders, teaching equipment,
automatic valves, paper shredders, parking equipment, ball dispensers,
cosmetics & cleaning products, and motorized displays.
Products Series
About us
Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality of
products provided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates
are granted to our products (depending on each product). We also have many intellectual copyrights.
We seek for value co-creation with our customers.
Welcome to have a cooperation with us.
Our Team
Work flow
Some Equipments&Devices
Customized Capability
If your requirements are not on our lists provided below, we are able to design, adjust,
and manufacture the motors according to your requirements.
Motor Voltage Range : 1 to 220V DC as needed
Motor Speed Range: as customer's needed
Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.
Motor rotation can be CW or CCW
Any question, pls contact us freely!
