Specifications
(1)Test bench EPT-H(2)High measurement precision
(3)Good quality and competitive price

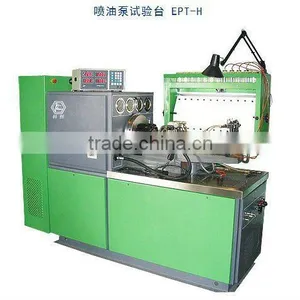

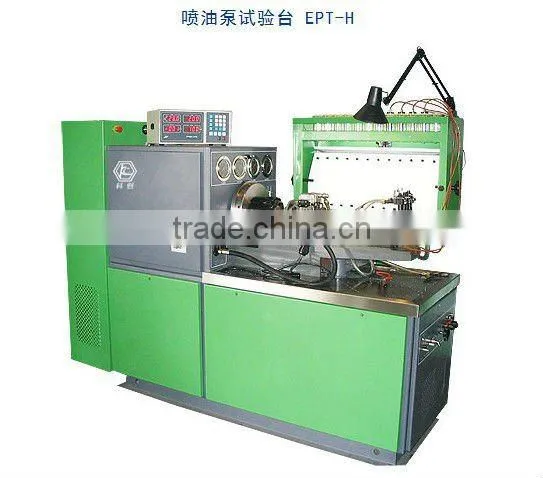

EPT-H Diesel Fuel Injection Pump Test Bench Fission Type
Characteristics
Changing frequency changing rotation speed;
Small fall of rotation speed and large output torque;
High measurement precision;
The functions of overvoltage,overload and short circuit protection;
Ten kinds of rotation speeds presetting;
Constant temperature controlled;
Ultra low noise;
Operating position:arbitrary side of the two work sides of the test stand;
Rotation speed,count,temperature,and air pressure are displayded in digits mode.
Functions
Measurement of each cylinder`s delivery at various rotation speeds;
Checking of each cylinder`s injection time with static state;
Checking of the mechanical speed governors;
Checking of the electricmagnetic valve of distrbutor pumps;
Checking performance of the pneumatic governors;
Checking of the pressure compensators(LDA);
Measurement of the reflux delivery of distributor pumps;
Measurement of the internal pressure of the distribu-tor pumps body; Checkong of the sealing of fuel injection pump body.
Tecnnical Paramenters
Adjustable rotation speed range:0~4000RPM;
Double Series of graduates:45CC1500CC
Volume of oil tank:60L;
Temperature stabilization:40±2
Test oil filtering unit:5μ
D.C.Supply:12V/24V;
Feed pressure:low:0~0.4Mpa,high:0~4Mpa;
Air pressure:0~0.3Mpa;
3-phase power supply:380V/50HZ or on request;
Flywheel inertia`s moment:0.8KG.M2
Center height:125MM;
Output power:5.5KW7.5KW.11KWand 15KW or on re-quest;
Overall dimensions(MM)1600×960×1750;
Net weight(KG):1300.
