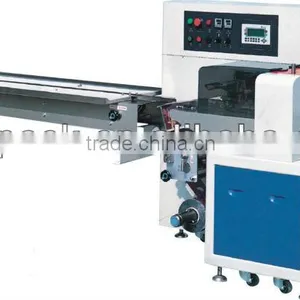

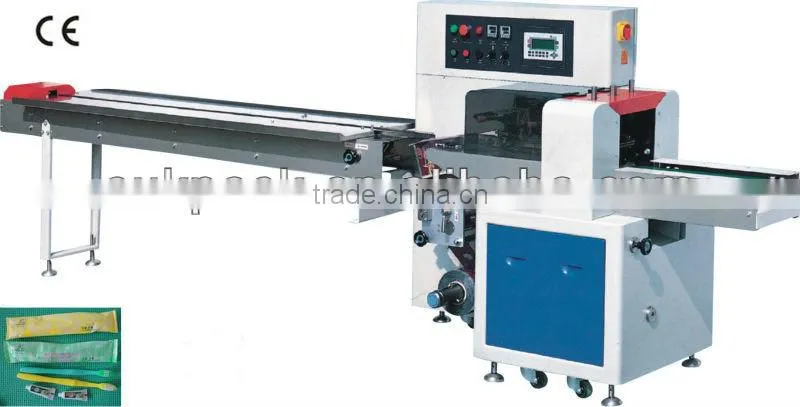

Help CenterAutomatic Toothpaste Horizontal Packing Machine SZ-250X
Related Products
-
Pallet Packaging Machine/Equipment Supplier SZ-350WUS$ 5,000 - 8,000MOQ: 1 Piece -
SZ-350D Computer Dual Frequency Conversion ControlUS$ 3,700 - 5,700MOQ: 1 Set
-
Film Bag Packing Machine SZ-400BUS$ 5,200 - 8,000MOQ: 1 Set
-
Automatic Hardware Appliance Packing Machine SZ-350XUS$ 5,100 - 6,900MOQ: 1 Set
-
Raincoat Packing MachineUS$ 4,300 - 6,300MOQ: 1 Set
Specifications
Specifications:1. easy to operate
2. high quility ang good price
3. CE certificate
Detailes of Automatic Toothpaste Horizontal Packing Machine SZ-250X:
1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.
2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive.Fully implement the humanized automatic operation.
3. Digital fault self-diagnosis function.Fault diagnosis is clear at a glance
4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.
5. Highly sensitive photoelectric device tracks automatically and accurately.
6. Positioning stop function without sticking knife, cutting and wasting envelope.
7.Double frequency contracted mechanical structure with less worn, easy maintenance and long life.
8. The temperature of each seal is independent. PID control is suitable to various packaging materials. Position stop function, no adhesive and no waste of membrane.
9. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
Application
Be applicable for packaging of solid and regular products like biscuit, moon cake, candy, insulating tape, wet tissues, paper tissues, cartoon, mosquito-repellent incense and Chinese date.
Technical parameters(down-paper pillow packing machine):
| Modle | SZ-250X | SZ-350X | SZ-450X | SZ-600X |
| Film Width | Max.250mm | Max.350mm | Max.450mm | Max.600mm |
| Bag Length | 65-190 or 120-280mm | 65-190 or 120-330mm | 120-450mm | 200-600mm |
| Bag Width | 30-110mm | 50-160mm | 50-210mm | 180-280mm |
| Product High | Max.40mm | Max.60mm | Max.80mm | Max.110mm |
| Packing Speed | 40-230bag/min | 40-230bag/min | 40-230bag/min | 15-100bag/min |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.8W | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
| Machine size | 3920X670X1320 | 4020X720X1320 | 4020X820X1320 | 4020X820X1320 |
| Machine wight | 800KG | 900KG | 1050KG | 1150KG |
Electric detailed list:
No. |
Product Name |
Brand |
1 |
PLC |
Panasonic/Japan |
2 |
INVERTER |
Schneider |
3 |
7 inchTouch screen |
Wei Lun/Taiwan |
4 |
Intermediate Relay |
OMRON |
5 |
Switching power |
Meanwell/Taiwan |
6 |
solid state relay |
Schneider |
7 |
Temperature controller |
Yatai/Shanghai |
8 |
Photoelectricity colour code |
Aiset |
Quality Control:
Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.
Basic Service:
1.Technical support
2.Loading inform
3.Video for debugging
4.Customer's require is welcome
5. Free training, Free 1 year warranty
