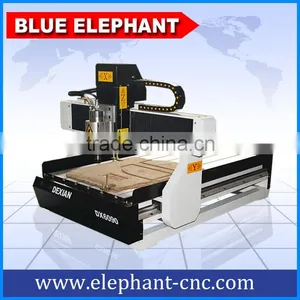

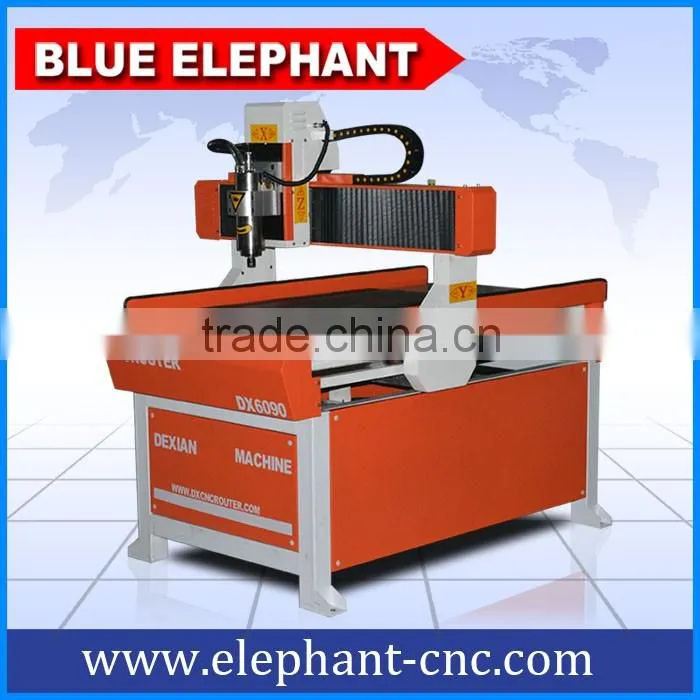

Factory supplier 2200w water cooled spindle motor 6090 4 axis USB2.0 port woodworking cnc router kit, cnc wood router for sale
According to your working area, machine could be customized.
We have 300x400mm, 400x400mm, 400x600mm, 600x600mm, 600x900mm, or bigger.
Features
This machine is specially designed for making musical instrument like: valine, guitar etc.
It can also be used for working on aluminum, wood, acrylic.etc.
1. Cast iron structure very heavy and stable, Net weight 200kgs.
2. Taiwan TBI ballscrew, makes the machine with high working accuracy.
3. Desk top model, small size, esay to move, you can put it on the desk.
4. 2.2kw water cooling spindle, big power, very strong. It can cut very thick materials.
Technical Parameters
Model |
DX-6090 |
X Y working area |
600 x 900 mm |
Feeding height |
130 mm |
Structure |
Aluminum casting structure. Gantry moving type |
Movement parts |
X and Y axis --- 2510 ball screw , Z ----1605 ball screw |
X and Y axis ---SBR25 round rails, Z ---16 round shaft | |
Motor |
X and Y ---86BYG450A , Z ---57BYG76 |
Driver |
Stepper driver : brand -YAKO |
Spindle power |
2.2kw water cooling |
Working Speed |
0-4000mm/min |

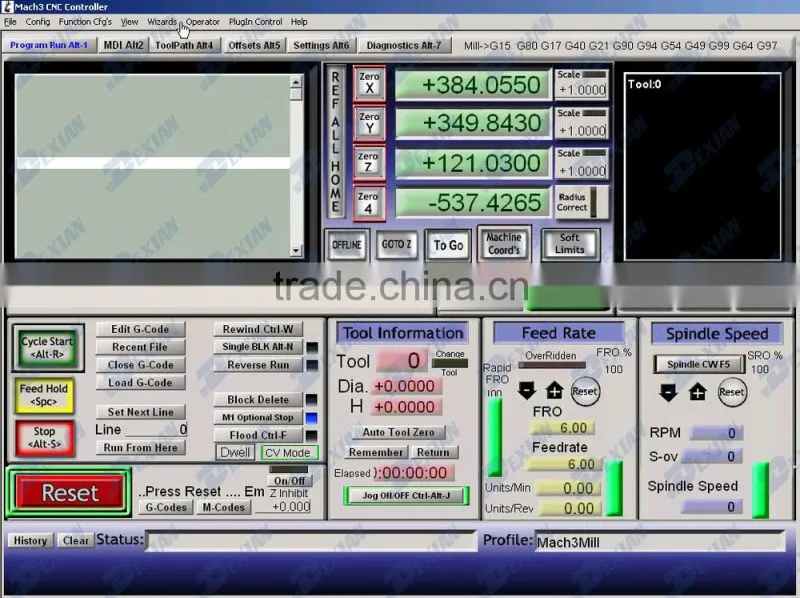

Control system |
mach3 (USB) |
Command code |
HPGL, G code |
Working precision |
0.05mm/300mm |
Repeatability |
0.01 mm |
Power |
AC220V±10% / 50~60Hz |
Compatible Software |
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc |
Tool bits shank |
3.175-6mm |

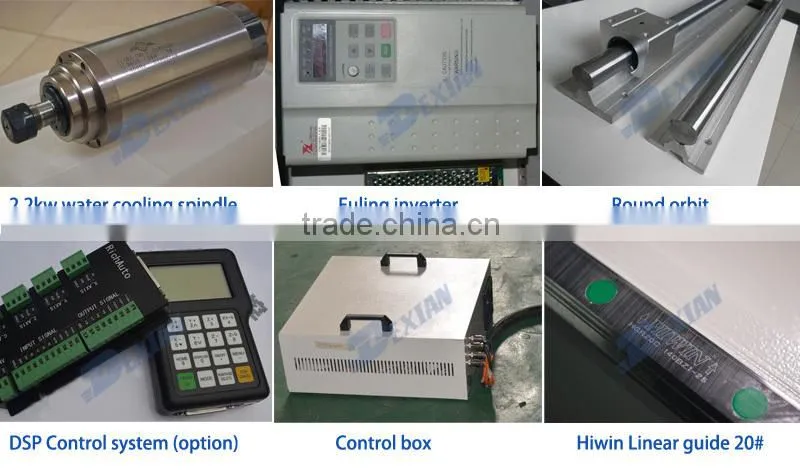

Details
Applications
1. Mold industry: various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.
2. Instrument industry 3-d surface engraving and shape cutting of large-scale instruments
3. Sign, plastics, wood, molds, etc
4. Furniture, general woodworking manufacturing
Samples
Our Factory
Jinan Dexian Machine Co.,Ltd
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in this month!
Guaranty
1.One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk is included.
Looking for agents and wholesale from all over the world!
Any questions,please feel free to contact me !
