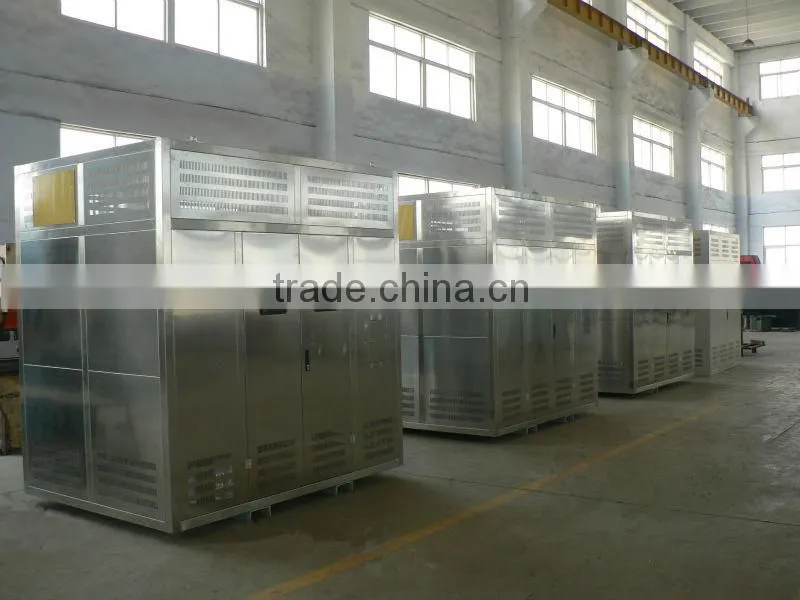

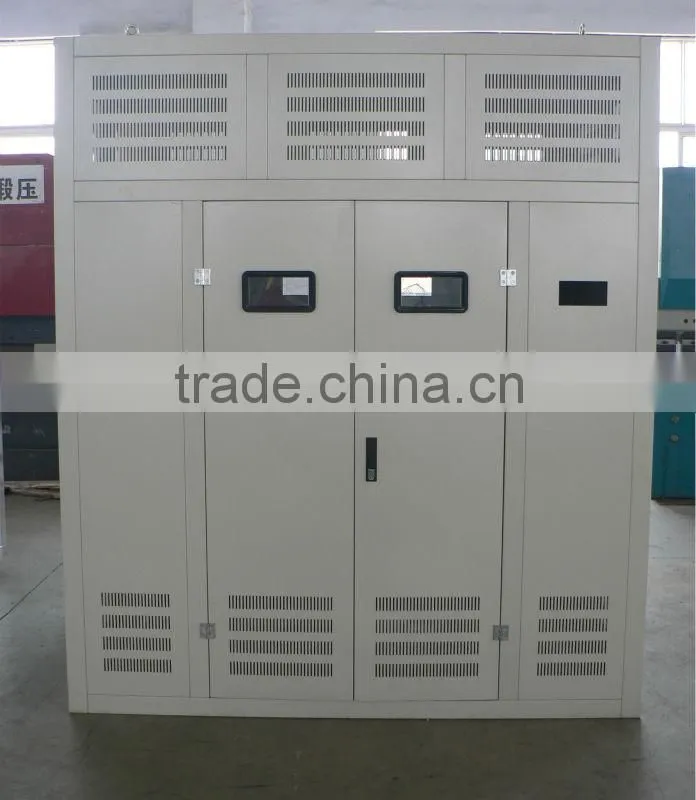

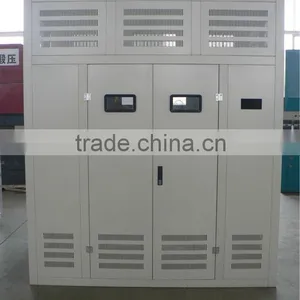

Help CenterDry Type Transformer Shell
Related Products
-
Power Distribution Cabinet for Transformer in ChinaNegotiableMOQ: 20 Sets -
Power Distribution Cabinet for TransformerNegotiableMOQ: 20 Sets
-
Power,Furnace,Rectifier Transformer ManufactureUS$ 12 - 20MOQ: 2 Sets
-
Power Transformer Silicon Body PartsNegotiableMOQ: 20 Sets
-
250kva Three Phase Oil Immersed Power Transformer ManufactureNegotiableMOQ: 1 Set
Specifications
All kinds of power distribution cabinet, good quality and best cost performance. Made by your special speciafications...dry type transformer shell
- About us---- Elolam Group :
Elolam Group,initiated and established by Shandong Elolam Electric Power Technology
Company,is the short of Elolam Electric Group.

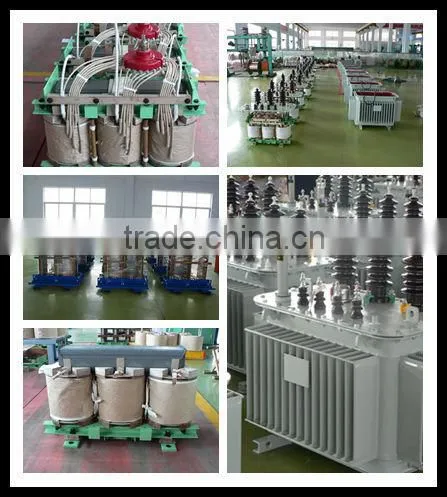

Elolam Group is in the business of designing, producing and selling of high magnetic
oriented silicon steel,fold iron steel ,roll iron steel,cable ,transformer ,and switch.
Eloam aims to provide all-round comprehensive supporting services for the large
power companies.
Eloalm Group successively established transformer manufacturing enterprises and
selling companies in the form of joint venture or cooperation in Africa,East, south
and west of Asia countries and regions .
Eloam Group therefore become a real multinational group enterprise in the power
transmission and transformation supporting industry.
Elolam Group annual meeting in 2013
- Elolam Group tranformer tank product description:

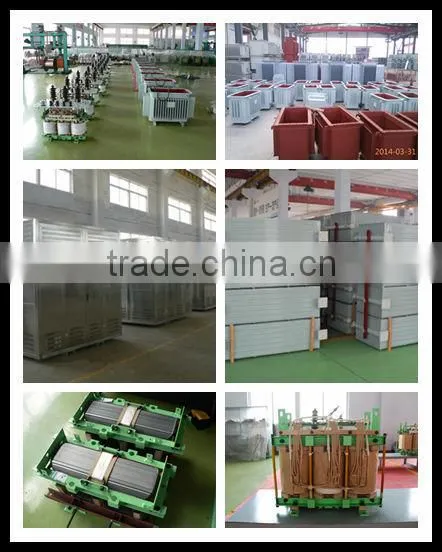

Transformer tank with corrugated walls:Tanks with corrugated walls and conservators
are tight welded and produced according to customer 's design and relevant welding
standards by experienced welders. Leak tightness tests are carried out by means of
penetrometer under pressure by using of penetration liquid.
- Detailed transformer tank technical data:
Capacity (kVA) |
Voltage |
Connection group |
No-load loss (W) |
Load loss (W) (75°C) |
Impedance voltage (%) |
No-load current (%) |
Gross Weight (kg) |
Dimension L*W*H (mm) |
||
High (kV) |
Tapping range (%) |
Low (kV) |
||||||||
30 |
20 |
±5%,±2×2.5% |
0.4 |
Yyn0 Dyn11 |
90 |
630 |
5.5 |
1.7 |
500 |
700*650*900 |
50 |
120 |
910 |
1.9 |
600 |
730*690*950 |
|||||
80 |
170 |
1300 |
1.7 |
700 |
770*720*1000 |
|||||
100 |
190 |
1570 |
1.5 |
750 |
820*715*1030 |
|||||
125 |
230 |
1880 |
1.4 |
820 |
1005*635*1045 |
|||||
160 |
270 |
2300 |
1.3 |
855 |
1080*690*1095 |
|||||
200 |
320 |
2720 |
1.2 |
1050 |
1230*815*1110 |
|||||
250 |
380 |
3180 |
1.1 |
1090 |
1260*825*1160 |
|||||
315 |
460 |
3810 |
1 |
1280 |
1270*830*1205 |
|||||
400 |
540 |
4500 |
0.9 |
1455 |
1385*895*1260 |
|||||
500 |
650 |
5380 |
0.9 |
1850 |
1435*945*1300 |
|||||
630 |
770 |
6480 |
6 |
0.8 |
2135 |
1560*1015*1335 |
||||
800 |
930 |
7840 |
0.7 |
2550 |
1625*1060*1400 |
|||||
1000 |
1090 |
10760 |
0.6 |
2700 |
1800*1200*1700 |
|||||
1250 |
129 |
12540 |
0.5 |
3000 |
1820*1265*1580 |
|||||
1600 |
1560 |
15150 |
0.5 |
3400 |
1860*1290*1730 |
|||||
2000 |
1850 |
18180 |
0.5 |
4050 |
1950*1290*1900 |
|||||
2500 |
2220 |
21100 |
0.5 |
5500 |
2190*2450*2500 |
|||||
- Trade Terms:
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Qindao Port, Tianjin Port , Ningbo Port and Shanghai Port
3. Delivery time:10-30 days according to order quantities.
4.Minimum order quantity: 5 tons
