Help CenterWhite Triad Electrical Rocker Switch,square Amount Panel 2pin Rocker Switch
Related Products
-
Triad Electrical Rocker Switch With Light,led Illuminated Rocker SwitchNegotiableMOQ: 1000 Pieces -
Two Way Reset Rocker Switch (on)-off-(on),electronic Power Rocker SwitchNegotiableMOQ: 1000 Pieces
-
Lit Window Switch,automotive Electrical Rocker Switch,carling Rocker SwitchNegotiableMOQ: 3000 Pieces
-
Lit Window Rocker Switch for Automobiles,white Cap Rocker SwitchNegotiableMOQ: 5000 Pieces
-
Mini Round Pannel Rocker Switch,IP65 Waterproof 4p Locked Rocker SwitchNegotiableMOQ: 500 Pieces
Rating of the triad electrical rocker switch :
- The contact resistance :≤ 50mΩ
- Withstand Voltage:1500V,AC/MIN
- Insulation Resistance:≥100mΩ
- Dielectric intensity:≥1500V AC/MIN
- Rated Load :16/20A 250V AC
- Temperature -25~85.c
- Mechanic life :≥10000times
Rocker switch features:
Nylon frames and actuator(UL flame:94V-2)
Brass with sliver plated terminals
PC illuminated actuator,available with red,amber,and green colors
Snap-in mounting,easy install in panel
Waterproof cover is optional

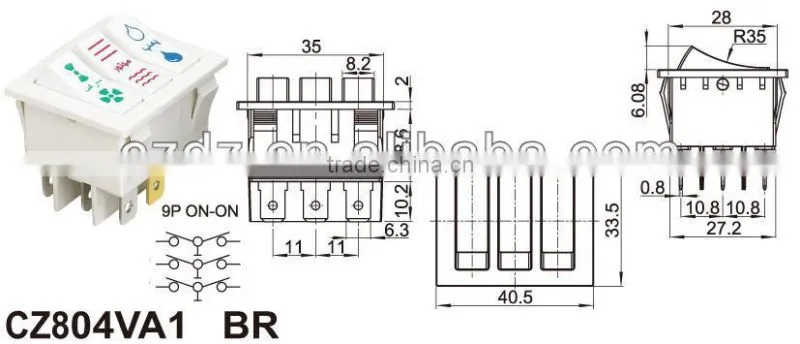

Rocker switch dimention:
About us :Yueqing Chuangzhan Electronics Co.,Ltd is a professional manufacture of rocker switch. We can offer OEM/ ODM sevices. We make the moulds and the moulded parts by ourselves to ensure the switch quality and reduce cost. We can supply with different standard rocker switch to meet different customers' demands.
With reliable quality assurance, prefect technical services and the best price, our products are sold well worldwide. With strong support from you, we can't stop the step of development and innovation. We bring in advanced equipment and technology in and out of China.
About rocker switch :The rocker switches available in both illuminated and non-illuminated versions, are designed to snap into the panel.
Application: Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc.
About quality control: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life.
About brand: We have our own brand "ZJCZ" , and also , we can design the brand for our clients.
About Certificate: our company has passed ISO9001: 2008, and the rocker switches have passed TUV,CE and have ROHS test reports , VDE and UL is in examing and verifying ~
