Hydraulic Bending machine model WC67Y-160/3200 NC89
Features
1. Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by Ezy-Set NC-89 Go-To Programmable digital controller assuring accurate repeatability.
2. Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.

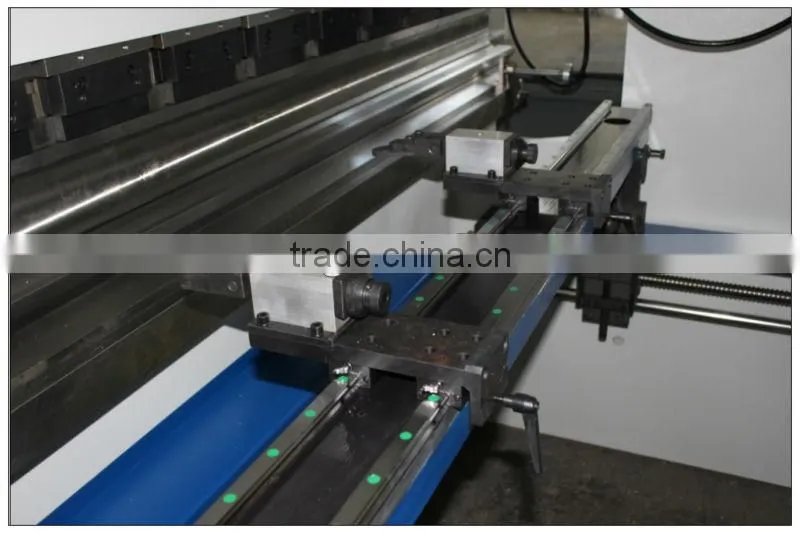

3.Ezy-Set NC-89 Go-To Programmable ballscrew backgauge with adjustable height finger stops.
4.Segmented heavy duty 35° offset top punch is segmented for return bend clearance, complete with
5.European style quick release punch holder with an adjustable wedge clamping system for crowning.
6.Intermediate clamp has safety key to stop punch dropping.
7. Multi vee ('V') bottom die is made from one 3200mm solid die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.

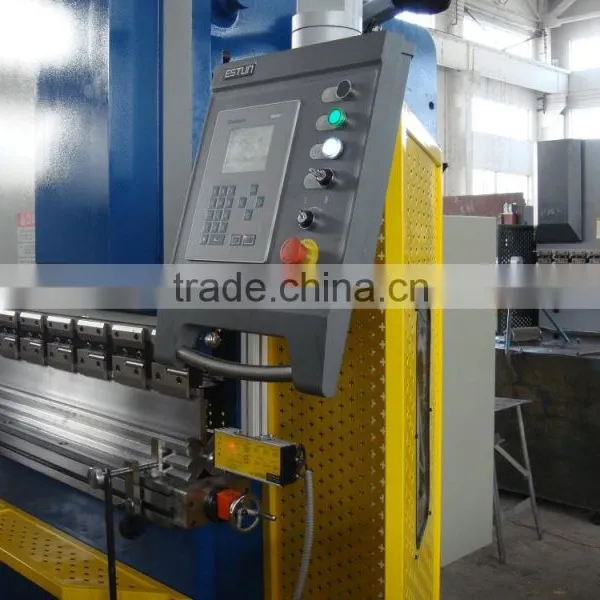

8.Conveniently mounted control box on pendant for quick swivel and adjustments.
9. Mono-lock steel frame design, welded then machined to ensure minimal bed deflection under load
10.Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
11. European quick release style top punch and clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.
12. Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed; sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
13. Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point. Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
14.Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety. Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation. MetalMaster specially design gates to suit Australian safety requirements.
15. Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
16.Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
17.The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.
Paramater

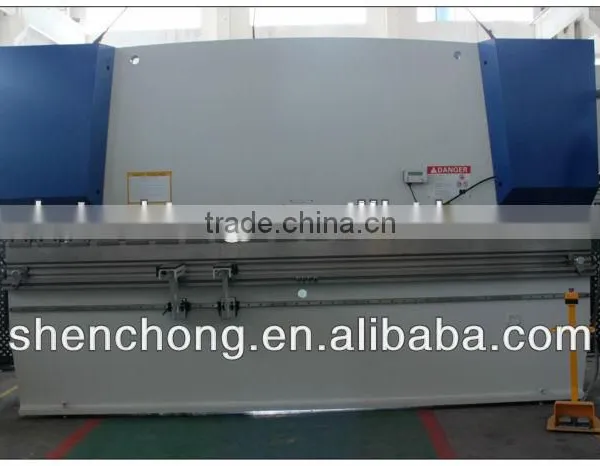

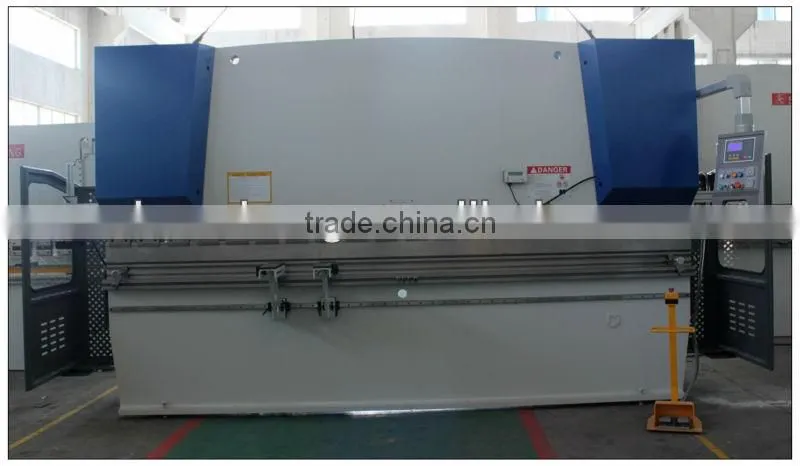

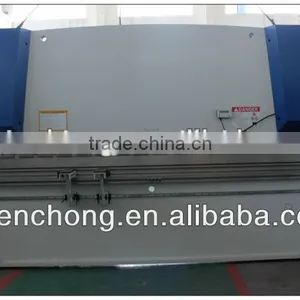

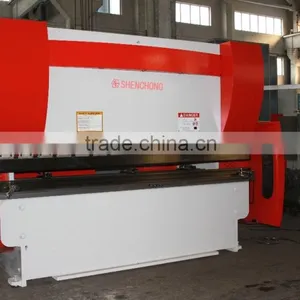

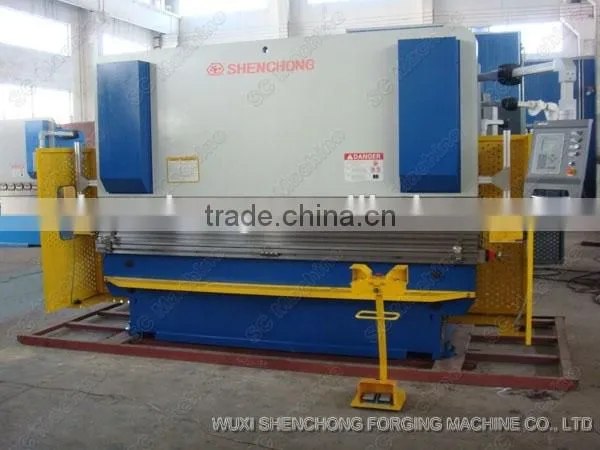

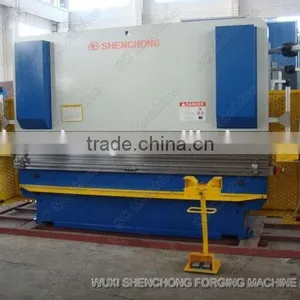

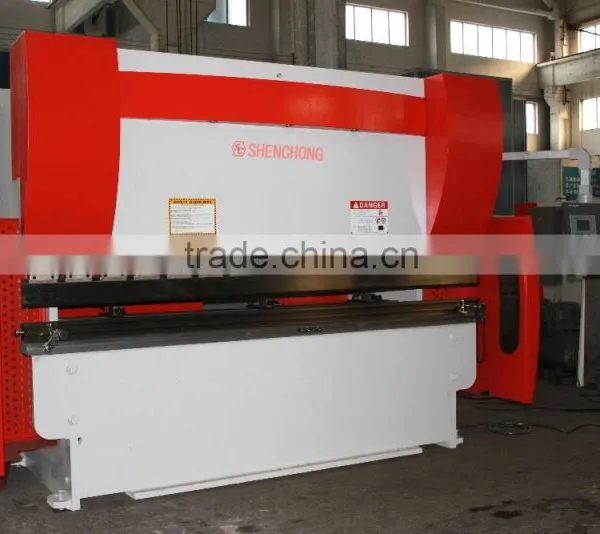

Machine photo
Our certificate

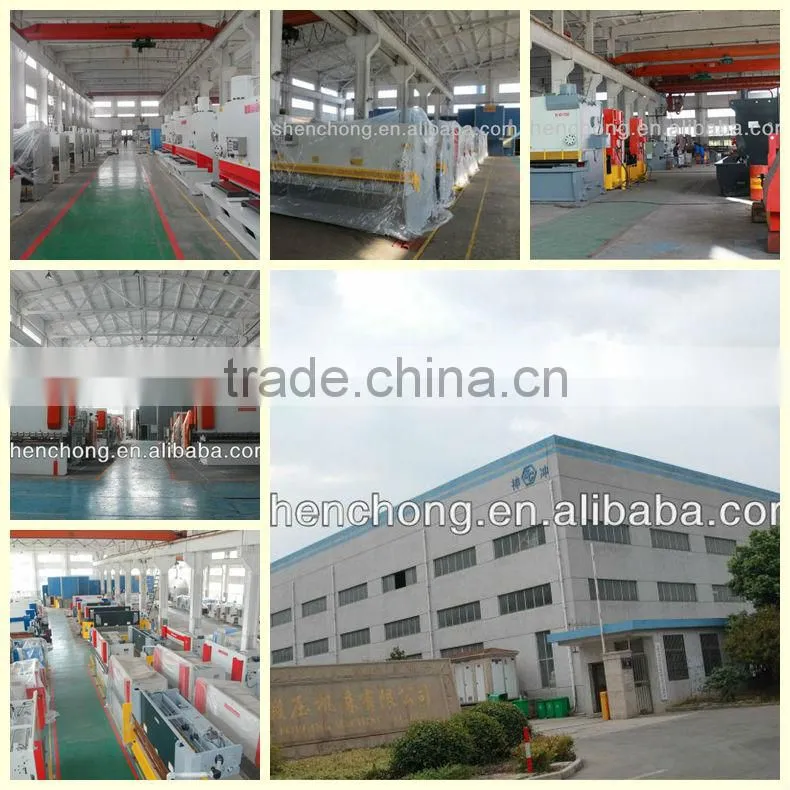

Our workshop
Machine packing
Our exhibition
If you are interested in our hydraulic bending machines, feel free to contact with me.
Francy Skype: scmachine86 Cell: +86-15190308001
