BW-B2D Thermal protector, thermal switch, bimetal thermostat, motor thermal protector,thermal switch,bimetal thermal switch,motor thermal protector,motor protector, resettable thermal fuse, bimetal switch,lighting thermal protector,thermal protector for fan motor,bimetal thermal protector,thermal overload protector,thermal overload protector switch, overload switch, thermal cutoff switch, thermal cutout switch, motor protection thermal switch, thermal cutoff, thermal cutoff fuse, thermal cutoff switch, thermal cutout switch, bimetal temperature switch, bimetal thermostat switch

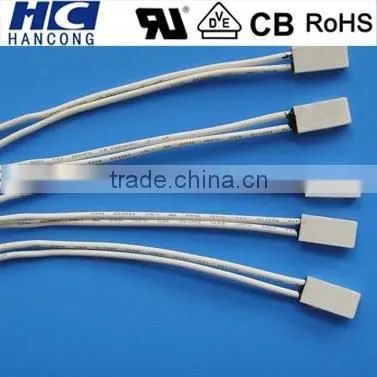

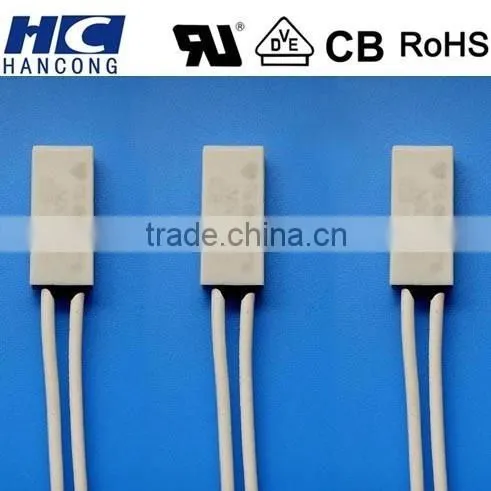

Plastic shell, Snap action thermal protector , automatic reset type with UL,VDE, CB, CCC , Rohs compliant
Work principle:
BW-A1D thermal protector is a temperature automatic response devide and is connected in series to the winding of motor. The contacts open on temperature rise and reset after the temperature drops down.
Application:
A1D series thermal protectors are devices for protecting against overload and over temperature. They are usually used for AC 220v /50Hz one phase motors to protect motor from over temperature caused by unusual state such as overload, blocked up. They are also used for protecting against over temperature & temperature control in lighting appliance, heater, fluorescent ballast, IC etc.
Main features:
Snap action, normal closed, auto reset
Contact rating: 10A/125VAC; 6A/250VAC; 10A/24VDC
Thermal switch dimension: 15X7.3X3.9mm / 18X8.0X4.0mm
Open Temperature: 50C to 155C, in 5C increasement
Tolerance for open temperature: +/-5C
Cable:Stardard:AWG20 silicon cable or AWG#22 UL3326 PE cable, 70mm long, special requests accepted
Approval: UL,VDE, CQC,CB, Rohs compliant
Advantage:Good quality, good price, prompt delivery guaranteed.
Cutoff temperature table:(reset temperature for reference)
| Model | Open temperture | Reset temperture | Model | Open temperture | Reset temperture |
| B2D-50℃ | 50±5℃ | 35±6℃ | B2D-105℃ | 105±5℃ | 70±15℃ |
| B2D-55℃ | 55±5℃ | 35±7℃ | B2D-110℃ | 110±5℃ | 75±15℃ |
| B2D-60℃ | 60±5℃ | 40±10℃ | B2D-115℃ | 115±5℃ | 75±15℃ |
| B2D-65℃ | 65±5℃ | 45±10℃ | B2D-120℃ | 120±5℃ | 80±15℃ |
| B2D-70℃ | 70±5℃ | 45±10℃ | B2D-125℃ | 125±5℃ | 85±15℃ |
| B2D-75℃ | 75±5℃ | 50±15℃ | B2D-130℃ | 130±5℃ | 85±15℃ |
| B2D-80℃ | 80±5℃ | 55±15℃ | B2D-135℃ | 135±5℃ | 90±15℃ |
| B2D-85℃ | 85±5℃ | 55±15℃ | B2D-140℃ | 140±5℃ | 95±15℃ |
| B2D-90℃ | 90±5℃ | 60±15℃ | B2D-145℃ | 145±5℃ | 95±15℃ |
| B2D-95℃ | 95±5℃ | 65±15℃ | B2D-150℃ | 150±5℃ | 100±15℃ |
| B2D-100℃ | 100±5℃ | 65±15℃ | B2D-155℃ | 155±5℃ | 105±15℃ |

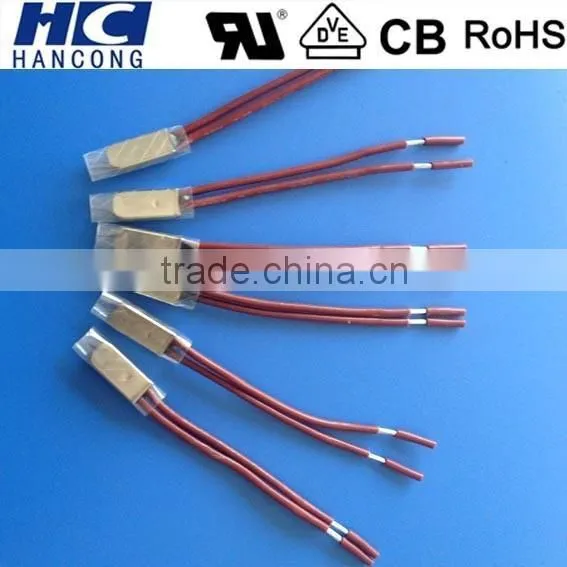

Dimension: with leadwire and with insulation sleeve, the cable and length can be made according to customer's request:
15X6.5X3.1mm with 70mm cable, special requests for the cable acceptable
Ultimate Tripping Current Vs Ambient Temperature ( for reference only)
There is also other models for your choices, pls click here:
https://img13.fr-trading.com/productgrouplist-200009953/Thermal_protector_thermal_switch.html
