BW-A1D Thermal protector, thermal switch, bimetal thermal switch , motor thermal protector, thermal overload protector , bimetal thermal protector, thermal cutoff, bimetal thermostat, resettable thermal fuse, bimetal switch, bimetal thermostat switch, thermal protector, thermal switch, motor thermal protector
Snap action thermal protector , automatic reset type with UL,VDE, CB, CCC , Rohs compliant
Work principle:
BW-A1D thermal protector is a temperature automatic response devide and is connected in series to the winding of motor. The contacts open on temperature rise and reset after the temperature drops down.
Application:
A1D series thermal protectors are devices for protecting against overload and over temperature. They are usually used for AC 220v /50Hz one phase motors to protect motor from over temperature caused by unusual state such as overload, blocked up. They are also used for protecting against over temperature & temperature control in lighting appliance, heater, fluorescent ballast, IC etc.
Main features:
Snap action, normal closed, auto reset
Contact rating: 10A/125VAC; 6A/250VAC; 10A/24VDC
Thermal switch dimension: 15X6.5X3.1mm
Open Temperature: 50C to 155C, in 5C increasement
Tolerance for open temperature: +/-5C
Cable:Stardard:AWG20 silicon cable or AWG#22 UL3326 PE cable, 70mm long, special requests accepted
Approval: UL,VDE, CQC,CB, Rohs compliant
Advantage:Good quality, good price, prompt delivery guaranteed.
Cutoff temperature table:(reset temperature for reference)
| Model | Open temperture | Reset temperture | Model | Open temperture | Reset temperture |
| A1D-50℃ | 50±5℃ | 35±6℃ | A1D-105℃ | 105±5℃ | 70±15℃ |
| A1D-55℃ | 55±5℃ | 35±7℃ | A1D-110℃ | 110±5℃ | 75±15℃ |
| A1D-60℃ | 60±5℃ | 40±10℃ | A1D-115℃ | 115±5℃ | 75±15℃ |
| A1D-65℃ | 65±5℃ | 45±10℃ | A1D-120℃ | 120±5℃ | 80±15℃ |
| A1D-70℃ | 70±5℃ | 45±10℃ | A1D-125℃ | 125±5℃ | 85±15℃ |
| A1D-75℃ | 75±5℃ | 50±15℃ | A1D-130℃ | 130±5℃ | 85±15℃ |
| A1D-80℃ | 80±5℃ | 55±15℃ | A1D-135℃ | 135±5℃ | 90±15℃ |
| A1D-85℃ | 85±5℃ | 55±15℃ | A1D-140℃ | 140±5℃ | 95±15℃ |
| A1D-90℃ | 90±5℃ | 60±15℃ | A1D-145℃ | 145±5℃ | 95±15℃ |
| A1D-95℃ | 95±5℃ | 65±15℃ | A1D-150℃ | 150±5℃ | 100±15℃ |
| A1D-100℃ | 100±5℃ | 65±15℃ | A1D-155℃ | 155±5℃ | 105±15℃ |

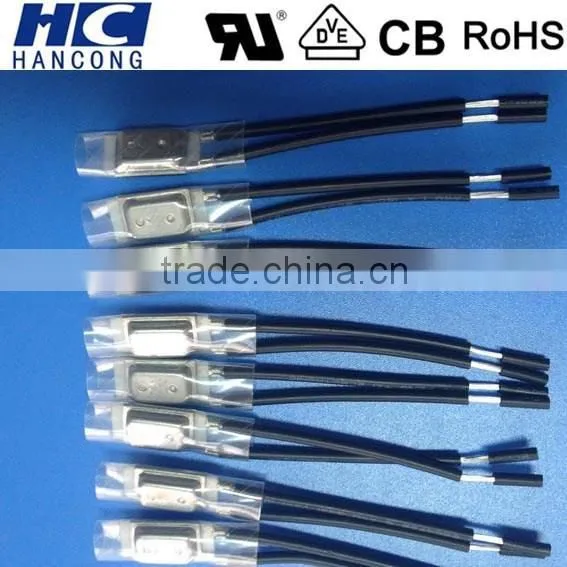

Dimension: with leadwire and with insulation sleeve, the cable and length can be made according to customer's request:
15X6.5X3.1mm with 70mm cable, special requests for the cable acceptable
Ultimate Tripping Current Vs Ambient Temperature ( for reference only)
There is also other models for your choices, pls click here:
https://img13.fr-trading.com/productgrouplist-200009953/Thermal_protector_thermal_switch.html
Storage Condition:
During the transport and storage, the packages can not be exposed to snows or rains, and should avoid strong force outside. It shouId be stored in a dry and ventilative warehouse.
Customers' special requests accepted. Pls contact us for more.
